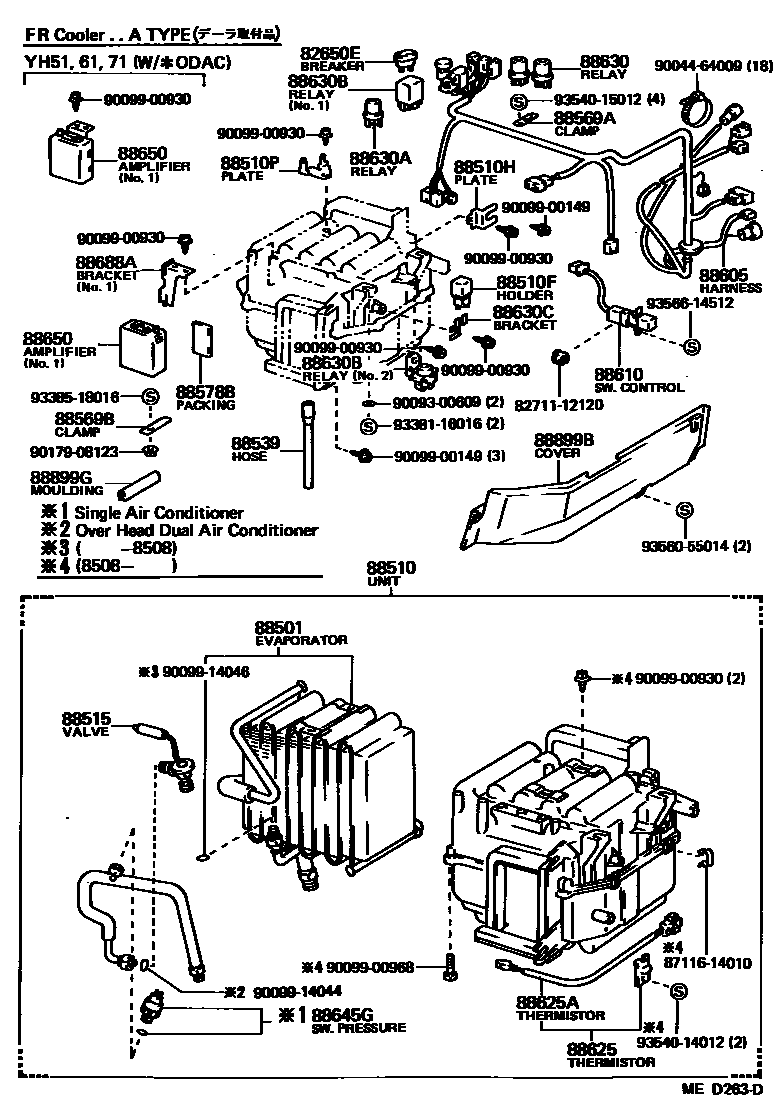

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-20011iLH50,51,6#,7#..08S,09S,10S,15S198212-198708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

FR

main88501-95J01iLH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S198212-198708

RR

main88501-95J04iLH51,61,71,YH5#,6#,71198508-198601

FR

main88501-95J08iLH51,6#,71,YH5#,6#,71198601-198708

FR

88510UNIT ASSY, COOLER

main88510-95J00iYH51..08S198212-198508

FR,B TYPE

main88510-95J01iLH5#..08S198212-198508

FR,B TYPE

main88510-95J03iLH5#,YH51..08S198212-198508

RR,B TYPE

main88510-95J07iLH5#,6#,7#,YH50,52,6#,71..V198212-198508

FR,A TYPE,W/SINGLE AIR CON.

main88510-95J08iLH5#,6#,7#,YH51,61,71..08S,09S,10S,15S198212-198508

FR,A TYPE,W/*ODAC

main88510-95J09iLH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

RR,A TYPE

main88510-95J27iLH51..08S198508-198608

FR,B TYPE

main88510-95J30iLH51,61,71,YH5#,6#,71..V198508-198610

FR,A TYPE,W/SINGLE AIR CON.

main88510-95J31iLH51,61,71,YH51,61,71..07S,08S,09S,10S,15S198508-198708

FR,A TYPE,W/*ODAC

main88510-95J49iLH51,YH51..08S198508-198708

RR,B TYPE

main88510-95J50iYH51..08S198508-198708

FR,B TYPE

main88510-95J51iLH51..08S198608-198708

FR,B TYPE

main88510-95J54iLH51,6#,71..V198610-198708

FR,A TYPE,W/SINGLE AIR CON.

88510FHOLDER, FUSE

main82630-95J00iYH51,61,71..07S,08S,09S,10S,15S198212-198708

main82630-95J01iLH61,71..09S198401-198508

W/*ODAC

main82630-95J02iLH50,51,60,61,7#..V198212-198708

W/SINGLE AIR CONDITIONER

main82630-95J03iLH61,71..09S,15S198508-198708

W/*ODAC

main88895-95J00iLH51,61,71..V..MTM198610

W/SINGLE AIR CONDITIONER

88510HPLATE, COOLER UNIT, NO.1

main88688-95J23iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88510PPLATE, COOLER UNIT, NO.2

main88688-95J32iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88515VALVE, COOLER EXPANSION

main88515-16030iLH50,51,6#,7#,YH5#,6#,71198212-198708

FR

main88515-95J00iLH5#,6#,7#,YH51,61,71..08S,09S,10S,15S198212-198508

RR

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95A03iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main88539-95J04iLH51,YH51..08S198405-198508

W/COOL BOX

88569ACLAMP, NO.1(FOR COOLER WIRING HARNESS)

main88569-32010×2iLH5#,YH51..08S198306-198508

W/COOL BOX

main88569-95J00×9iLH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

W/*ODAC

main88569-95J01×4iLH50,51,60,61,7#,YH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER

88569BCLAMP, NO.2(FOR COOLER WIRING HARNESS)

main88569-12030×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88578BPACKING, COOLING UNIT, NO.1

main88578-95703×7iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95J00iYH51,61..5H..(DLX,STD)198306-198410

FR,NO.1

main88605-95J01iLH50,60..WG198212-198306

FR,NO.1

main88605-95J03iLH5#,YH51..08S198212-198508

RR, B TYPE

main88605-95J04iYH61,71..09S,15S198212-198508

FR,W/*ODAC,NO.1

main88605-95J05iYH50,52,6#,71..V198212-198508

FR,W/SINGLEAIRCONDITIONER,NO.1

main88605-95J13iLH60,70..09S,15S198212-198401

FR,W/*ODAC,NO.1

main88605-95J14iLH50,51,60,61,7#..V198212-198708

FR,W/SINGLEAIRCONDITIONER,NO.1

main88605-95J16iLH5#,6#,7#,YH51,61,71..08S,09S,10S,15S198212-198508

RR,A TYPE

main88605-95J30iLH5#..08S198306-198405

FR,A TYPE,W/COOL BOX,NO.1

main88605-95J31iYH51..CTM,SCM198306-198410

FR,NO.1

main88605-95J32iLH5#..08S198306-198508

FR,B TYPE,NO.1

main88605-95J33iYH51..08S198306-198405

FR,W/COOL BOX,NO.1

main88605-95J34iLH61,71..09S,15S198401-198508

FR,W/*ODAC,NO.1

main88605-95J36iYH51..08S198405-198508

FR,W/COOL BOX,NO.1

main88605-95J37iLH51..08S198405-198508

FR,A TYPE,W/COOL BOX,NO.1

main88605-95J42iLH51,YH51..08S198508-198708

RR, B TYPE

main88605-95J43iLH51..07S198508-198708

FR,W/*ODAC & *AAC,NO.1

main88605-95J44iYH51..07S198508-198708

FR,W/*ODAC & *AAC,NO.1

main88605-95J45iLH51,YH51..07S198508-198708

RR,A TYPE,W/*AAC

main88605-95J53iYH61,71..09S,15S198508-198708

FR,W/*ODAC,NO.1

main88605-95J54iLH61,71..09S,15S198508-198708

FR,W/*ODAC,NO.1

main88605-95J55iLH51,61,YH51,61..WG198508-198708

RR,A TYPE

main88605-95J57iYH51,6#,71..V198508-198708

FR,W/SINGLEAIRCONDITIONER,NO.1

main88605-95J61iLH51..4FC..TD198508-198708

NO.2

88610SWITCH ASSY, COOLER CONTROL

main84660-95J00iLH51..5F..TD198508-198708

FR

main84660-95J06iLH51..4FC..TD198508-198708

FR

main88610-87003iLH5#,YH51..08S198306-198405

W/COOL BOX

main88610-87004iLH51,YH51..08S198405-198508

W/COOL BOX

main88610-95A04iLH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

RR

88625THERMISTOR, COOLER, NO.1

main88625-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

FR

main88625-95J01iLH5#,6#,7#,YH51,61,71..08S,09S,10S,15S198212-198508

RR

88625ATHERMISTOR, COOLER NO.2

main88625-90A00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88630RELAY ASSY, COOLER

main88630-95702×3iLH5#,YH51..08S198306-198508

W/COOL BOX

main90987-02004×2iLH66..08S198608-198708

COOLER

88630ARELAY ASSY, COOLER

main90987-03001×7iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88630BRELAY ASSY, COOLER

main85913-30020iLH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

NO.1

main88630-60020iLH61,71..09S,15S198401-198708

NO.2

88630CBRACKET, COOLER RELAY

main88688-95J31iLH50,51,60,61,7#; YH51,61,71..07S,08S,09S,10S,15S198212-198708

88645GSWITCH, PRESSURE

main88645-12020iLH5#,6#,7#,YH50,52,6#,71..V198212-198508

W/SINGLE AIR CONDITIONER

main88645-90D01iLH51,61,71,YH5#,6#,71..V198508-198708

W/SINGLE AIR CONDITIONER

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLH50,51,60,61,7#..V198212-198708

W/SINGLE AIR CONDITIONER,NO.1

main88650-87101iYH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER,NO.1

main88650-95A01iLH61,71..09S,15S198508-198708

W/*ODAC,A TYPE,NO.1

main88650-95J00iYH51,61,71..(DLX,GL,STD)..(09S,10S,15S)198306-198508

W/*ODAC,NO.1

main88650-95J01iYH51..CTM,SCM198306-198508

W/*ODAC,NO.1

main88650-95J02iLH51,61..WG198508-198708

main88650-95J04iYH51..07S198508-198708

W/*ODAC & *AAC,A TYPE,NO.1

main88650-95J05iLH51..07S198508-198708

W/*ODAC & *AAC,A TYPE,NO.1

main88650-95J09iLH51..4FC..TD198508-198708

NO.2

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-14080iLH5#,YH51..08S198306-198508

COOL BOX

main88688-95J22iLH50,51,60,61,7#,YH5#,6#,71..V198212-198708

W/SINGLE AIR CONDITIONER,NO.1

main88688-95J48iLH51,YH51..07S198508-198708

W/*AAC,NO.1

main88688-95J51iLH51..4FC..TD198508-198708

NO.2

88899BCOVER, COOLER CONTROL

main88899-95J03iLH50,51,60,61,7#,YH5#,6#,71198212-198708

88899GMOULDING, PROTECTOR

main88896-90703iLH7#,YH71..15S198212-198708

RR,NO.2

main88899-95J09iLH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S198212-198708

RR,NO.1

main88899-95J10iLH50,51,60,61,7#,YH5#,6#,71198212-198706

FR

main88899-95J17iLH51,61,71,YH51,61,71198706

FR

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

9004464009

main90044-64009

9009300609

main90093-00609

9009900149

main90099-00149

9009900930

main90099-00930

9009900968

main90099-00968

9009914044

main90099-14044

9009914046

main90099-14046

9017908123

main90179-08123

9338116016

main93381-16016

9338518016

main93385-18016

9354014012

main93540-14012

9354015012

main93540-15012

9356055014

main93560-55014

9356614512

main93566-14512

40 parts on this diagram · 7 diagrams in section
