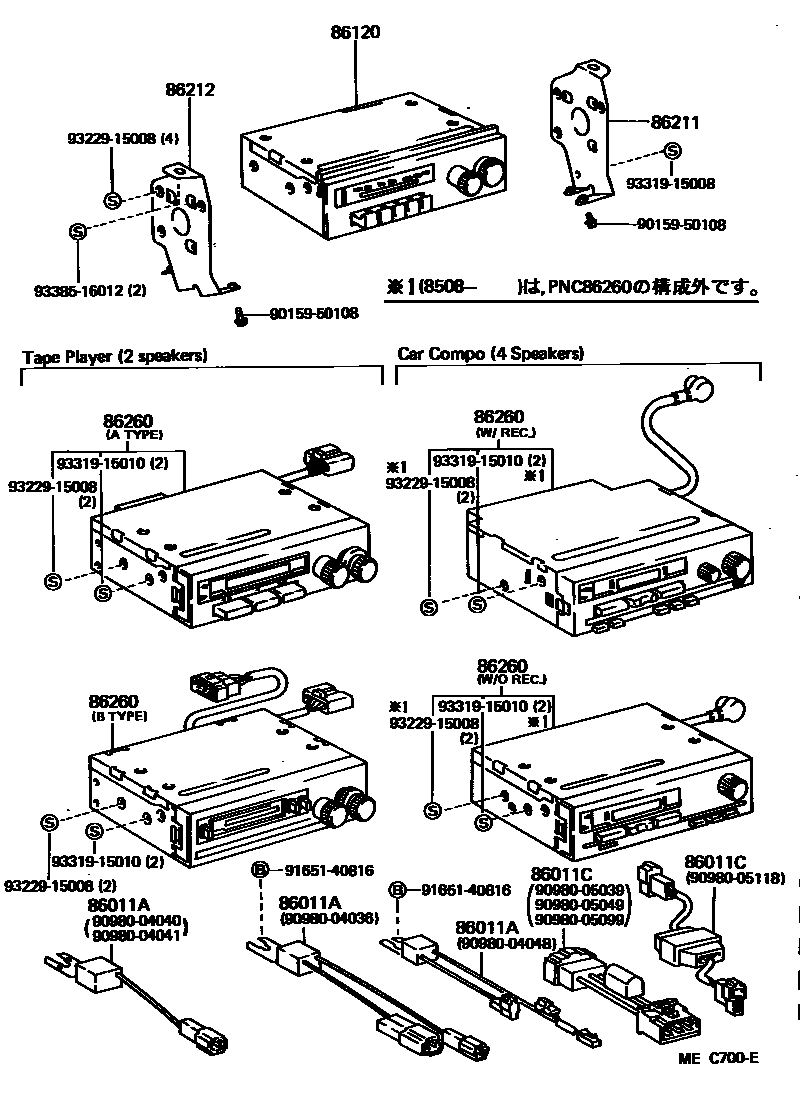

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

86011ACONDENSER, RADIO SETTING

main90980-04036iYH50,61,71..V..(DLX,GL)198212-198401

LEAD WIRE:L=105 & 145

main90980-04040iLH50,60,70,YH50,61,71..(COM,V)..(DLX,GL)198212-198401

LEAD WIRE:L=95

main90980-04041iYH51,61..WG198401-198708

LEAD WIRE:L=100

main90980-04048iYH51..MRF..08S198307-198508

LEAD WIRE:L=100 & 155

86011CFILTER, NOISE

main90980-05039iLH50,YH51..08S198212-198401

W/*19

main90980-05049iLH5#,6#,71,YH5#,6#,71198508-198708

W/*19 OR *36

main90980-05099iLH51,YH51..08S198401-198508

W/*19 OR *36

main90980-05118iLH5#,6#,71,YH5#,61..GL,SCL,SCM198508-198708

W/*BS

86120RECEIVER ASSY, RADIO

main86120-14520iLH50,60,70,YH5#,61,71..CTM,DLX,GL,SCM198212-198401

AM

main86120-14540iLH50,YH51..08S198212-198401

*19

main86120-17010iLH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM198403-198708

AM

main86120-17020iLH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM198403-198708

*19

main86120-20350iLH51,YH51..WG..SRF198508-198708

W/CAR COMPO(4 SP),W/O *SIS

main86120-20480iLH5#,YH51..WG198212-198508

W/CAR COMPO(4 SP),W/O *SIS

main86120-89124iLH5#,61,71,YH5#,6#,71198401-198403

AM

main86120-89125iLH5#,61,71,YH5#,6#,71..CTM,DLX,GL,SCM198401-198403

*19

main86120-95J00iLH50,51,YH51..MRF..(07S,08S)198212-198708

W/CAR COMPO(OZMA)

main86120-95J01iLH51,YH51..CTM,SCL,SCM198401-198708

*SIS

86211BRACKET, RADIO, NO.1

main86201-95J00iLH50,60,70,YH5#,61,71198212-198401

main86201-95J01iLH5#,61,71,YH5#,6#,71198401-198608

main86211-95J08iLH5#,6#,71,YH5#,6#,71198608-198708

86212BRACKET, RADIO, NO.2

main86212-95J01iLH50,60,70,YH5#,61,71198212-198401

main86212-95J03iLH5#,6#,71,YH5#,6#,71198608-198708

main86212-95J06iLH5#,61,71,YH5#,6#,71198401-198608

86260TAPE PLAYER ASSY

main86260-14260iLH5#,6#,71,YH5#,6#,71..HRF,SRF198508-198708

2 SPEAKERS,B TYPE

main86260-19055iLH5#,6#,7#,YH5#,6#,71198212-198508

2 SPEAKERS,A TYPE

main86260-19065iLH5#,YH51..WG198212-198508

W/CAR COMPO(4 SP),W/O REC.

main86260-19075iLH50,YH51..WG198212-198401

W/CAR COMPO(4 SP),W/REC.

main86260-19076iLH51,YH51..WG198401-198508

W/CAR COMPO(4 SP),W/REC.

main86260-20140iLH51,YH51..WG..SRF198508-198708

W/CAR COMPO(4 SP),W/O REC.

main86260-20150iLH51,YH51..WG..SRF198508-198708

W/CAR COMPO(4 SP),W/REC.

main86260-95J00iLH50,51,YH51..MRF..(07S,08S)198212-198708

W/CAR COMPO(OZMA)

9015950108

main90159-50108

9098004036

main90980-04036

9098004040

main90980-04040

9098004041

main90980-04041

9098004048

main90980-04048

9098005039

main90980-05039

9098005049

main90980-05049

9098005099

main90980-05099

9098005118

main90980-05118

9165140816

main91651-40816

9322915008

main93229-15008

9331915008

main93319-15008

9331915010

main93319-15010

9338516012

main93385-16012

20 parts on this diagram · 7 diagrams in section
