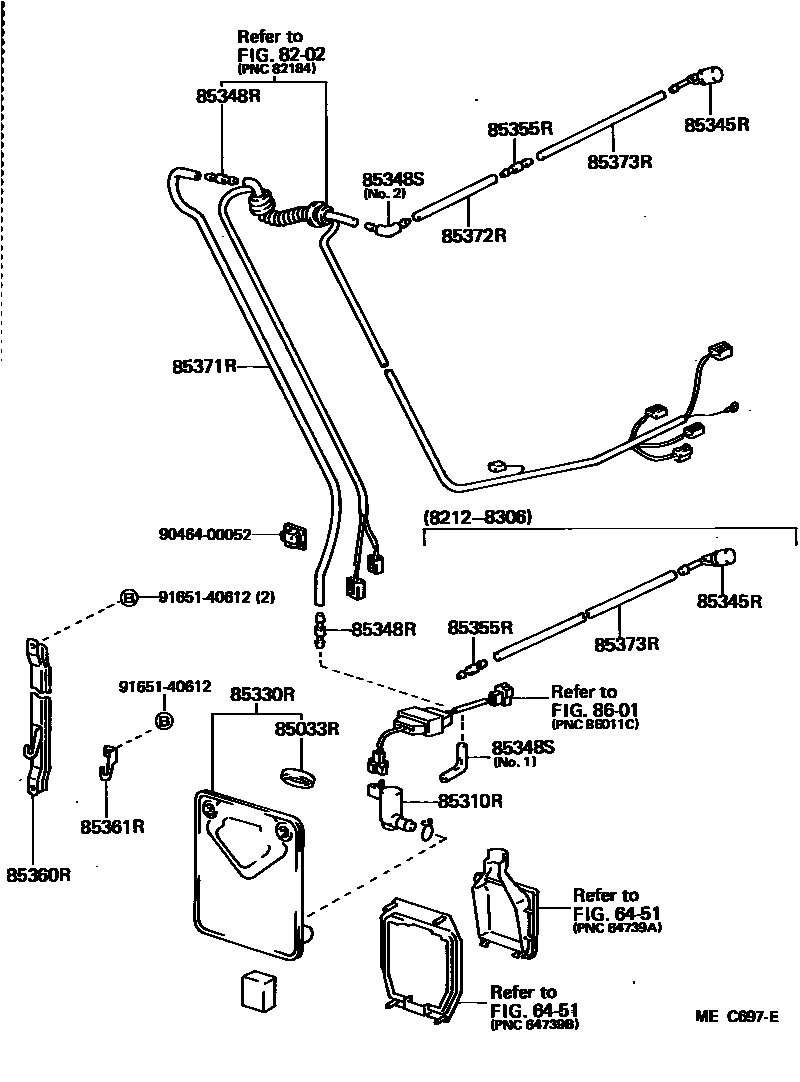

REAR WASHER

0001 1 0002 1

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-20070iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85310RMOTOR ASSY, REAR WASHER

main85310-20100iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85330RJAR ASSY, REAR WASHER

main85330-95J03iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85345RNOZZLE, REAR WASHER

main85035-23020iLH50,60,70,YH5#,61,71..CTM,DLX,GL,SCM198212-198311

main85035-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198311-198708

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201×3iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

NO.1

main85355-20200iLH5#,6#,YH5#,6#..(MRF,SRF)..(CTD,CTM,DLX,GL,SCL,SCM)198306-198708

NO.2

85355RVALVE, REAR WASHER HOSE

main85031-14080iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85360RBRACKET ASSY, REAR WASHER

main85307-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85361RHOLDER, REAR WASHER

main85361-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iLH5#,6#,YH5#,6#..(MRF,SRF)..(CTD,CTM,DLX,GL,SCL,SCM); LH61,7#,YH61,71..HRF198212-198708

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33368iLH5#,6#,YH5#,6#..(MRF,SRF)..(CTD,CTM,DLX,GL,SCL,SCM)198306-198708

main90446-06013iLH61,7#,YH61,71..HRF198212-198708

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33368iLH50,60,YH5#,61..CTM,DLX,GL,SCM198212-198306

main90446-06013iLH61,7#,YH61,71..HRF198212-198708

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9046400052

main90464-00052

9165140612

main91651-40612

17 parts on this diagram · 2 diagrams in section
