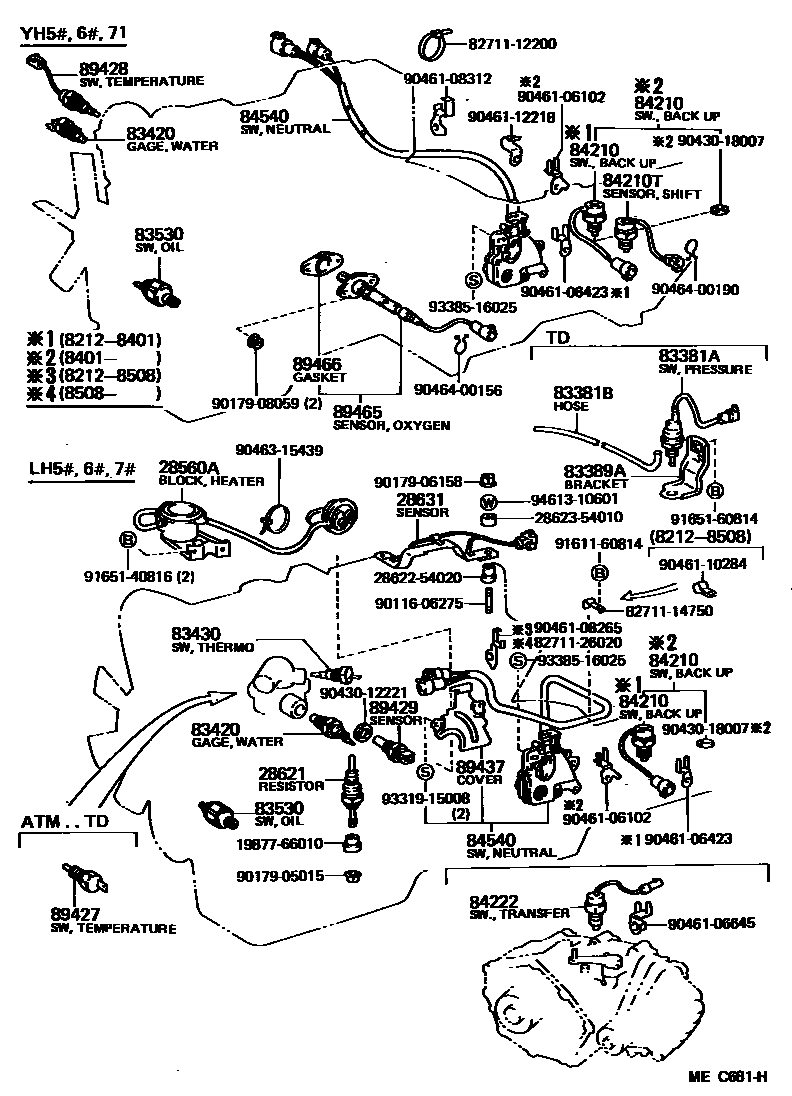

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28560ABLOCK, HEATER

main28560-95J00iL..LH50..ATM198212-198308

COLD SPEC

main28560-95J01iL,2L#..LH50,51,61..ATM198308-198708

COLD SPEC

28621RESISTOR, GLOW PLUG

main28621-54031iL,2L..LH5#,6#,7#198212-198708

main28621-54070i2LT..LH51198508-198708

28631SENSOR, GLOW PLUG CURRENT

main28631-54040iL,2L#..LH5#,6#,7#198212-198708

83381ASWITCH, PRESSURE

main83381-26010iLH51..TD198508-198708

83381BHOSE, VACUUM

main95411-10060iLH51..TD198508-198708

83389ABRACKET, PRESSURE SWITCH

main83389-26010iLH51..TD198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH5#,6#,7#,YH5#,6#,71198212-198708

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96440iLH61,71..09S,15S198401-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iYH5#,6#,71198212-198502

main83530-14030iYH5#,6#,71198502-198708

main83530-30060iLH51,56,6#,71198502-198708

main83530-36011iLH5#,6#,7#198212-198502

84210SWITCH ASSY, BACK-UP LAMP

main84210-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

main84210-60021iLH5#,6#,71,YH5#,6#,71..MTM198401-198708

84210TSENSOR ASSY, SHIFT POINT

main84220-26010iYH50,61,71..V..4H198212-198401

main84220-26020iYH50,61,71..V..MTM198401-198708

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iLH56,66198608-198708

84540SWITCH ASSY, NEUTRAL START

main84540-14100iYH51,61..ATM198212-198708

main84540-26010iLH50,51,61..ATM..DSL198212-198708

main84540-26020iLH51..4FC..TD198508-198708

89427SWITCH, TEMPERATURE DETECT

main89428-10050iLH51..4FC..TD198508-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-14040iYH50,51,61,71..V198212-198708

MARK=50B

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH5#,6#,7#198212-198708

89437COVER, SENSOR

main89437-26010iLH50,51,61..ATM198212-198708

89465SENSOR, OXYGEN

main89465-19065iYH51,61..WG198212-198708

89466GASKET, OXYGEN SENSOR

main89466-30010iYH51,61..WG198212-198708

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

9011606275

main90116-06275

9017905015

main90179-05015

9017906158

main90179-06158

9017908059

main90179-08059

9043012221

main90430-12221

9043018007

main90430-18007

9046106102

main90461-06102

9046106423

main90461-06423

9046106645

main90461-06645

9046108265

main90461-08265

9046108312

main90461-08312

9046110284

main90461-10284

9046112218

main90461-12218

9046315439

main90463-15439

9046400156

main90464-00156

9046400190

main90464-00190

9161160814

main91611-60814

9165140816

main91651-40816

9165160814

main91651-60814

9331915008

main93319-15008

9338516025

main93385-16025

9461310601

main94613-10601

47 parts on this diagram · 7 diagrams in section
