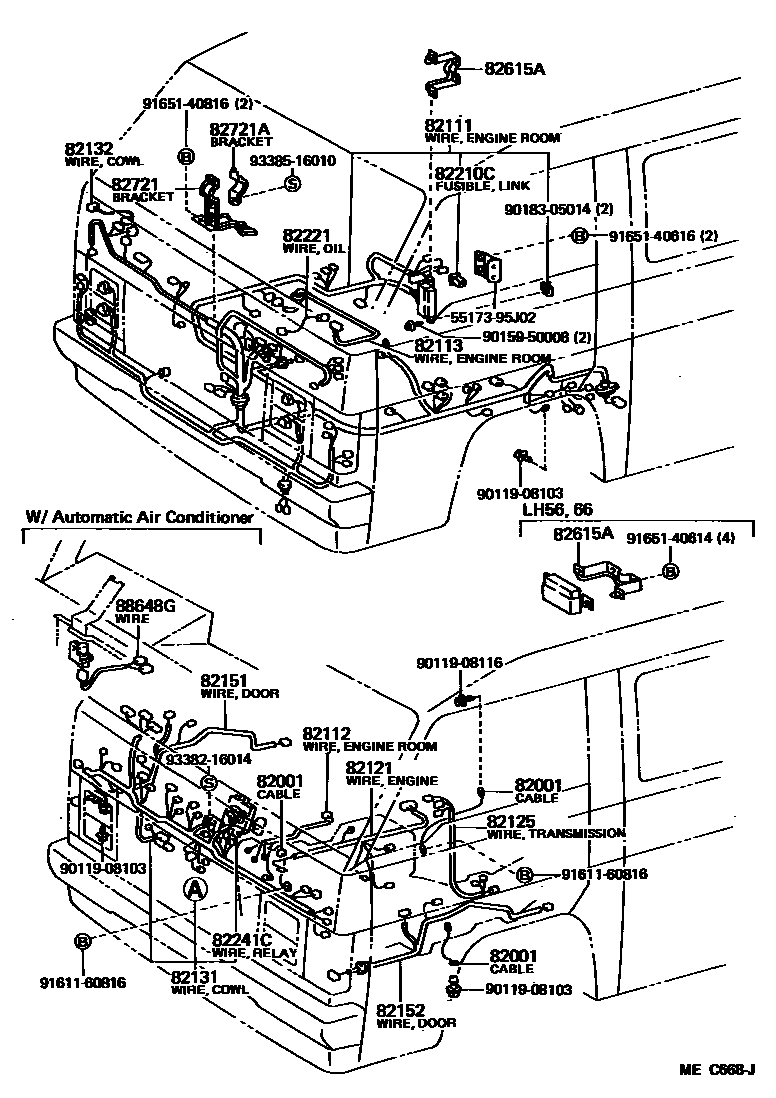

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=300
L=280
L=300
L=230
L=290
82111WIRE, ENGINE ROOM MAIN
*EL,CLOCK OR *REH;*RWD,COLD SPEC OR *CH
*EL,*RWD OR CLOCK;*REH OR COLD SPEC
LPG PACKAGE
*RWD,CLOCK,*REH OR COLD SPEC; COLD SPEC OR *CH;*EL,*RWD,CLOCK OR *REH
*EL OR CLOCK; COLD SPEC OR *REH
*RWD OR CLOCK;*EL,*REH OR COLD SPEC
*RWD,*REH OR COLD SPEC
*RWD,*REH OR COLD SPEC
CLOCK OR *RWD; COLD SPEC OR *REH
*REH,COLD SPEC OR *RWD
LPG PACKAGE
*63
*RWD,*REH OR COLD SPEC
W/FUEL HEATER,*RWD OR *REH
COLD SPEC,*PC OR *BS
COLD SPEC;W/FUEL HEATER,*RWD OR *REH
W/FUEL HEATER,*PC OR *BS;COLD SPEC
LPG PACKAGE
*RWD,*REH OR COLD SPEC
W/FUEL HEATER OR *RWD;COLD SPEC OR W/RR HEATER
COLD SPEC,*PC OR *BS
COLD SPEC;W/FUEL HEATER,*RWD OR *REH
W/FUEL HEATER,*PC OR *BS;COLD SPEC
*63
W/FUEL HEATER,*RWD OR *REH
82112WIRE, ENGINE ROOM, NO.2
LPG PACKAGE
82113WIRE, ENGINE ROOM, NO.3
82121WIRE, ENGINE
82125WIRE, TRANSMISSION
W/*FH,*REH OR *RWD EXCL/*63;COLD SPEC
82131WIRE, COWL
*EL,*REH OR *RWD
COLD SPEC
main82131-95J14iYH50,61..4H..(DLX,STD); YH61..09S..LPG; YH61..4HC;YH50,61..4H..GL; YH71..VSG198212-198401
*EL,*REH OR *RWD; *EL,*RWD OR *REH; *REH OR COLD SPEC
*EL,*REH,COLD SPEC OR *RWD; COLD SPEC
COLD SPEC,*EL,*REH OR *RWD
COLD SPEC,*EL,*REH OR *RWD
*RWD (W/TIMER) & *BDEL;*RWD (W/TIMER);*RWD (W/TIMER) & *REH; COLD SPEC
COLD SPEC,*RWD,*EL OR *REH
*REH,*EL OR *RWD
COLD SPEC,*EL,*REH OR *RWD
main82131-95J48iLH5#,61,71..COM,V; LH50,61,71..5H..DLX..(06S,09S); LH50,61,71..V..5H..DLX; LH51,61..WG..DLX198401-198508
COLD SPEC; COLD SPEC & *EL; COLD SPEC & *REH; COLD SPEC,*EL,*REH OR *RWD
LPG PACKAGE
LPG PACKAGE
COLD SPEC,*RWD OR *REH
main82131-95J88iLH51,61,71..V..5H..(CTD,DLX); LH61,71..15S; LH61..GL;LH61..4HC;LH51..VSG..(4FC,4HC,5F)198508-198608
*RWD OR *REH,EXCL/COLD SPEC
COLD SPEC; COLD SPEC,*REH OR *RWD
COLD SPEC,*REH OR *RWD
*BS OR *PC
LPG PACKAGE
main82131-95N55iLH5#,6#,71..MTM..(CTD,DLX); LH56,66..GL; LH61,71..15S; LH61..GL;LH61..4HC;LH51..VSG..(4FC,4HC,5F)198608-198708
W/*RWD OR RR HEATER,EXCL/COLD
*63; COLD SPEC; COLD SPEC,*REH OR *RWD
*BS OR *PC
82132WIRE, COWL, NO.2
82151WIRE, FRONT DOOR, RH
*EL
*PW ONLY
*RCM ONLY
*PW & *RCM
*EL
*PW ONLY
*PW & *RCM
*EL
82152WIRE, FRONT DOOR, LH
*EL
*PW
*EL
82210CFUSIBLE LINK
82221WIRE, OIL PRESSURE SWITCH
82241CWIRE, RELAY
82615ABRACKET, FUSE
82721BRACKET, WIRING HARNESS, NO.1
82721ABRACKET, WIRING HARNESS, NO.2
88648GWIRE, AIR CONDITIONER
W/*AAC
5517395J02STAY, PARKING BRAKE
main55173-95J02
9011908103
main90119-08103
9011908116
main90119-08116
9015950008
main90159-50008
9018305014
main90183-05014
9161160816
main91611-60816
9165140614
main91651-40614
9165140616
main91651-40616
9165140816
main91651-40816
9338216014
main93382-16014
9338516010
main93385-16010
28 parts on this diagram · 7 diagrams in section
