BATTERY & BATTERY CABLE

28800BCABLE, BATTERY TO GROUND

main82123-95J00i2Y,3Y,3YJ..YH50,52,6#,71198212-198508

COLD SPEC

main82123-95J01i2Y,3Y,3YJ..YH50,52,6#,71198212-198508

main82123-95J02iL,2L#..LH5#,6#,7#198212-198708

main82123-95J03i3Y..YH61..VSP198212-198401

COOLING VAN

main82123-95J05iL..LH50,60..VSP198212-198401

COOLING VAN

main82123-95J06i3Y..YH61..VSP198508-198708

COOLING VAN(*64 ONLY,COLDSPEC);COOLING VAN(*65 ONLY)

main82123-95J07iL,2L..LH50,51,61..VSP198401-198708

COOLING VAN

main82123-95J08i3Y..YH61..VSP198508-198708

COOLING VAN(*64 ONLY)

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-95J00i2Y,3Y,3YJ..YH50,6#,71..CTD,DLX; 2Y,3Y..YH5#,61..GL198508-198708

COLD SPEC

main82122-95J01i2Y,3Y,3YJ..YH50,6#,71..CTD,DLX198508-198708

main82122-95J02iL,2L..LH5#,6#,7#..MTM; L,2L..LH5#..ATM198212-198508

COLD SPEC

main82122-95J03iL,2L..LH5#,6#,7#..MTM198212-198508

main82122-95J04iL..LH50,60,70..(COM,WG)..MTM198212-198401

*CH & COLD SPEC

main82122-95J05i3Y..YH61..VSP198212-198401

COOLING VAN

main82122-95J07iL..LH50,60..VSP198212-198401

COOLING VAN,COLD SPEC

main82122-95J08iL..LH50,60..VSP198212-198401

COOLING VAN

main82122-95J09i3Y..YH61..VSP198508-198708

COOLING VAN(*64 ONLY,COLDSPEC);COOLING VAN(*65 ONLY)

main82122-95J10iL,2L..LH50,61..VSP198401-198508

COOLING VAN

main82122-95J11iL,2L..LH50,61..VSP198401-198508

COOLING VAN,COLD SPEC

main82122-95J12i2L#..LH51,61,71..MTM; 2L#..LH51..ATM198508-198708

COLD SPEC

main82122-95J13i2L#..LH51,61,71..MTM198508-198708

main82122-95J14i2L#..LH51,61..ATM198508-198708

COLD SPEC

main82122-95J15i2L..LH51,61..VSP198508-198708

COOLING VAN,COLD SPEC

main82122-95J16i2L..LH61..VSP198508-198708

COOLING VAN

main82122-95J17i3Y..YH61..VSP198508-198708

COOLING VAN(*64 ONLY)

main82122-95J19i2L..LH56,66198608-198708

COLD SPEC

main82122-95J20i2L..LH56,66198608-198708

28897PLATE, BATTERY CAUTION

main28897-43010i2Y,3Y#..YH5#,6#,71198212-198502

50D20L

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271130570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30570

8281995J02GROMMET, WIRING HARNESS

main82819-95J02

9011908103

main90119-08103

9017908146

main90179-08146

9046315439

main90463-15439

9161160816

main91611-60816

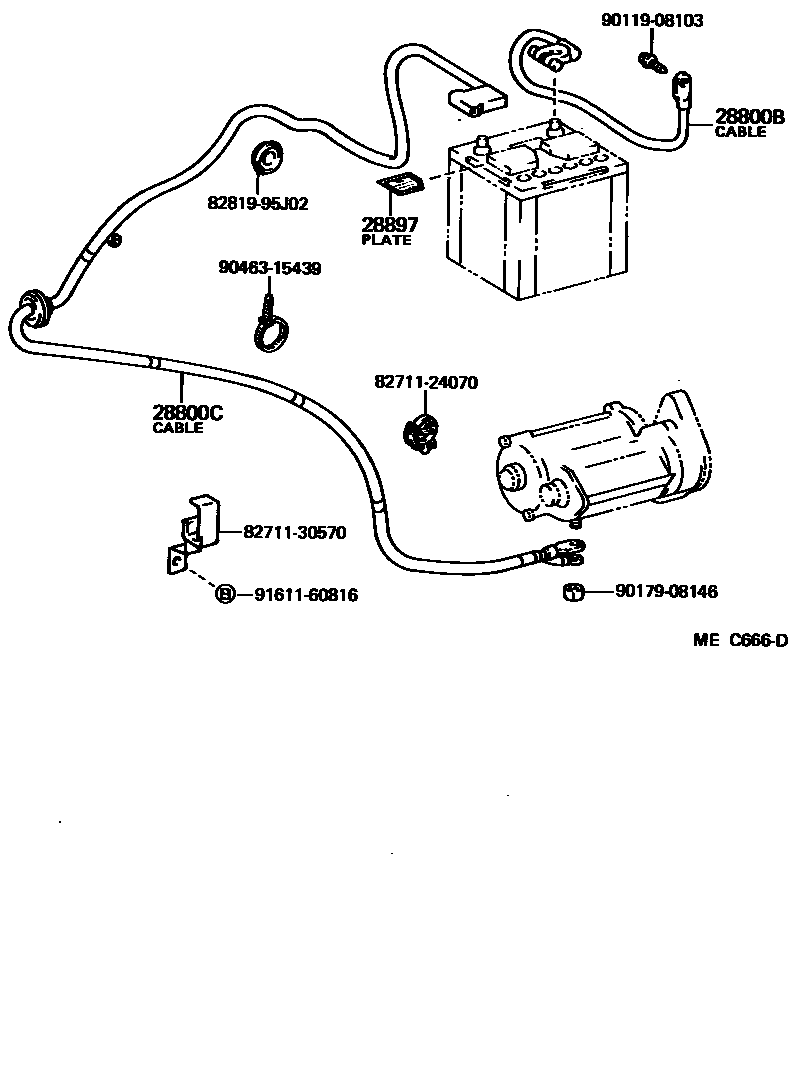

10 parts on this diagram · 1 diagram in section
