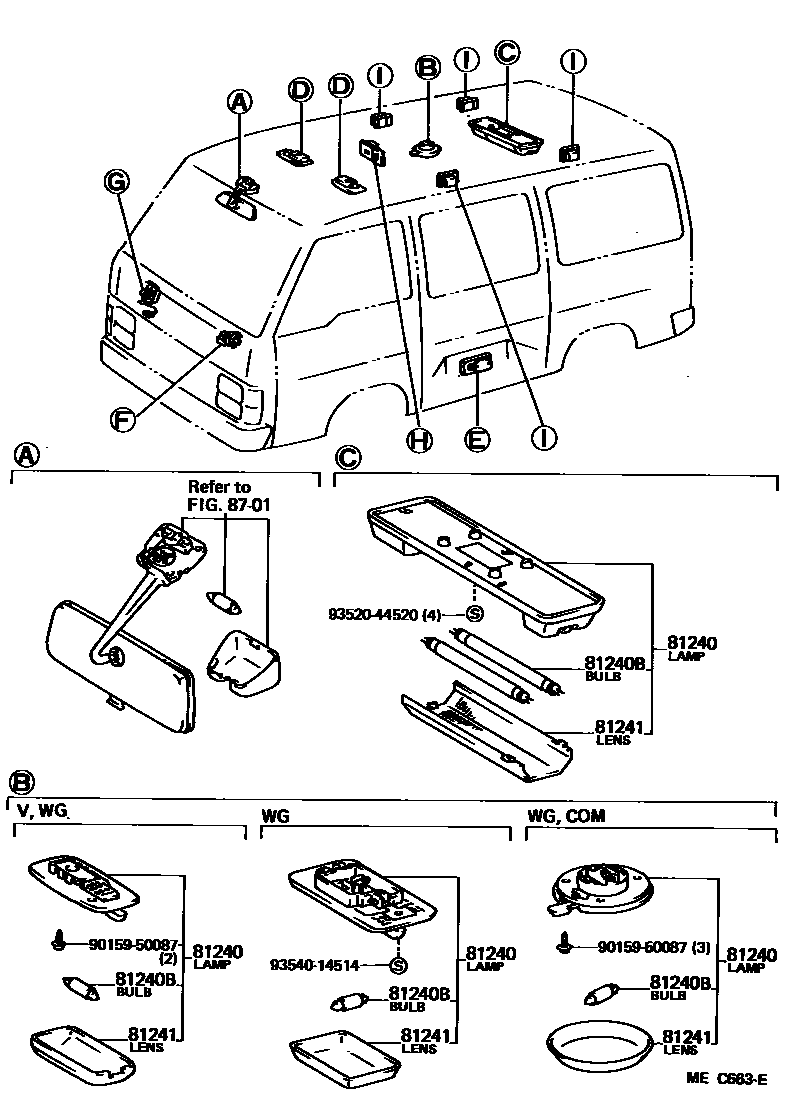

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-95704-03iLH5#,6#,YH5#,61..GL198508-198708

GRAY,GRAY

main81240-95704-05iLH5#,6#,71,YH50,6#,71..V..(CTD,DLX)198508-198708

BEIGE,BEIGE

main81240-95704-08iYH61..DLX..10S198303-198401

LIGHT DUTY,IVORY,IVORY

main81240-95705-03iLH50,51,YH51..SRF..CTM198212-198708

GRAY,GRAY

main81240-95705-05iLH51,61,YH51,61..WG..DLX198508-198708

BEIGE,BEIGE

main81240-95705-08iLH5#,6#,YH51,61..WG..SRF..(09S,10S)198212-198508

IVORY,IVORY

main81240-95A18×2iLH60,61,7#,YH71..15S198212-198708

main81240-95J01-03iLH50,51,YH51..08S198212-198708

GRAY,GRAY

main81240-95J01-05iLH51,YH51..07S,08S198508-198708

BEIGE,BEIGE

main81240-95J01-08iLH5#,YH51..08S198212-198508

IVORY,IVORY

main81240-95J02-03iLH50,YH51..MRF..09S198212-198401

GRAY,GRAY

main81240-95J02-08iLH50,YH51..MRF..09S198212-198401

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main90981-11004×2iLH5#,6#,7#,YH5#,6#,71..V; LH50,51,60,61,YH51,61..WG..SRF..(09S,10S); LH60,61,7#,YH71..15S198212-198708

main90981-11033×2iLH50,51,YH51..07S,08S198212-198708

main99132-12100iLH50,YH51..MRF..09S198212-198401

81241LENS, ROOM LAMP, NO.1

main81241-30070iLH50,YH51..MRF..09S198212-198401

main81241-95013iYH61..DLX..10S198303-198401

LIGHT DUTY

main81241-95705iLH50,51,60,61,YH51,61..WG..SRF..(09S,10S); LH60,61,7#,YH71..15S198212-198708

main81241-95J00iLH50,51,YH51..07S,08S198212-198708

8701MIRROR

→ Go to FIG 87-01

9015950087

main90159-50087

9352044520

main93520-44520

9354014514

main93540-14514

7 parts on this diagram · 2 diagrams in section
