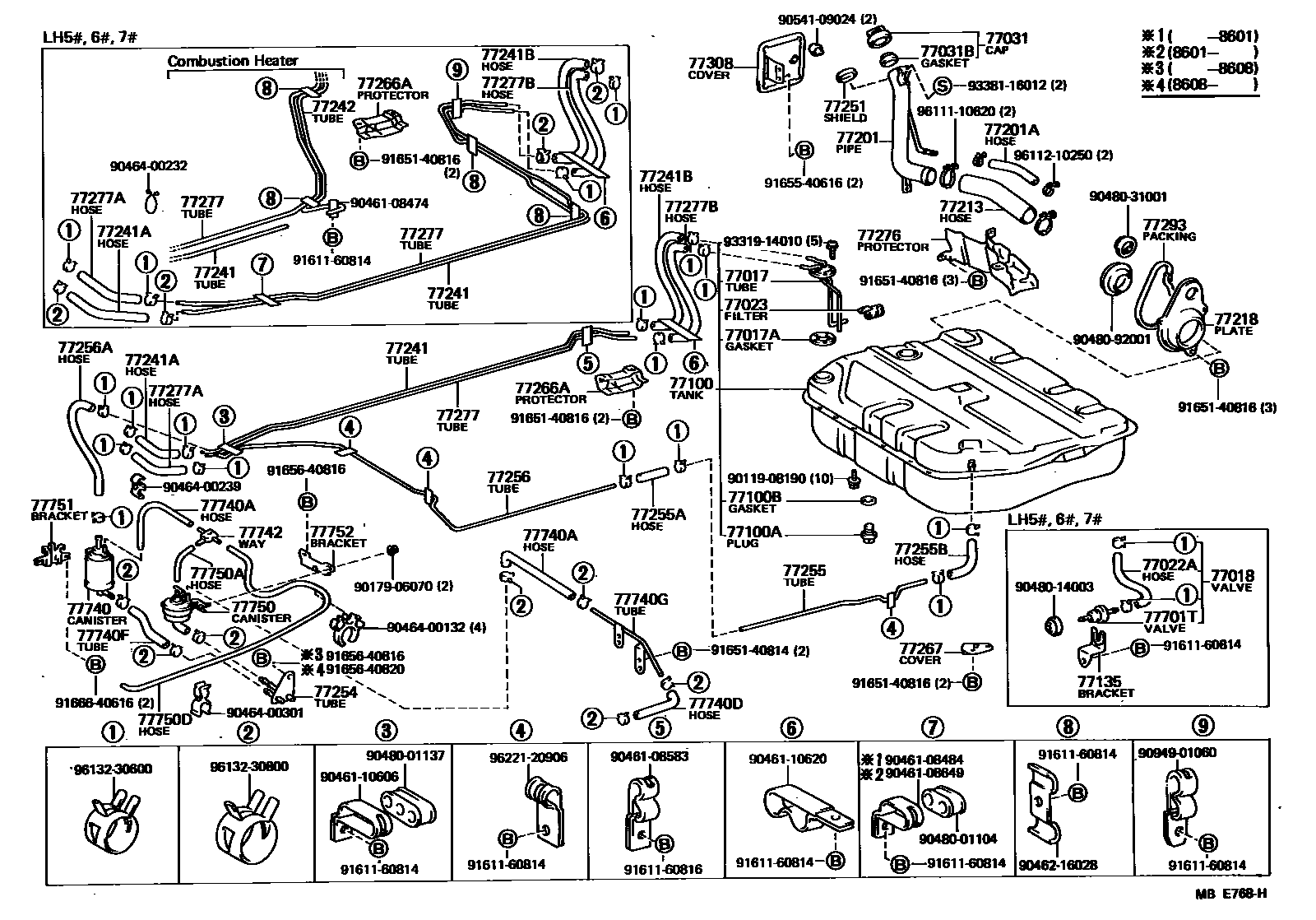

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1LPG PACKAGE

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26010iYH61..ST;YH5#,62,71..COM,V198212-198708

main77017-26020iLH5#,6#,7#..(COM,V)..ST198212-198708

main77017-26030iYH61..WT198212-198708

main77017-26040iLH60,61..WT198212-198708

main77017-26050iYH51..WG198212-198708

main77017-26060iLH50,51..WG198212-198708

77017AGASKET, FUEL TANK VENT

main77169-14020iLH5#,6#,7#,YH5#,6#,71198212-198708

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26080iLH5#,6#,7#..(COM,V)..ST198212-198708

main77018-26100iLH61..WT198212-198708

main77018-26110iLH50,51..WG198212-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main90923-01274iLH5#,6#,7#..(COM,V)..ST198212-198708

main95332-06010iLH60,61..WT198212-198708

sub95333-06010

main95332-06020iLH50,51..WG198212-198708

sub95333-06020

main95332-06040iLH60,61..WT198212-198708

sub95333-06040

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iYH5#,6#,71198212-198508

main77023-14030iYH5#,6#,71198508-198708

main77023-22040iLH5#,6#,7#198212-198508

main77023-32010iLH5#,6#,71198508-198708

77031CAP ASSY, FUEL TANK

main77310-12100iYH5#,6#,71198212-198708

main77310-35061iLH5#,6#,7#198212-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLH5#,6#,7#,YH5#,6#,71198212-198708

77100TANK ASSY, FUEL

main77100-26070iLH6#..WT198212-198508

sub77100-26905

main77100-26080iYH61..WT198212-198508

sub77100-26904

main77100-26090iLH5#..WG198212-198508

sub77100-26907

main77100-26100iYH51198212-198508

sub77100-26906

main77100-26110iYH50,52,6#,71..ST198212-198508

sub77100-26902

sub83320-80024

main77100-26120iLH6#..10S198212-198508

sub77100-26903

sub83320-80024

main77100-26902iYH61..10S198508-198708

main77100-26903iLH61..10S198508-198708

main77100-26904iYH61..WT198508-198708

main77100-26905iLH61..WT198508-198708

main77100-26906iYH51..WG198508-198708

main77100-26907iLH51..WG198508-198708

77100APLUG(FOR FUEL TANK)

main90105-12018iLH5#,6#,7#,YH5#,6#,71198212-198508

main90105-12116iLH51,61,71,YH5#,6#,71198508-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH5#,6#,7#,YH5#,6#,71198212-198708

77135BRACKET, CHECK VALVE

main77135-26010iLH5#,6#,7#..ST198212-198708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26040iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main77201-26050iLH60,61,YH61..WT198212-198708

main77201-26060iLH50,51,YH51..WG198212-198708

main77201-95J00iYH50,61..V198311-198708

LPG PACKAGE

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-24012iLH5#,6#,7#,YH5#,6#,71..ST198212-198708

main90445-24033iLH60,61,YH61..WT198212-198708

77213HOSE, FUEL TANK SUB INLET

main77213-26040iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198708

main77213-26050iLH60,61,YH61..WT198212-198708

main77213-26060iLH50,51,YH51..WG198212-198708

77218PLATE, FUEL INLET PIPE SET

main77218-95J00iLH60,61,YH61..10S198212-198708

main77218-95J01iLH50,51,YH51..WG198212-198708

main77218-95J02iLH60,61,YH61..WT198212-198708

77241TUBE, FUEL MAIN, NO.1

main77205-95J01iYH50..LPG198311-198508

LPG PACKAGE

main77205-95J02iYH61..LPG198311-198508

LPG PACKAGE

main77251-26150iYH5#..VSG198212-198608

sub77251-26420

main77251-26160iYH6#..ST198212-198608

sub77251-26440

main77251-26170iYH71198212-198608

sub77251-26460

main77251-26180iLH5#..V198212-198601

main77251-26181iLH5#..V198601-198708

main77251-26190iLH6#..ST198212-198601

main77251-26191iLH6#..ST198601-198708

main77251-26200iLH7#198212-198601

main77251-26201iLH71198601-198708

main77251-26210iYH51..WG198212-198708

main77251-26220iLH50,51..WG198212-198708

main77251-26230iLH50,60,70..(COM,WG)..MTM198212-198401

*CH

main77251-26240iYH61..WT198212-198708

main77251-26250iLH60,61..WT198212-198708

main77251-26420iYH5#..VSG198608-198708

main77251-26440iYH6#..ST198608-198708

main77251-26460iYH71198608-198708

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06040iYH5#,6#,71198212-198708

sub95333-06040

main95332-08030iLH5#,6#,7#198212-198708

sub95333-08030

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06030iYH61..WT198212-198708

sub95333-06030

main95332-06030iYH61..WT198212-198708

sub95333-06030

main95332-06030iYH61..WT198212-198708

sub95333-06030

main95332-08030iLH5#..WG198212-198708

sub95333-08030

main95332-08030iLH60,61..WT198212-198708

sub95333-08030

main95332-08030iLH51..WG198508-198708

sub95333-08030

77242TUBE, FUEL MAIN, NO.2

main77252-26040iLH50..WG..MTM198212-198401

*CH

main77252-26050iYH61..WT198212-198708

main77252-26060iLH60,61..WT198212-198708

main77252-26070iLH70..15S198212-198401

*CH

main77252-26100iLH60..10S,15S198212-198401

*CH

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iLH5#,6#,7#,YH5#,6#,71198212-198708

77254TUBE, FUEL EMISSION, NO.1

main77263-26060iYH5#,6#,71198212-198708

77255TUBE, FUEL EMISSION, NO.2

main77262-26120iYH61..WT198212-198708

main77262-26130iYH51..WG198212-198708

main77262-26140iYH5#..VSG198212-198708

main77262-26150iYH6#..ST198212-198708

main77262-26160iYH71198212-198708

77255AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

main95332-06020iYH5#,6#,71198212-198708

sub95333-06020

77255BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

main90923-01274iYH61..ST;YH5#,62,71..COM,V198212-198708

main95332-06030iYH51..WG198212-198708

sub95333-06030

main95332-06040iYH61..WT198212-198708

sub95333-06040

77256TUBE, FUEL EMISSION, NO.3

main77263-26030iYH5#,6#,71..ST198212-198708

main77263-26040iLH60,61..WT198212-198708

main77263-26050iYH61..WT198212-198708

77256AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)

main95332-06060iYH5#,6#,71198212-198708

sub95333-06060

77266APROTECTOR, FUEL TUBE, NO.1

main77266-26010iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main77266-26020iLH60,61,YH61..WT198212-198708

main77266-26030iLH50,51,YH51..WG198212-198708

77267COVER, FUEL EVAPORATIVE TUBE

main77267-26020iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main77267-26030iLH50,51,YH51..WG198212-198708

77276PROTECTOR, FUEL HOSE

main77276-26050iLH5#,6#,7#,YH5#,6#,71..ST198212-198708

main77276-26060iLH60,61,YH61..WT198212-198708

77277TUBE, FUEL RETURN, NO.1

main77255-26040iLH5#..V198212-198601

main77255-26041iLH5#..V198601-198708

main77255-26050iLH6#..ST198212-198601

main77255-26051iLH6#..ST198601-198708

main77255-26060iLH7#198212-198601

main77255-26061iLH71198601-198708

main77255-26070iYH5#..VSG198212-198708

main77255-26080iYH6#..ST198212-198708

main77255-26090iYH71198212-198708

main77255-26100iYH51..WG198212-198708

main77255-26110iLH50,51..WG198212-198708

main77255-26120iYH61..WT198212-198708

main77255-26130iLH60,61..WT198212-198708

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12071iLH51,61,71198601-198708

main90447-13001iLH5#,6#,7#198212-198601

L=460

sub90447-12071

main95332-06040iYH5#,6#,71198212-198701

sub95333-06040

main95332-06040iLH56198608-198708

sub95333-06040

main95333-06038iYH5#,6#,71198701-198708

sub95333-06040

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-06030iLH5#,6#,7#,YH5#,6#,71..COM,V198212-198702

sub95333-06030

main95332-06030iLH50,51,YH51..WG198212-198708

sub95333-06030

main95333-06030iYH5#,6#,71..COM,V198702-198708

sub95338-06030

77293PACKING, FUEL TANK, LOWER

main77293-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

77308COVER SUB-ASSY, FUEL INLET BOX

main77340-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

main77340-95J01iLH51,YH51..07S,08S198508-198708

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iLH5#,6#,7#198212-198708

77740CANISTER ASSY, CHARCOAL

main77704-60050iYH5#,6#,71198212-198708

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-14096iYH5#,6#,71198212-198708

main95411-10630iYH5#,6#,71198212-198708

sub90999-92002

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main90445-14102iYH5#,6#,71198212-198708

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95332-08060iYH5#,6#,71198212-198708

*H,L=440

sub95333-08060

77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main23818-72010iYH5#,6#,71198212-198708

77742WAY, 3(FOR CANISTER)

main90413-04005iYH5#,6#,71198212-198708

77750CANISTER ASSY, CHARCOAL

main77740-26050iYH5#,6#,71198212-198708

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main95411-10630iYH5#,61,71198404-198708

sub90999-92002

main95411-10630iYH5#,6#,71198212-198404

*H,L=200

sub90999-92002

77750DHOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)

main90445-08224iYH5#,6#,71198212-198708

sub90999-92006

77751BRACKET, CHARCOAL CANISTER BASE

main77751-32010iYH5#,6#,71198212-198708

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-26010iYH5#,6#,71198212-198708

9011908190

main90119-08190

9017906070

main90179-06070

9046108474

main90461-08474

9046108484

main90461-08484

9046108583

main90461-08583

9046108649

main90461-08649

9046110606

main90461-10606

9046110620

main90461-10620

9046216028

main90462-16028

9046400132

main90464-00132

9046400232

main90464-00232

9046400239

main90464-00239

9046400301

main90464-00301

9048001104

main90480-01104

9048001137

main90480-01137

9048014003

main90480-14003

9048031001

main90480-31001

9048092001

main90480-92001

9054109024

main90541-09024

9094901060

main90949-01060

9161160814

main91611-60814

9161160816

main91611-60816

9165140814

main91651-40814

9165140816

main91651-40816

9165540616

main91655-40616

9165640816

main91656-40816

9165640820

main91656-40820

9166640616

main91666-40616

9331914010

main93319-14010

9338116012

main93381-16012

9611110620

main96111-10620

9611210250

main96112-10250

9613230600

main96132-30600

9613230800

main96132-30800

9622120906

main96221-20906
