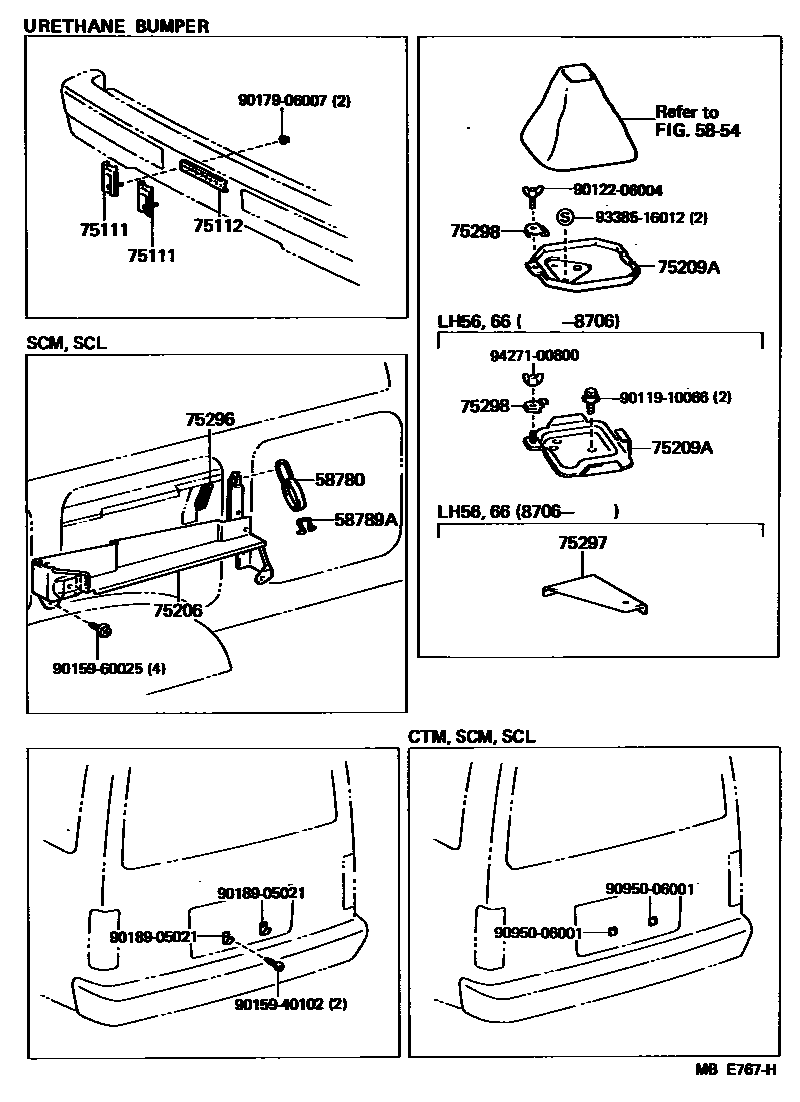

TOOL BOX & LICENSE PLATE BRACKET

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

58780BAND ASSY, TOOL BOX

main58780-95J00iLH50,51,YH51..07S,08S198212-198708

58789AHOOK, TOOL BOX BAND, NO.2

main58789-95J00iLH50,51,YH51..07S,08S198212-198708

75111BRACKET, FRONT LICENSE PLATE

main75111-95J00×2iLH50,YH51..CTM,SCM198212-198401

URETHANE BUMPER

75112BASE, LICENSE PLATE BRACKET

main75112-95J00iLH50,YH51..CTM,SCM198212-198401

URETHANE BUMPER

75206RAIL SUB-ASSY, TOOL BOX BOTTOM

main75206-95J00iLH5#,YH51..08S198212-198508

main75206-95J01iLH51,YH51..07S,08S198508-198708

75209ABASE SUB ASSY, JACK HOLDER

main75209-95J01iLH5#,6#,7#,YH5#,6#,71198212-198508

main75209-95J02iLH51,61,71,YH5#,6#,71198508-198708

main75299-95J05iLH56,66198608-198708

75296PROTECTOR, JACK HANDLE

main75296-95J00iLH51,YH51..07S,08S198508-198708

75297RETAINER, JACK BASE

main75297-95J05iLH56,66198706-198708

75298PLATE, JACK HOLDER

main75298-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main75298-95J01iLH56,66198608-198708

9011910066

main90119-10066

9012206004

main90122-06004

9015940102

main90159-40102

9015960025

main90159-60025

9017906007

main90179-06007

9018905021

main90189-05021

9095006001

main90950-06001

9338516012

main93385-16012

9427100800

main94271-00800

19 parts on this diagram · 1 diagram in section
