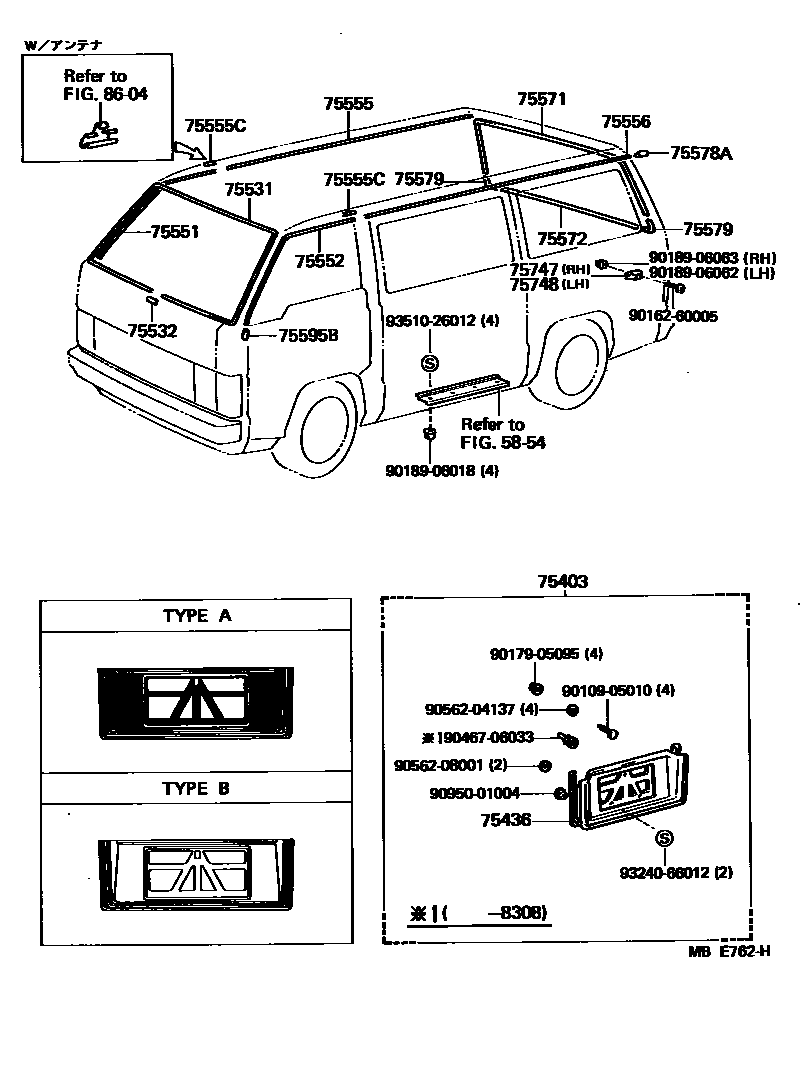

MOULDING

0001 1 0002 1

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-29015iLH5#,YH51..08S198212-198508

TYPE A(149,4D6)

main75403-29025iLH5#,YH51..08S198212-198508

TYPE B(8A7,2M3)

main75403-29035iLH5#,YH51..CTM198212-198708

75436PROTECTOR, BACK DOOR ORNAMENT

main75436-95J00iLH50,51,YH51..07S,08S198212-198708

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-95J00iLH5#,6#,7#,YH50,51,61..GL198212-198708

main75531-95J01iLH51,YH51..07S198508-198708

75532MOULDING, WINDSHIELD, LOWER

main75532-95J00iLH5#,6#,7#,YH50,51,61..GL198212-198708

main75532-95J01iLH51,YH51..07S198508-198708

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-95J00iLH5#,6#,7#,YH50,51,61..GL198212-198708

main75551-95J01iLH51,YH51..07S198508-198708

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-95J00iLH5#,6#,7#,YH50,51,61..GL198212-198708

main75552-95J01iLH51,YH51..07S198508-198708

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-90C00iLH7#..GL198212-198708

main75553-95J00iLH50,51,YH51..08S,09S198212-198708

main75553-95J01iLH6#,YH61..GL198212-198708

main75553-95J02iLH51,YH51..07S198508-198708

75555CCONNECTOR, ROOF DRIP MOULDING

main75555-95J00iLH5#,6#,7#,YH50,51,61..GL198212-198708

main75555-95J01iLH51,YH51..07S198508-198708

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-90C00iLH7#..GL198212-198708

main75554-95J00iLH50,51,YH51..08S,09S198212-198708

main75554-95J01iLH6#,YH61..GL198212-198708

main75554-95J02iLH51,YH51..07S198508-198708

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-95J00iLH50,51,60,61,YH51,61..WG..DLX198212-198708

main75571-95J01iLH51,YH51..07S198508-198708

75572MOULDING, BACK WINDOW, LOWER

main75575-95J00iLH50,51,60,61,YH51,61..WG..DLX198212-198708

main75575-95J01iLH51,YH51..07S198508-198708

75578ACOVER, ROOF DRIP MOULDING END, REAR

main75578-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

RH

main75578-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

STD PACKAGE,RH

main75579-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

LH

main75579-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

STD PACKAGE,LH

75579COVER, BACK WINDOW OUTSIDE MOULDING JOINT

main75585-95J00iLH50,51,60,61,YH51,61..WG..DLX198212-198708

main75585-95J01iLH51,YH51..07S198508-198708

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

RH

main75595-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

STD PACKAGE,RH

main75596-95J00iLH5#,6#,71,YH50,61,71..(COM,V)..DLX198608-198708

STD PACKAGE,LH

main75596-95J00iYH61..10S198608-198708

LH

75747MOULDING, SLIDE DOOR END, RH

main68373-95J01iLH5#,6#,YH5#,61..V5D198608-198708

main75747-95J00iLH5#,6#,YH50,51,61..V5D198212-198608

75748MOULDING, SLIDE DOOR END, LH

main68374-95J00iLH51,61,71,YH5#,6#,71198608-198708

main75748-95J00iLH51,61,71,YH50,51,6#,71198212-198608

8604ANTENNA

→ Go to FIG 86-04

9010905010

main90109-05010

9016260005

main90162-60005

9017905095

main90179-05095

9018906018

main90189-06018

9018906062

main90189-06062

9018906063

main90189-06063

9046706033

main90467-06033

9056204137

main90562-04137

9056208001

main90562-08001

9095001004

main90950-01004

9324066012

main93240-66012

9351026012

main93510-26012

30 parts on this diagram · 2 diagrams in section
