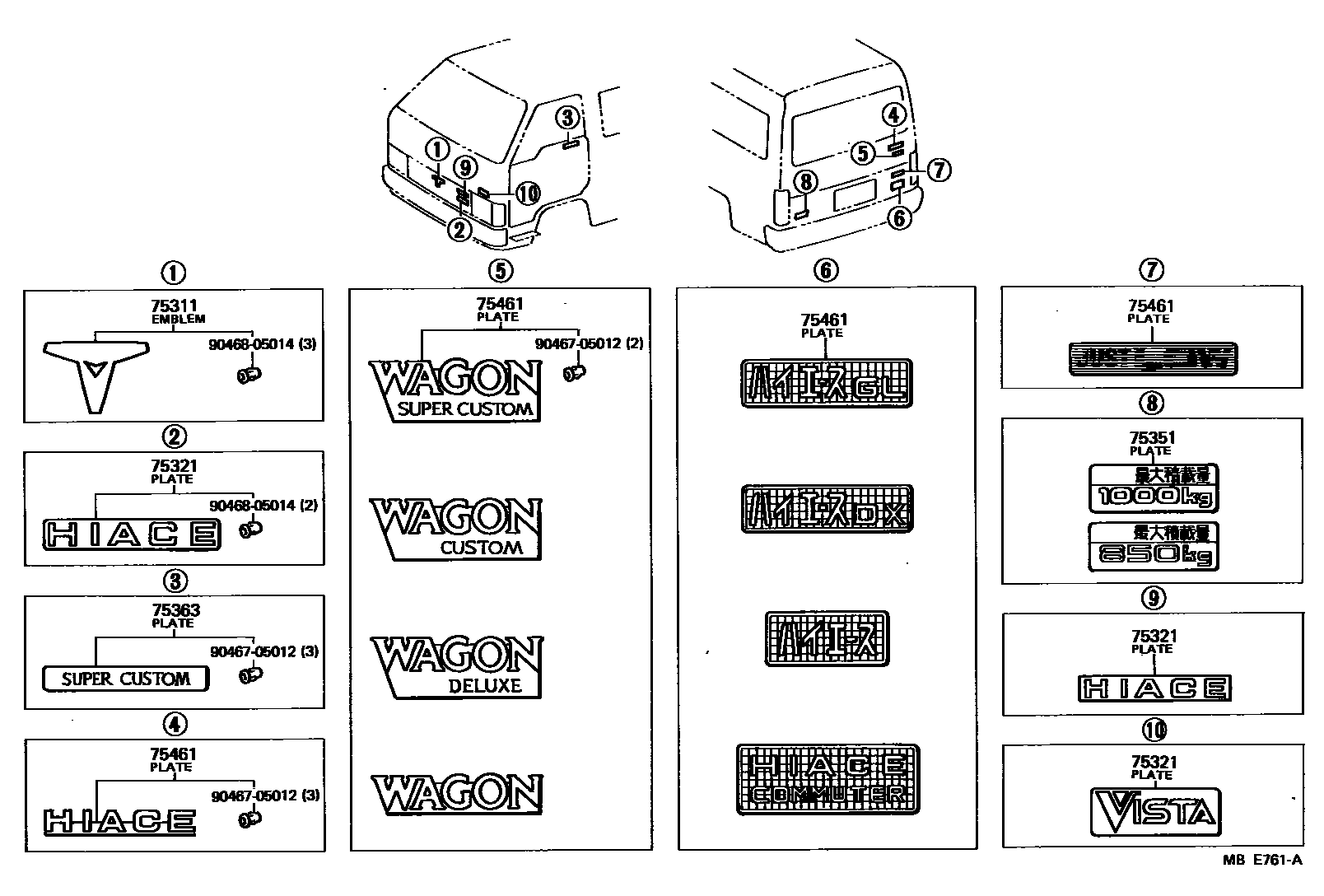

EMBLEM & NAME PLATE

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-95J00iLH5#,YH51..CTM,SCM198212-198508

main75311-95J01iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

main75311-95J02iLH51,61,YH51,61..WG198508-198708

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75312-95J00iLH5#,6#,YH51,61..WG198212-198508

HIACE,BLACK

main75312-95J01iLH50,60,YH51,61..WG198212-198401

HIACE,SILVER

main75312-95J02iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

HIACE

main75312-95J04iLH5#,6#,71,YH5#,6#,71..COM,V198508-198708

main75312-95J06iLH51,YH51..08S198502-198502

EVENT,HIACE,SILVER

main75314-95J01iLH5#,6#,7#,YH5#,6#,71198212-198708

main75315-95J00iLH51,YH51..07S198508-198708

main75315-95J01iLH51,61,YH51,61..WG..(08S,09S,10S)198508-198708

main75315-95J05iLH56,66..DLX198608-198708

main75315-95J06iLH56,66..GL198608-198708

main75315-95J07iLH66..V4D..GL198609-198708

WHITE SPECIAL,4WD

main75315-95J11iLH51..08S..TD; YH51..MRF..4FC..08S198701-198708

LIVING SALOO EX,HIACE

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75445-95J00iLH5#,6#,7#,YH50,61,71..V198212-198508

1000KG

main75445-95J01iYH52,62198401-198508

850KG

main75445-95J02iLH5#,6#,71,YH5#,61,71..V198508-198708

main75445-95J03iYH62198508-198708

75363PLATE, DOOR NAME

main75364-95J00×2iLH5#,YH51..08S198212-198508

SUPER CUSTOM

main75442-95J01×2iLH51,YH51..07S198508-198708

main75442-95J02×2iLH51,YH51..08S198508-198708

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75441-90C00iLH7#..GL198212-198508

GL

main75441-95J00iLH5#,YH51..08S198212-198508

WAGON SUPER CUSTOM

main75441-95J01iLH5#,YH51..CTM198212-198508

WAGON CUSTOM

main75441-95J02iLH5#,6#,YH51,61..WG..DLX198212-198508

WAGON DELUXE

main75441-95J03iYH61..STD198212-198508

WAGON

main75441-95J04iLH51,YH51..CTM,SCL,SCM198508-198708

main75441-95J05iLH51,61,71,YH5#,6#,71..V198508-198708

main75441-95J06iLH61,71,YH71..15S198508-198708

main75441-95J08iLH51,61,YH51,61..WG..DLX198508-198708

main75441-95J09iLH56,66..DLX198608-198708

main75441-95J10iLH56,66..GL198608-198708

main75441-95J11iLH66..V4D..GL198609-198708

WHITE SPECIAL,HIACE 4WD

main75441-95J12iLH51..08S..TD; YH51..MRF..4FC..08S198701-198708

LIVING SALOO EX,HIACE WAGON

main75442-95J00iLH5#,6#,YH51,61..WG198212-198508

HIACE

main75442-95J01iLH51,YH51..07S198508-198708

main75442-95J02iLH51,YH51..08S198508-198708

main75442-95J03iLH51,YH51..CTM198508-198708

main75442-95J04iLH5#,6#,71,YH5#,61..GL198508-198708

main75442-95J05iLH5#,6#,71,YH50,61,71..DLX198508-198708

main75442-95J07iLH51..08S..TD; YH51..MRF..4FC..08S198701-198708

LIVING SALOO EX,SUPER CUSTOM

main75443-95J00iLH5#,6#,YH50,61..GL198212-198508

HIACE GL

main75443-95J01iYH61..DLX..10S198303-198401

LIGHT DUTY,HIACE DX

main75443-95J02iYH50..STD198212-198508

HIACE

main75443-95J04iLH6#,7#,YH71..15S198212-198508

HIACE COMMUTER

main75444-95J00iLH6#,YH61..WT198212-198508

JUST LOW

main75444-95J01iLH61,YH61..WT198508-198708

9046705012

main90467-05012

9046805014

main90468-05014

7 parts on this diagram · 2 diagrams in section
