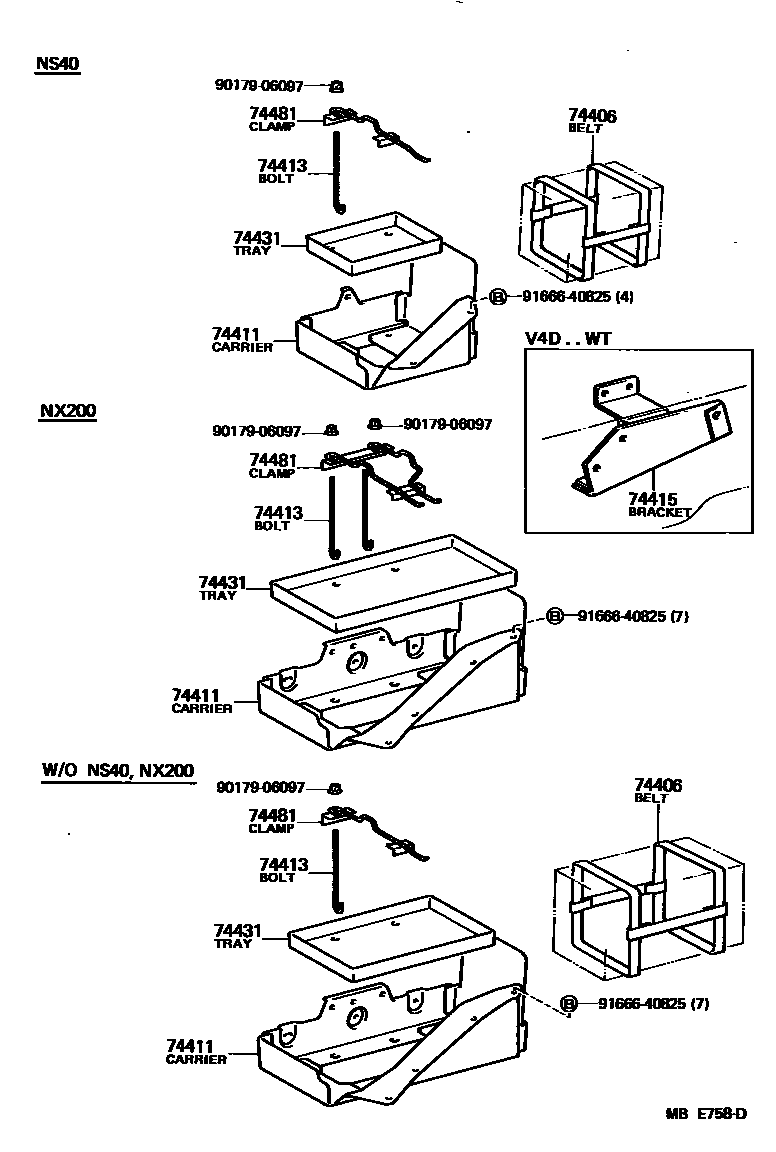

BATTERY CARRIER

0001 1 0002 1

74406BELT SUB-ASSY, BATTERY

main74446-95A02iLH50,60,70,YH5#,61,71198212-198302

W/O NS40,NX200

main74446-95A03iYH50,61,71..4H,4HC198212-198302

NS40

74411CARRIER, BATTERY

main74403-95J00iLH5#,6#,YH61..VSP198311-198511

COOLING VAN

main74403-95J01iLH51,61..VSP..ST198511-198708

COOLING VAN

main74410-95J00iYH50,52,6#,71..V4D198212-198508

NS40

main74410-95J01iLH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;LH7#,YH51,52,62,71..03S,06S,07S,08S,09S,15S198212-198708

W/O NS40

74413BOLT, BATTERY CLAMP

main74451-95J00×2iLH5#,6#,7#,YH5#,6#,71198212-198708

main74451-95J01×2iLH50,51,60,61,YH61..VSP198311-198708

COOLING VAN

74415BRACKET, BATTERY, REAR

main58408-95J00iLH50,51,60,61,YH61..VSP198311-198708

COOLING VAN

main74402-95J00iLH61,YH61..V4D..WT198508-198708

74431TRAY, BATTERY

main74431-89108iYH61..VSP198311-198708

COOLING VAN

sub74431-89107

main74431-95J00iLH5#,6#,7#198212-198708

NX200

main74431-95J01iLH50,51,60,61,7#,YH5#,6#,71198212-198708

W/O NS40,NX200

main74431-95J02iYH50,52,6#,71..4H,4HC198212-198508

NS40

74481CLAMP, BATTERY HOLD DOWN

main74404-95J00iYH50,52,6#,71..4H,4HC198212-198508

NS40

main74404-95J01iLH5#,6#,7#198212-198708

NX200

main74404-95J02iLH50,51,60,61,7#,YH5#,6#,71198212-198708

W/O NS40,NX200

main74404-95J04iYH61..VSP198311-198708

COOLING VAN

main74404-95J05iLH50,6#..VSP198311-198508

COOLING VAN

main74404-95J06iLH51,61..VSP..ST198508-198708

COOLING VAN

9017906097

main90179-06097

9166640825

main91666-40825

8 parts on this diagram · 2 diagrams in section
