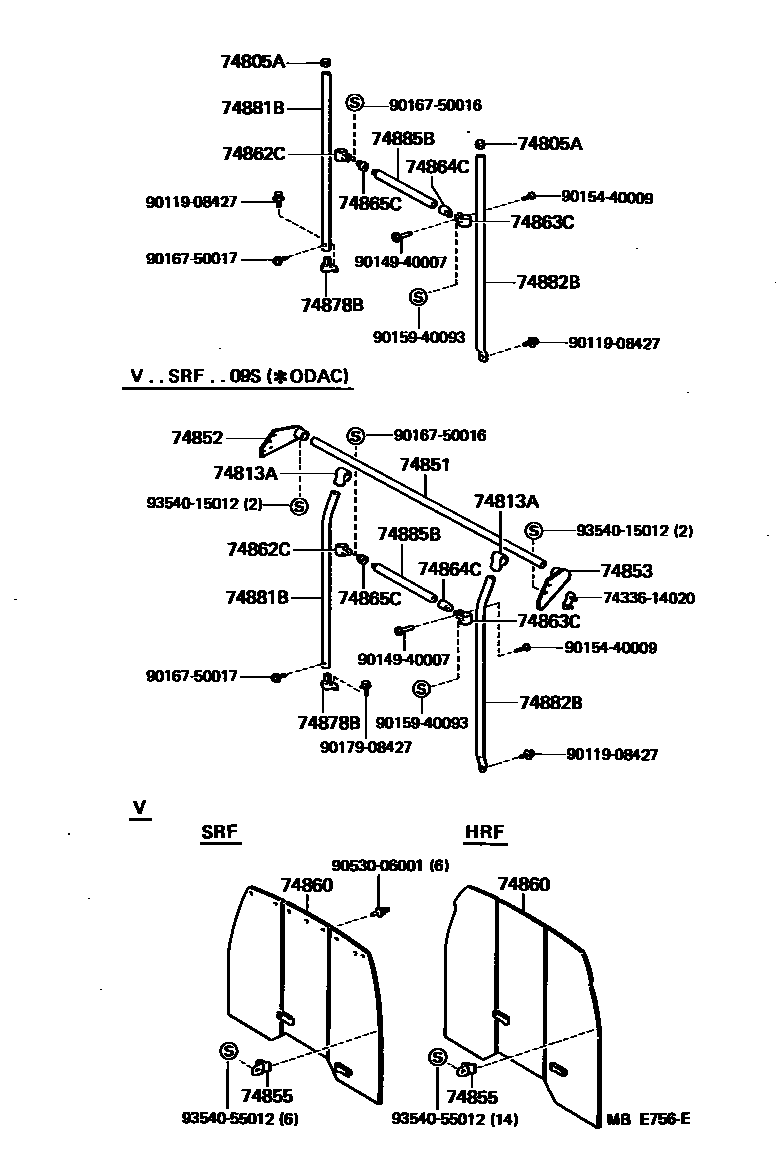

SEPARATOR & SEPARATOR CURTAIN

0001 1 0003 1 0004 1 0005 1

74805SEPARATOR SUB-ASSY

main74805-95J05-06iLH51,61,YH50,6#..03S198508-198708

BROWN,BROWN

main74805-95J10-04iLH66..GL..08S198608-198708

BLUE,BLUE

main74805-95J10-06iLH66..DLX..08S198608-198708

BROWN,BROWN

main74815-95J03-04iLH61,YH61..09S198508-198708

BLUE,BLUE

main74815-95J03-06iLH61,YH61..09S198508-198708

BROWN,BROWN

main74860-95J01-04iLH51,61,YH5#,61..05S198508-198708

BLUE,BLUE

main74860-95J01-06iLH56,66..DLX..05S198608-198708

BROWN,BROWN

main74860-95J02-06iLH61,71,YH61,71..HRF..06S198508-198708

BROWN,BROWN

74805AGROMMET (FOR SEPARATOR)

main90480-32007-04×2iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main90480-32007-05×2iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74813ABRACKET, SEPARATOR

main88898-95J01×2iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88898-95J15×2iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BEIGE

74851BAR, SEPARATOR

main88898-95J02iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88898-95J12iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BLUE GRAY

74852BRACKET, SEPARATOR, RH

main74825-90C00iLH7#,YH71..06S198212-198508

main74855-95A01-04iLH5#,6#,YH50,61..GL..06S198212-198508

BLUE GRAY,BLUE

main74855-95A01-05iLH5#,6#,YH50,61..SRF..06S198212-198508

BEIGE,BEIGE

main74858-95J01iLH61,YH61..HRF198401-198508

main88688-95J39iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88688-95J41iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BLUE GRAY

74853BRACKET, SEPARATOR, LH

main74826-90C00iLH61,7#,YH61,71..HRF..06S198212-198508

main74858-95A01-04iLH5#,6#,YH50,61..GL..06S198212-198508

BLUE GRAY,BLUE

main74858-95A01-05iLH5#,6#,YH50,61..SRF..06S198212-198508

BEIGE,BEIGE

main88688-95J40iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88688-95J42iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BLUE GRAY

74855PLATE, SEPARATOR CURTAIN SET

main74862-95661×14iLH50,60,70,YH50,61,71..V198212-198401

main74875-95J00×14iLH5#,6#,71,YH5#,6#,71..V198401-198708

74860CURTAIN ASSY, SEPARATE

main74870-90C00iLH70,YH71..06S198212-198304

main74870-95J00iLH50,60,YH50,61..V198212-198401

main74870-95J02iLH5#,61,YH50,52,6#..V..SRF198401-198508

main74870-95J04iLH61,71,YH61,71..HRF..VSG..ST198401-198508

main74870-95J06iLH61,YH61..V5D..06S..ST198401-198508

main74870-95J07iLH61,YH61..SRF..WT198401-198508

main74870-95J08iLH61,YH61..HRF..WT198401-198508

main74870-95J09iLH5#,YH5#..V; LH61,YH61..V5D..03S;LH61,YH6#..SRF..V4D..(03S,06S)..ST198508-198708

main74870-95J10iLH51,61,YH5#,6#..V..SRF198508-198708

W/COOLER

main74870-95J11iLH61,71,YH61,71..HRF..06S..ST198508-198708

main74870-95J12iLH66..V5D198608-198708

main74870-95J13iLH61,YH61..SRF..V5D..WT198508-198708

main74870-95J14iLH61,YH61..HRF..WT198508-198708

74862CBRACKET, SEPARATOR BAR, NO.2

main74862-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74862-95J00-05iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74863CBRACKET, SEPARATOR BAR, NO.3

main74863-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74863-95J00-05iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74864CBRACKET, SEPARATOR BAR, NO.4

main74864-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74864-95J00-05iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74865CBRACKET, SEPARATOR BAR, NO.5

main74865-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74865-95J00-05iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74878BBRACKET, SEPARATOR BAR, LOWER RH

main74878-95J01-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74878-95J01-05iLH5#,6#,7#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

74881BBAR, SEPARATOR, NO.1

main74851-90C00iLH61,7#,YH61,71..HRF..06S198212-198508

main74881-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74881-95J00-05iYH61..DLX..10S198303-198401

LIGHT DUTY,BEIGE,BEIGE

main88898-95J04iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88898-95J14iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BLUE GRAY

74882BBAR, SEPARATOR, NO.2

main74852-90C00iLH61,7#,YH61,71..HRF..06S198212-198508

main74882-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74882-95J00-05iYH61..DLX..10S198303-198401

LIGHT DUTY,BEIGE,BEIGE

main88898-95J03iLH6#,YH61..09S198212-198508

W/*ODAC,BEIGE

main88898-95J13iLH6#,YH61..GL..09S198212-198508

W/*ODAC,BLUE GRAY

74885BBAR, SEPARATOR, NO.5

main74885-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main74885-95J00-05iLH5#,6#,YH50,52,6#..V; LH7#,YH71..06S198212-198508

BEIGE,BEIGE

7433614020CLIP, VISOR ARM SET

main74336-14020

9011908427

main90119-08427

9014940007

main90149-40007

9015440009

main90154-40009

9015940093

main90159-40093

9016750016

main90167-50016

9016750017

main90167-50017

9017908427

main90179-08427

9053006001

main90530-06001

9354015012

main93540-15012

9354055012

main93540-55012

27 parts on this diagram · 4 diagrams in section
