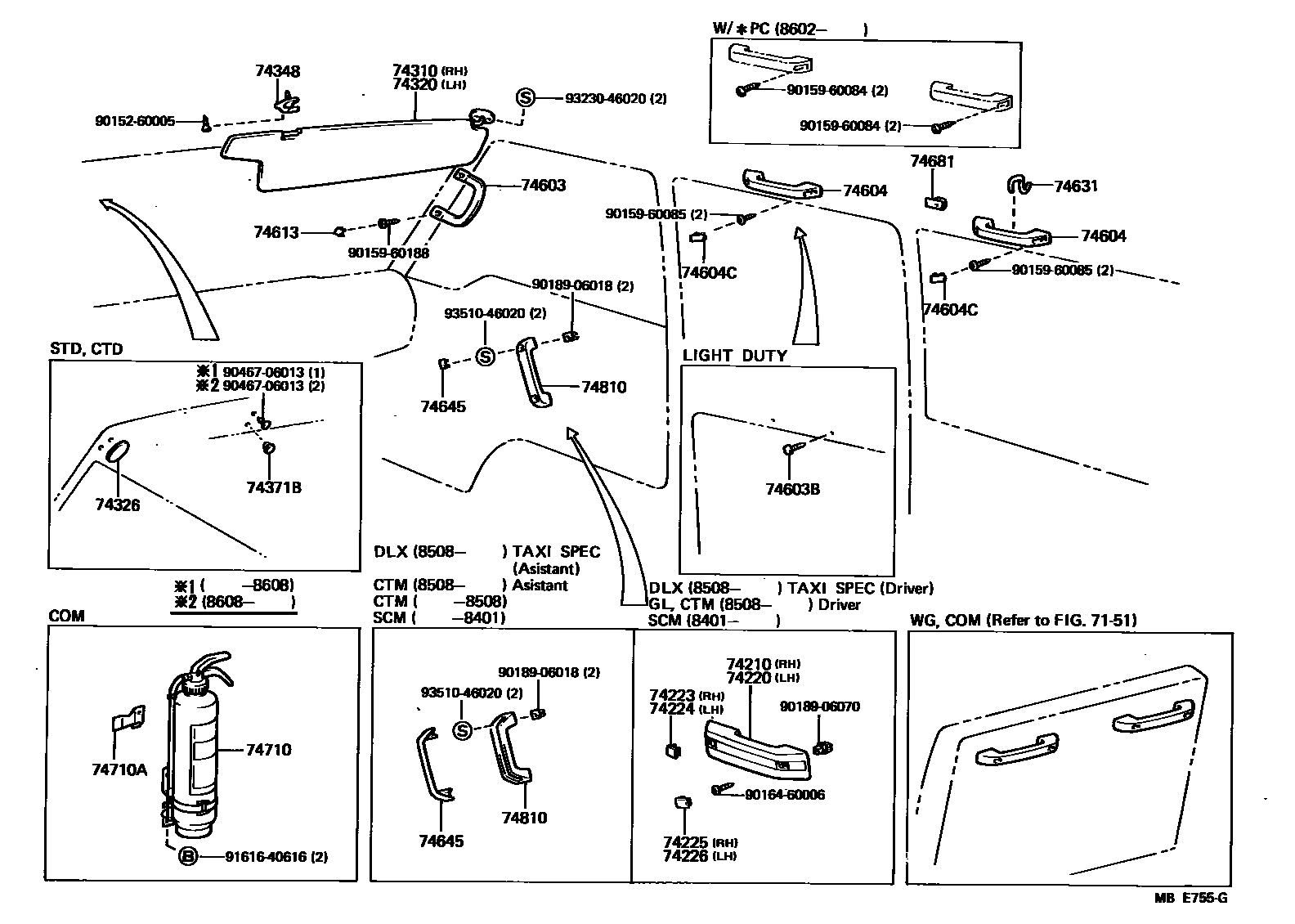

ARMREST & VISOR

0001 1 0002 1

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

74210ARMREST ASSY, FRONT, RH

main74210-95J00-06iLH51,YH51..07S198508-198708

BROWN,BROWN

main74260-20010-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74260-20010-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74260-20010-24iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

BLUE,BLUE

main74260-20010-26iLH51,YH51..08S; LH71..GL198508-198708

BROWN,BROWN

74220ARMREST ASSY, FRONT, LH

main74220-95J00-06iLH51,YH51..07S198508-198708

BROWN,BROWN

main74250-20020-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74250-20020-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74250-20020-24iLH51,YH51..08S198508-198708

BLUE,BLUE

main74250-20020-26iLH51,YH51..08S198508-198708

BROWN,BROWN

74223CAP, DOOR ARMREST, RH

main74223-20020-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74223-20020-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74223-20020-26iLH51,YH51..08S; LH71..GL198508-198708

BROWN,BROWN

main74223-20020-34iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

BLUE,BLUE

main74223-95J00-06iLH51,YH51..07S198508-198708

BROWN,BROWN

74224CAP, DOOR ARMREST, LH

main74223-20020-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74223-20020-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74223-20020-26iLH51,YH51..08S198508-198708

BROWN,BROWN

main74223-20020-34iLH51,YH51..08S198508-198708

BLUE,BLUE

main74223-95J00-06iLH51,YH51..07S198508-198708

BROWN,BROWN

74225CAP, DOOR ARMREST, REAR RH

main74226-20010-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74226-20010-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74226-20010-24iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

BLUE,BLUE

main74226-20010-26iLH51,YH51..08S; LH71..GL198508-198708

BROWN,BROWN

74226CAP, DOOR ARMREST, REAR LH

main74225-20010-14iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main74225-20010-16iLH51,YH51..08S198401-198508

BROWN,BROWN

main74225-20010-24iLH51,YH51..08S198508-198708

BLUE,BLUE

main74225-20010-26iLH51,YH51..08S198508-198708

BROWN,BROWN

74310VISOR ASSY, RH

main74310-95J04-03iLH50,51,YH51..SRF..08S198212-198708

GRAY,GRAY

main74310-95J04-06iLH51,YH51..SRF..08S198508-198708

BROWN,BROWN

main74310-95J04-08iLH5#,YH51..SRF..08S198212-198508

IVORY,IVORY

main74310-95J06-03iLH50,YH51..MRF198212-198401

GRAY,GRAY

main74310-95J06-08iLH50,YH51..MRF198212-198401

IVORY,IVORY

main74310-95J07-03iLH5#,6#,YH50,61..GL; LH5#,YH51..SRF..09S198212-198508

GRAY,GRAY

main74310-95J07-08iLH5#,6#,7#,YH5#,6#,71..DLX,GL; LH5#,YH51..SRF..CTM198212-198508

IVORY,IVORY

main74310-95J11-03iLH51,YH51..MRF198401-198508

GRAY,GRAY

main74310-95J11-06iLH51,YH51..MRF..08S198508-198708

BROWN,BROWN

main74310-95J11-08iLH51,YH51..MRF198401-198508

IVORY,IVORY

main74310-95J11-13iLH51,YH51..MRF..08S198508-198708

GRAY,GRAY

main74310-95J14-06iLH51..07S198508-198708

BROWN,BROWN

main74310-95J15-06iYH51..07S198508-198708

BROWN,BROWN

main74310-95J20-08iLH5#,6#,YH5#,61..CTD,DLX,GL; LH71,YH71..VSG198508-198708

IVORY,IVORY

main74310-95J24-03iLH51,YH51..CTM198508-198708

GRAY,GRAY

main74310-95J24-06iLH61,71,YH71..15S198508-198605

BROWN,BROWN

main74320-95J08-08iYH50,61..STD198212-198508

IVORY,IVORY

74320VISOR ASSY, LH

main74320-95J04-03iLH50,51,YH51..SRF..08S198212-198708

GRAY,GRAY

main74320-95J04-06iLH51,YH51..SRF..08S198508-198708

BROWN,BROWN

main74320-95J04-08iLH5#,YH51..SRF..08S198212-198508

IVORY,IVORY

main74320-95J06-03iLH50,YH51..MRF..08S198212-198401

GRAY,GRAY

main74320-95J06-08iLH50,YH51..MRF..08S198212-198401

IVORY,IVORY

main74320-95J08-03iLH5#,6#,YH50,61..GL; LH5#,YH51..SRF..09S198212-198508

GRAY,GRAY

main74320-95J08-08iLH5#,6#,7#,YH5#,6#,71..DLX,GL; LH5#,YH51..SRF..CTM198212-198508

IVORY,IVORY

main74320-95J09-03iLH50,YH51..MRF..09S198212-198401

GRAY,GRAY

main74320-95J09-08iLH50,YH51..MRF..09S198212-198401

IVORY,IVORY

main74320-95J12-03iLH51,YH51..MRF198401-198508

GRAY,GRAY

main74320-95J12-06iLH51,YH51..MRF..08S198508-198708

BROWN,BROWN

main74320-95J12-08iLH51,YH51..MRF198401-198508

IVORY,IVORY

main74320-95J12-13iLH51,YH51..MRF..08S198508-198708

GRAY,GRAY

main74320-95J16-06iLH51,YH51..07S198508-198708

BROWN,BROWN

main74320-95J23-03iLH51,YH51..CTM198508-198708

GRAY,GRAY

main74320-95J23-06iLH61,71,YH71..15S198508-198708

BROWN,BROWN

main74320-95J26-08iLH5#,6#,YH5#,61..DLX,GL; LH71,YH71..VSG198508-198708

IVORY,IVORY

74326COVER, VISOR HOLE

main74325-95J00-08iLH51,61,YH50,6#..CTD,STD198212-198708

IVORY,IVORY

74348HOLDER, VISOR

main74348-12010-03×2iLH5#,6#,YH50,61..GL; LH5#,YH51..WG198212-198508

GRAY,GRAY

main74348-12010-08×2iLH5#,6#,7#,YH5#,6#,71198212-198508

IVORY,IVORY

main74348-12010-23×2iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

GRAY,GRAY

main74348-12010-25×2iLH71;LH5#,6#,YH5#,6#,71..CTD,DLX,SCL,SCM198508-198708

BEIGE,BEIGE

74371BPLUG, HOLE (FOR VISOR HANGER)

main90950-01314iLH51,61,YH50,6#..CTD,STD198212-198606

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-95J00-03×2iLH50,60,YH50,61..GL; LH50,YH51..WG198212-198401

GRAY,GRAY

main74610-95J00-04×2iLH5#,61,YH50,61..GL; LH51,YH51..WG198401-198508

BLUE GRAY,BLUE

main74610-95J00-05×2iLH5#,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

main74610-95J00-08×2iLH50,60,70,YH5#,61,71198212-198401

IVORY,IVORY

main74610-95J00-14×2iLH51,61,YH5#,61..CTM,GL,SCM198508-198509

BLUE,BLUE

main74610-95J00-15×2iLH71,YH71;LH51,YH51..07S,08S198509-198708

BEIGE,BEIGE

main74610-95J00-16×2iLH71;LH51,61,YH5#,6#,71..CTD,DLX,SCL,SCM198508-198509

BROWN,BROWN

74603BCLIP (FOR ASSIST GRIP)

main90467-05004-08×4iYH61..DLX..10S198303-198401

LIGHT DUTY,IVORY,IVORY

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-10020-08iLH5#,6#,7#,YH50,61,71..V4D..06S; LH5#,YH51..DLX..09S; LH6#,7#,YH61,71..09S; LH6#,7#,YH71..15S; LH6#,YH61..10S198212-198508

IVORY,IVORY

main74610-10020-13iLH5#,YH51..DLX..09S; LH50,6#,YH50,61..V4D..GL..06S; LH6#,YH61..GL..09S198212-198508

GRAY,GRAY

main74610-12030-06×3iLH51,61,71,YH50,61,71..V4D..06S; LH51,YH51..DLX..09S; LH61,71,YH61,71..DLX..09S; LH61,71,YH71..15S; LH61,YH61..10S198508-198708

BROWN,BROWN

main74610-12030-23×2iLH61,YH61..GL..09S198508-198708

GRAY,GRAY

main74610-20030-08×4iLH5#,YH51..CTM,SCM198212-198508

IVORY,IVORY

main74610-20030-13×4iLH5#,YH51..CTM,SCM198212-198508

GRAY,GRAY

main74610-20040-03×4iLH51,YH51..CTM,SCM198508-198708

GRAY,GRAY

main74610-20040-05×4iLH51,YH51..08S198508-198708

BEIGE,BEIGE

main74610-22010-15×4iLH51,YH51..07S198508-198708

BEIGE,BEIGE

74604CPLUG, HOLE (FOR ASSIST GRIP)

main74617-14010-08×2iLH5#,6#,7#,YH50,61,71..V4D..06S; LH5#,YH51..WG; LH6#,7#,YH61,71..09S; LH6#,7#,YH71..15S; LH6#,YH61..10S198212-198508

IVORY,IVORY

main74617-14010-13×2iLH5#,YH51..WG; LH50,6#,YH50,61..V4D..GL..06S; LH6#,YH61..GL..09S198212-198508

GRAY,GRAY

main74617-16010-15×4iLH51,61,71,YH50,61,71..V4D..06S; LH51,YH51..WG..(DLX,SCM); LH61,71,YH61,71..DLX..09S; LH61,71,YH71..15S; LH61,YH61..10S198508-198708

BEIGE,BEIGE

main74617-16010-23×4iLH51,YH51..CTM,SCM; LH61,YH61..GL..09S198508-198708

GRAY,GRAY

main74617-30020-06×8iLH51,YH51..07S198508-198708

BROWN,BROWN

74613PLUG, ASSIST GRIP

main74617-95J00-03×4iLH56,66198608-198708

GRAY,GRAY

main74617-95J00-04×4iLH5#,61,YH50,61..GL; LH51,YH51..WG198401-198508

BLUE GRAY,BLUE

main74617-95J00-05×4iLH5#,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

main74617-95J00-08×4iLH50,60,70,YH5#,61,71198212-198401

IVORY,IVORY

main74617-95J00-14×4iLH51,61,YH5#,61..CTM,GL,SCM198508-198509

BLUE,BLUE

main74617-95J00-15×4iLH71,YH71;LH51,YH51..07S,08S198509-198708

BEIGE,BEIGE

main74617-95J00-16×4iLH71;LH51,61,YH5#,6#,71..CTD,DLX,SCL,SCM198508-198509

BROWN,BROWN

74631HOOK, COAT, A

main74631-14010-08×2iLH50,YH51..08S198212-198309

RR,IVORY,IVORY

main74631-14010-23×2iLH50,YH51..08S198212-198309

RR,GRAY,GRAY

74645ESCUTCHEON, DOOR ASSIST GRIP

main74615-95701-04×2iLH50,YH51..CTM,SCM198212-198401

BLUE GRAY,BLUE

main74615-95701-14iLH51,YH51..CTM198508-198708

LH,BLUE,BLUE

main74615-95701-16×2iLH50,YH51..CTM,SCM198212-198401

BROWN,BROWN

main74615-95701-26iLH61..10S198508-198708

TAXI SPEC,LH,BROWN,BROWN

main74615-95J00-04×4iLH5#,6#,YH50,61..GL; LH5#,YH51..DLX..09S198212-198508

BLUE GRAY,BLUE

main74615-95J00-05×4iLH50,60,70,YH5#,61,71..DLX,GL,STD198212-198401

BEIGE,BEIGE

main74615-95J00-06×4iLH5#,6#,71,YH5#,6#,71..CTD,DLX198508-198708

BROWN,BROWN

main74615-95J00-14×2iLH5#,6#,YH5#,61..GL198508-198708

LH,BLUE,BLUE

main74615-95J00-15×4iLH5#,61,71,YH5#,6#,71..DLX,GL,STD198401-198508

BEIGE,BEIGE

74681RETAINER, ASSIST GRIP, UPPER

main74681-90C00×4iLH70,YH71..09S,15S198212-198401

74710EXTINGUISHER ASSY

main74710-95J00iLH60,70,YH71..15S198212-198401

main74710-95J03iLH61,71,YH71..15S198401-198508

main74710-95J05iLH71,YH71..DLX..15S198407-198508

HANDY CAB

main74710-95J06iLH61,71,YH71..15S198508-198708

74710ABRACKET, EXTINGUISHER

main74712-95J01iLH60,61,7#,YH71..15S198212-198708

74810PULL ASSY, DOOR, INSIDE

main69285-95J00-04×2iLH5#,6#,YH50,61..GL; LH5#,YH51..DLX..09S198212-198508

BLUE GRAY,BLUE

main69285-95J00-05×2iLH50,60,70,YH5#,61,71..DLX,GL,STD198212-198401

BEIGE,BEIGE

main69285-95J00-06×2iLH5#,6#,71,YH5#,6#,71..CTD,DLX; LH71..GL198508-198708

BROWN,BROWN; LH,BROWN,BROWN

main69285-95J00-14iLH5#,6#,YH5#,61..GL198508-198708

LH,BLUE,BLUE

main69285-95J00-15×2iLH5#,61,71,YH5#,6#,71..DLX,GL,STD198401-198508

BEIGE,BEIGE

main74630-95700-04×2iLH51,YH51..CTM198401-198508

BLUE GRAY,BLUE

main74630-95700-14iLH51,YH51..CTM198508-198708

LH,BLUE,BLUE

main74630-95700-16×2iLH50,YH51..CTM,SCM198212-198401

BROWN,BROWN

main74630-95700-26iLH61..10S198508-198708

TAXI SPEC,LH,BROWN,BROWN

9015260005

main90152-60005

9015960084

main90159-60084

9015960085

main90159-60085

9015960188

main90159-60188

9016460006

main90164-60006

9018906018

main90189-06018

9018906070

main90189-06070

9046706013

main90467-06013

9161640616

main91616-40616

9323046020

main93230-46020

9351046020

main93510-46020

34 parts on this diagram · 2 diagrams in section
