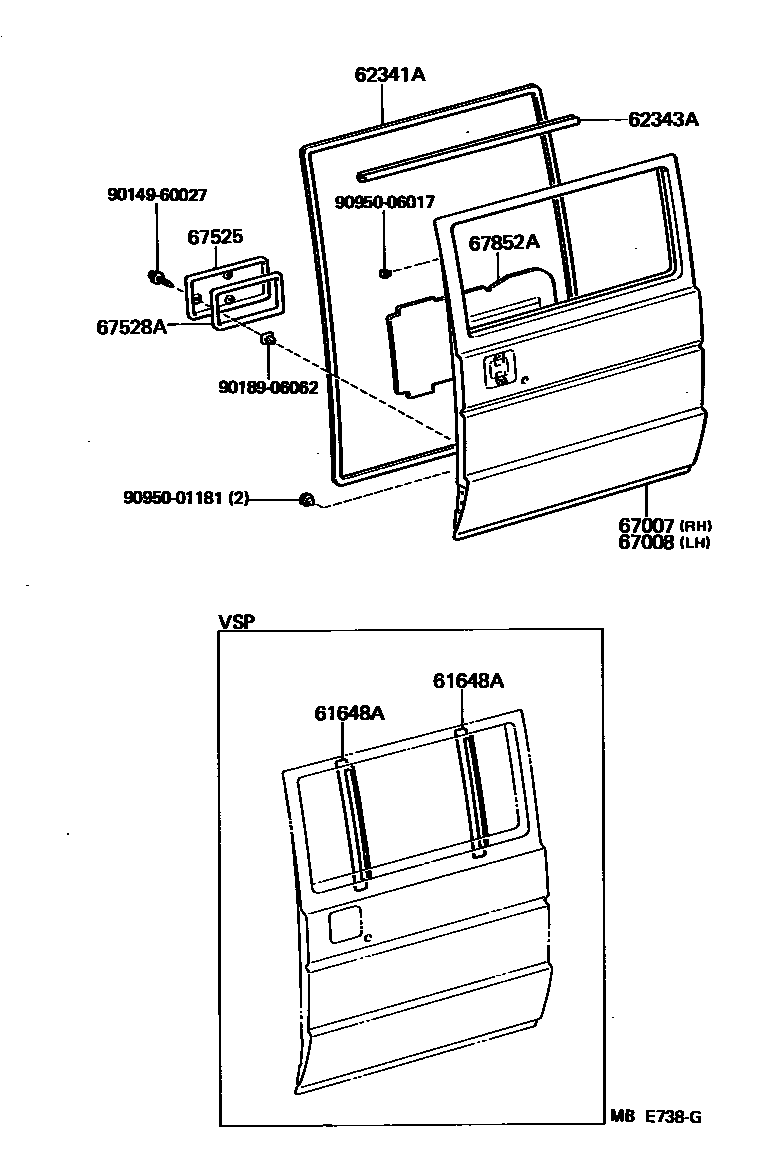

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

61648AREINFORCEMENT, SLIDE DOOR WINDOW

main61645-95J00×2iLH50,51,60,61,YH61..VSP198212-198708

62341AWEATHERSTRIP, SLIDE DOOR, NO.1

main62341-95J02×2iLH5#,6#,71,YH5#,6#,71..CTD,DLX198508-198708

main62341-95J04iLH51,YH51..08S198502-198502

EVENT

main67871-95J00-04×2iLH51,61,YH5#,61..CTM,GL,SCM198508-198510

BLUE,BLUE

main67871-95J00-06×2iLH51,YH51..07S,08S; LH71..GL198508-198510

BROWN,BROWN

main67871-95J01-04×2iLH51,61,YH5#,61..CTM,GL,SCM198508-198510

COLD SPEC,BLUE,BLUE

main67871-95J01-06×2iLH51,YH51..07S,08S; LH71..GL198510-198708

BROWN,BROWN

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-95J00×2iLH5#,6#,7#,YH5#,6#,71198212-198708

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-95J00iLH50,60,YH50,61..V5D198212-198401

main67003-95J01iLH50,60,YH50,61..V5D198212-198401

W/*EL

main67003-95J06iLH5#,61,YH50,61..V5D198401-198508

main67003-95J07iLH5#,6#,YH50,51,61..V5D..GL198401-198708

W/*EL

main67003-95J10iLH61,YH61..GL198410-198410

GL EXTRA

main67003-95J15iLH5#,6#,YH5#,61..V5D; YH61..10S198508-198708

SUPER CUSTOM TAXI SPEC

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-95J00iLH50,60,70,YH50,61,71..VSG; LH50,60,70,YH51,61,71..(COM,WG)..(DLX,STD)198212-198401

main67004-95J01iLH50,60,70,YH50,61,71..VSG; LH50,60,YH51,61..WG..DLX198212-198401

W/*EL

main67004-95J04iLH50,YH51..CTM; LH70..GL198212-198401

main67004-95J05iLH50,YH51..CTM,SCM198212-198401

W/*EL

main67004-95J06iLH50,60,YH61..VSP198212-198401

main67004-95J07iLH50,60,YH61..VSP198212-198401

W/*EL

main67004-95J12iLH5#,61,71,YH50,52,6#,71..VSG; LH51,61,71,YH51,61,71..(COM,WG)..(DLX,STD)198401-198508

main67004-95J13iLH5#,6#,YH50,51,61..GL198401-198708

W/*EL

main67004-95J15iLH51,YH51..CTM; LH71..GL198401-198708

main67004-95J16iLH61,YH61..GL198410-198410

GL EXTRA

main67004-95J17iLH50,61,YH61..VSP198401-198508

main67004-95J27iLH51,YH51..07S,08S198501-198708

W/*EL

main67004-95J28iLH5#,6#,71,YH5#,6#,71..VSG; LH51,61,71,YH51,61,71..(COM,WG)..DLX198508-198708

main67004-95J29iLH51,61,YH61..VSP198508-198708

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-95J00×4iLH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD198212-198708

main67525-95J01×2iLH50,51,YH51..CTM,SCL,SCM198212-198708

67528APACKING, SLIDE DOOR LOWER COVER

main67528-95J00×4iLH5#,6#,7#,YH5#,6#,71198212-198708

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-95J00×2iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD198212-198708

main67852-95J01iLH50,51,YH51..07S,08S198212-198708

9014960027

main90149-60027

9018906062

main90189-06062

9095001181

main90950-01181

9095006017

main90950-06017

12 parts on this diagram · 3 diagrams in section
