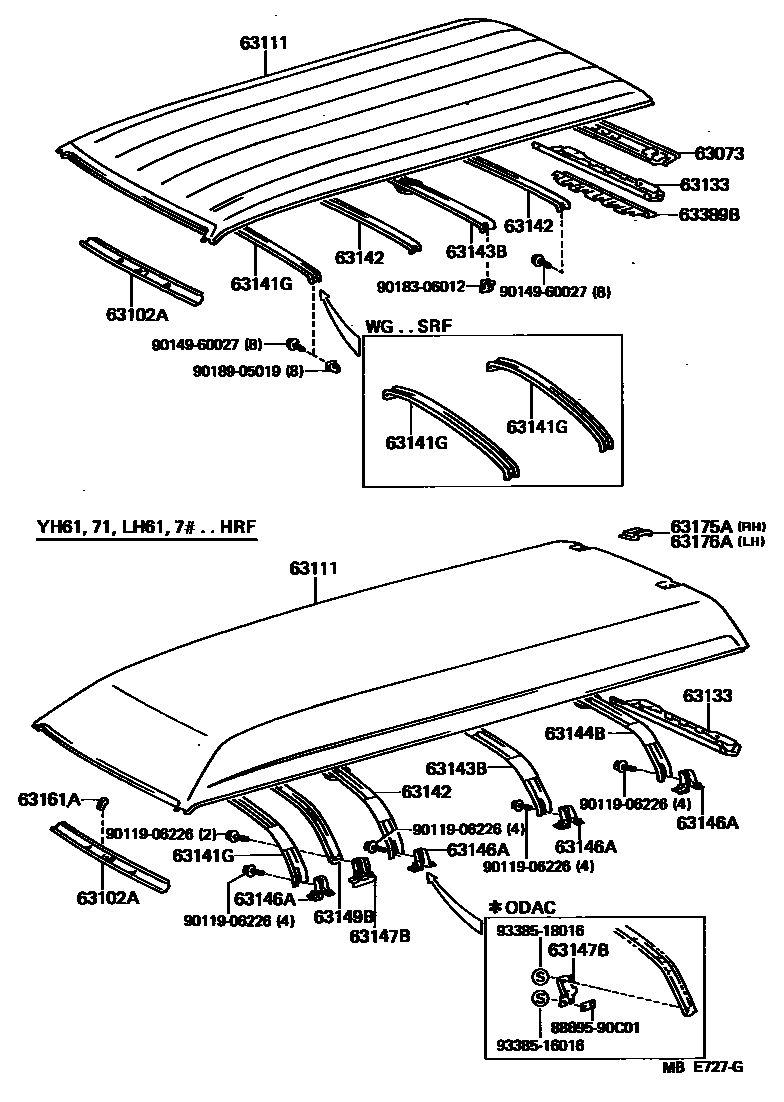

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-95J00iLH5#,6#,YH5#,6#..SRF198212-198508

main63073-95J01iLH50,51,YH51..MRF198212-198708

main63073-95J02iLH5#,6#,YH5#,6#..SRF198508-198708

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63122-95J00iLH50,51,YH51..MRF..(07S,08S)198212-198708

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD198212-198708

main63102-95J01iLH50,51,YH51..WG..SRF198212-198708

main63102-95J02iLH50,51,YH51..MRF..(07S,08S)198212-198708

main63102-95J03iLH50,YH51..MRF..09S198212-198401

63111PANEL, ROOF

main63111-90C00iLH7#,YH71198212-198708

main63111-95J00iLH5#,YH5#..SRF198212-198708

main63111-95J01iLH6#,YH6#..SRF198212-198708

main63111-95J02iLH50,51,YH51..MRF..(07S,08S)198212-198708

main63111-95J03iLH50,YH51..MRF..09S198212-198401

main63111-95J04iLH61,YH61..HRF198401-198708

63133FRAME, BACK WINDOW OPENING, UPPER

main63071-90C01iLH61,7#,YH61,71..HRF198212-198708

main63133-95J00iLH5#,6#,YH5#,6#..SRF..(CTD,DLX,GL,STD)198212-198708

main63133-95J02iLH50,51,YH51..CTM,SCL,SCM198212-198708

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-90C02iLH70,YH71..06S198212-198401

main63103-90C03iLH7#,YH71..09S,15S198212-198708

main63103-95J02iLH61,71,YH61,71..HRF..06S198401-198508

main63103-95J03iLH61,71,YH61,71..HRF..06S198401-198508

W/CURTAIN SEPARATOR

main63103-95J04iLH71,YH71..09S198401-198508

W/CURTAIN SEPARATOR

main63103-95J05iLH61,71,YH61,71..HRF..06S198508-198708

main63103-95J06iLH61,71,YH61,71..HRF..06S198508-198708

W/CURTAIN SEPARATOR

main63141-95J00iLH50,51,60,61,YH51,61..(COM,WG)..(DLX,STD)198212-198708

main63141-95J01iLH5#,6#,YH50,52,6#..V..SRF198212-198508

main63141-95J02×2iLH50,YH51..MRF..09S198212-198401

main63141-95J03×2iLH5#,6#,YH51,61..DLX..(09S,15S); LH5#,YH51..SRF..(CTM,SCM)198212-198508

*ODAC

main63141-95J04iLH5#,6#,YH50,52,6#..V..SRF198212-198508

W/CARTAIN SEPARATOR

main63141-95J10iLH5#,6#,YH5#,61..SRF..(03S,05S,06S)198508-198708

main63141-95J11iLH51,61,YH5#,61..SRF..(03S,05S,06S)198508-198708

W/CURTAIN SEPARATOR

main63141-95J15×2iLH51,YH51..SRF..(CTM,SCM)198508-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-90C00iLH61,7#,YH61,71..HRF..VSG198212-198708

main63104-90C01iLH7#,YH71..15S198212-198708

main63142-95J00×2iLH5#,6#,YH5#,6#..SRF198212-198708

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-90C00iLH71,YH71..09S198508-198708

main63105-90C01iLH7#,YH71..15S198212-198708

main63105-95J00iLH5#,6#,YH50,52,6#..V..SRF198212-198508

main63105-95J01iLH50,51,60,61,YH51,61..(COM,WG)..SRF..(4HC,5H)198212-198708

main63105-95J02iLH50,51,YH51..SRF..08S198212-198708

main63105-95J03iLH61,YH61..SRF..V5D..06S198401-198508

W/RR HEATER

main63105-95J04iLH61,YH61..HRF..WT198401-198508

W/RR HEATER

main63105-95J05iLH5#,6#,YH5#,61..SRF..(05S,06S)198508-198708

main63105-95J06iLH61,71,YH61,71..HRF..06S198508-198708

main63105-95J07iLH6#,YH61..SRF..V5D..(05S,06S)198508-198708

W/RR HEATER

main63105-95J08iLH61,YH61..HRF..WT198508-198708

W/RR HEATER

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63106-90C00iLH61,7#,YH61,71..HRF198212-198708

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-90C00×8iLH61,7#,YH61,71..HRF198212-198708

63147BBRACKET, ROOF PANEL REINFORCEMENT, NO.1 REAR

main63147-90C00×2iLH7#,YH71..15S198212-198708

main88688-90C00×2iLH7#,YH71..09S198212-198708

W/*ODAC

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-90C00iLH7#,YH71..15S198212-198708

main88895-90C00iLH7#,YH71..09S198212-198708

W/*ODAC

63161ASPACER, WINDSHIELD HEADER

main63161-95J00×2iLH61,YH61..HRF198401-198708

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-90C00iLH61,7#,YH61,71..HRF198212-198708

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-90C00iLH61,7#,YH61,71..HRF198212-198708

63389BRETAINER, ROOF HEADLINING TRIM, CENTER

main63389-95J00iLH50,51,YH51..CTM,SCL,SCM198212-198708

8889590C01HOLDER, FUSE

main88895-90C01

9011906226

main90119-06226

9014960027

main90149-60027

9018306012

main90183-06012

9018905019

main90189-05019

9338516016

main93385-16016

9338518016

main93385-18016

23 parts on this diagram · 4 diagrams in section
