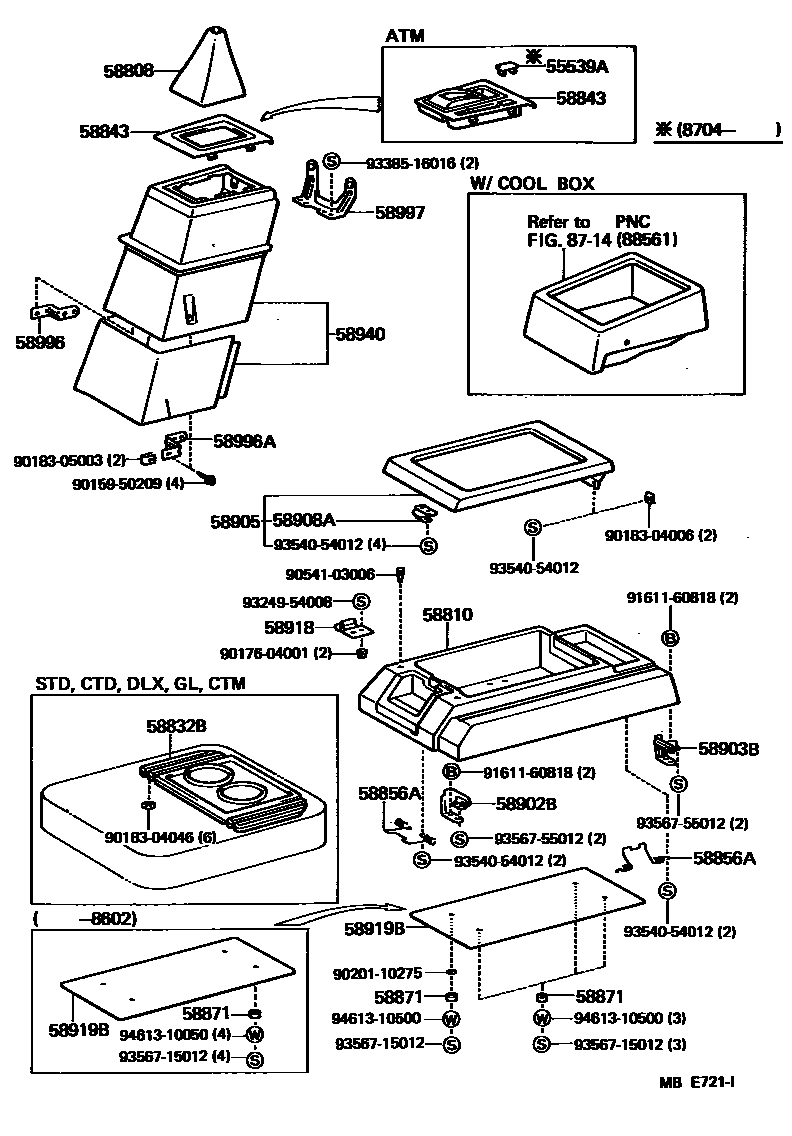

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-32010iLH51,YH51..WG..4FC198704-198708

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-95J00iLH50,YH51..5F198212-198401

main58840-95J01iLH51,YH51..5F..08S198401-198708

main58840-95J02iLH56,66198608-198708

58810CONSOLE ASSY

main58811-95J00-04iLH5#,YH51..08S198212-198508

BLUE GRAY,BLUE

main58811-95J00-06iLH5#,YH51..08S198212-198508

BROWN,BROWN

main58811-95J00-14iLH5#,6#,YH5#,61..(GL,SCM)..(05S,08S)198508-198708

BLUE,BLUE

main58811-95J00-16iLH61..10S198608-198708

TAXI SPEC,BROWN,BROWN

main58811-95J00-16iLH56,66..DLX198508-198708

BROWN,BROWN

main58811-95J01-04iLH51,YH51..MRF198401-198508

W/*PC,BLUE,BLUE

main58811-95J01-06iLH51,YH51..MRF198401-198508

W/*PC,BROWN,BROWN

main58811-95J01-14iLH51,YH51..MRF..08S198508-198708

W/*PC,BLUE,BLUE

main58811-95J01-16iLH51,YH51..MRF198508-198708

W/*PC,BROWN,BROWN

58832BPLATE, CENTER SEATBACK CONSOLE

main58832-95J00-04iLH5#,YH51..09S198212-198508

BLUE GRAY,BLUE

main58832-95J00-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

BEIGE,BEIGE

main58832-95J00-06iLH5#,YH51..CTM198212-198508

BROWN,BROWN

main58832-95J00-14iLH61,YH61..GL..09S198508-198708

BLUE,BLUE

main58832-95J00-16iLH51,61,71,YH50,6#,71..V..(CTD,DLX)198508-198708

STD PACKAGE,BROWN,BROWN

main58832-95J00-16iLH51,61,71,YH50,6#,71..V..(CTD,DLX)198508-198708

BROWN,BROWN

main58832-95J00-24iLH51,YH51..CTM198508-198708

BLUE,BLUE

main58832-95J00-26iLH51,61,71,YH51,61,71..(COM,WG)..(DLX,GL)198508-198708

BROWN,BROWN

58843BEZEL, SHIFTING HOLE

main58843-95J00iLH50,51,YH51..5F..08S198212-198708

main58843-95J01iLH50,51,YH51..WG..4FC198212-198708

58856AHOLDER, CONSOLE BOX

main58856-95J00iLH61..10S198608-198708

TAXI SPEC,SIDE

main58856-95J00iLH50,51,YH51..08S198212-198708

SIDE

main58856-95J01iLH50,51,YH51..08S198212-198708

FR

main58856-95J01iLH61..10S198608-198708

TAXI SPEC,FR

58871CUSHION, CONSOLE BOX

main58871-95J00iLH61..10S198608-198708

TAXI SPEC

main58871-95J00iLH50,51,YH51..08S198305-198708

main90540-10005iLH50,YH51..08S198212-198305

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-95J00iLH5#,YH51..08S198212-198708

main58902-95J01iLH5#,6#,YH5#,61..05S,08S198508-198708

main58902-95J01iLH61..10S198608-198708

TAXI SPEC

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-95J00iLH5#,YH51..08S198212-198708

main58903-95J01iLH61..10S198608-198708

TAXI SPEC

main58903-95J01iLH5#,6#,YH5#,61..05S,08S198508-198708

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-95J00-04iLH5#,YH51..08S198212-198508

BLUE GRAY,BLUE

main58905-95J00-06iLH5#,YH51..08S198212-198508

BROWN,BROWN

main58905-95J00-14iLH5#,6#,YH5#,61..(GL,SCM)..(05S,08S)198508-198708

BLUE,BLUE

main58905-95J00-16iLH56,66..DLX198608-198708

TAXI SPEC,BROWN,BROWN

main58905-95J00-16iLH61..10S198508-198708

BROWN,BROWN

main58905-95J01-06iLH51,YH51..07S198508-198708

BROWN,BROWN

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010iLH50,51,YH51..07S,08S198212-198708

main58908-12010iLH61..10S198608-198708

TAXI SPEC

58918SPRING, CONSOLE BOX STOPPER

main58918-95J00iLH50,51,YH51..08S198212-198708

main58918-95J00iLH61..10S198608-198708

TAXI SPEC

58919BPLATE, CONSOLE BOX

main58919-95J00iLH50,51,YH51..08S198212-198708

main58919-95J00iLH61..10S198608-198708

TAXI SPEC

58940CONSOLE ASSY, REAR

main58901-95J00-04iLH50,YH51..08S198212-198401

BLUE GRAY,BLUE

main58901-95J00-06iLH50,YH51..08S198212-198401

BROWN,BROWN

main58901-95J01-04iLH51,YH51..08S198401-198508

BLUE GRAY,BLUE

main58901-95J01-06iLH51,YH51..08S198401-198508

BROWN,BROWN

main58901-95J01-14iLH51,YH51..08S198508-198708

BLUE,BLUE

main58901-95J01-16iLH51,YH51..08S198508-198708

BROWN,BROWN

main58901-95J03-04iLH51,YH51..08S198405-198406

LIVING SALOON EX,BLUE,BLUE

main58901-95J04-04iLH51,61,YH5#,61..05S198508-198708

BLUE,BLUE

main58901-95J05-06iLH51,YH51..07S198508-198708

BROWN,BROWN

main58911-95J00-04iLH56,66..GL198608-198708

BLUE,BLUE

main58911-95J00-06iLH56,66..DLX198608-198708

BROWN,BROWN

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95J00iLH50,51,YH51..07S,08S198212-198708

main58995-95J01iLH56,66198608-198708

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-95J00iLH50,51,YH51..07S,08S198212-198708

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-95J00iLH50,51,YH51..07S,08S198212-198708

main58997-95J01iLH56,66198608-198708

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

9015950209

main90159-50209

9017604001

main90176-04001

9018304006

main90183-04006

9018304046

main90183-04046

9018305003

main90183-05003

9020110275

main90201-10275

9054103006

main90541-03006

9161160818

main91611-60818

9324954008

main93249-54008

9338516016

main93385-16016

9354054012

main93540-54012

9356715012

main93567-15012

9356755012

main93567-55012

9461310050

main94613-10050

9461310500

main94613-10500

33 parts on this diagram · 3 diagrams in section
