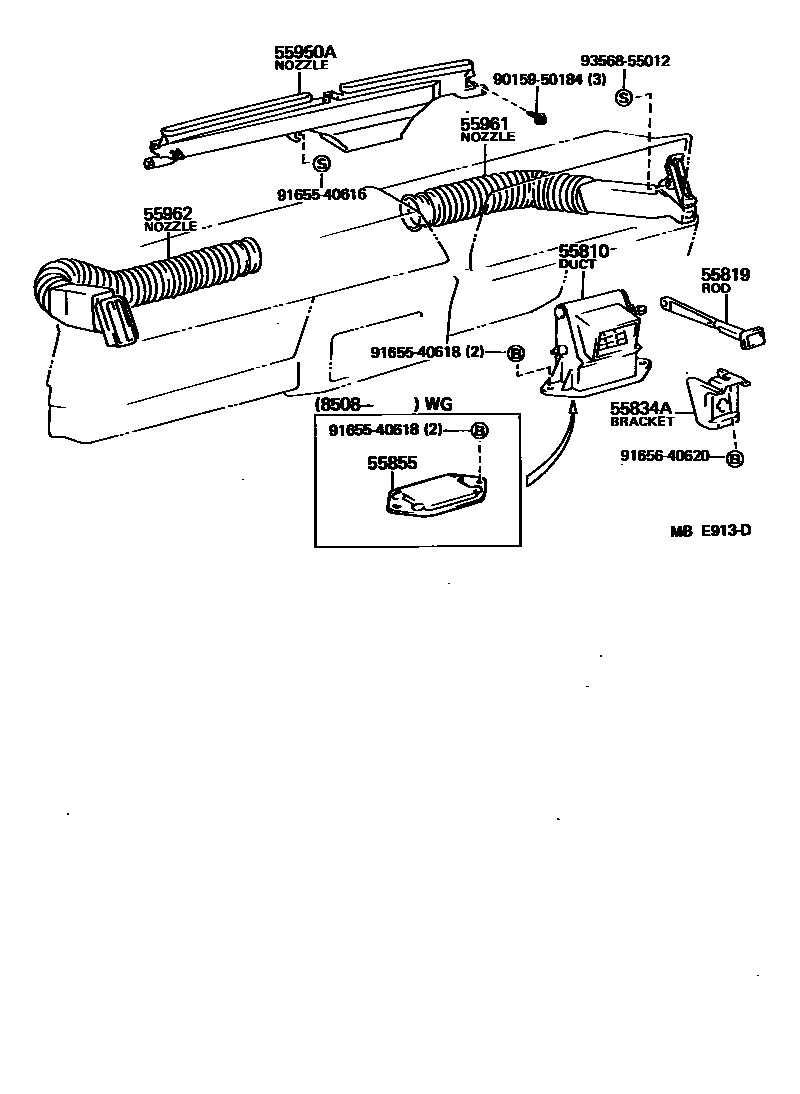

FRONT VENTILATOR

55810DUCT ASSY, SIDE VENTILATOR, RH

main55810-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

55819ROD, SIDE VENTILATOR CONTROL

main55819-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

55834ABRACKET, FOOT VENTILATOR CONTROL ROD

main55834-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

55855PLATE, FRONT VENTILATOR LOWER COVER SET

main55855-95J02iLH51,61,YH51,61..WG198508-198708

55950ANOZZLE ASSY, DEFROSTER

main55950-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55961NOZZLE, SIDE DEFROSTER, NO.1

main55970-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55962NOZZLE, SIDE DEFROSTER, NO.2

main55980-95J01iLH5#,6#,7#,YH5#,6#,71198212-198708

9015950184

main90159-50184

9165540616

main91655-40616

9165540618

main91655-40618

9165640620

main91656-40620

9356855012

main93568-55012

12 parts on this diagram · 1 diagram in section
