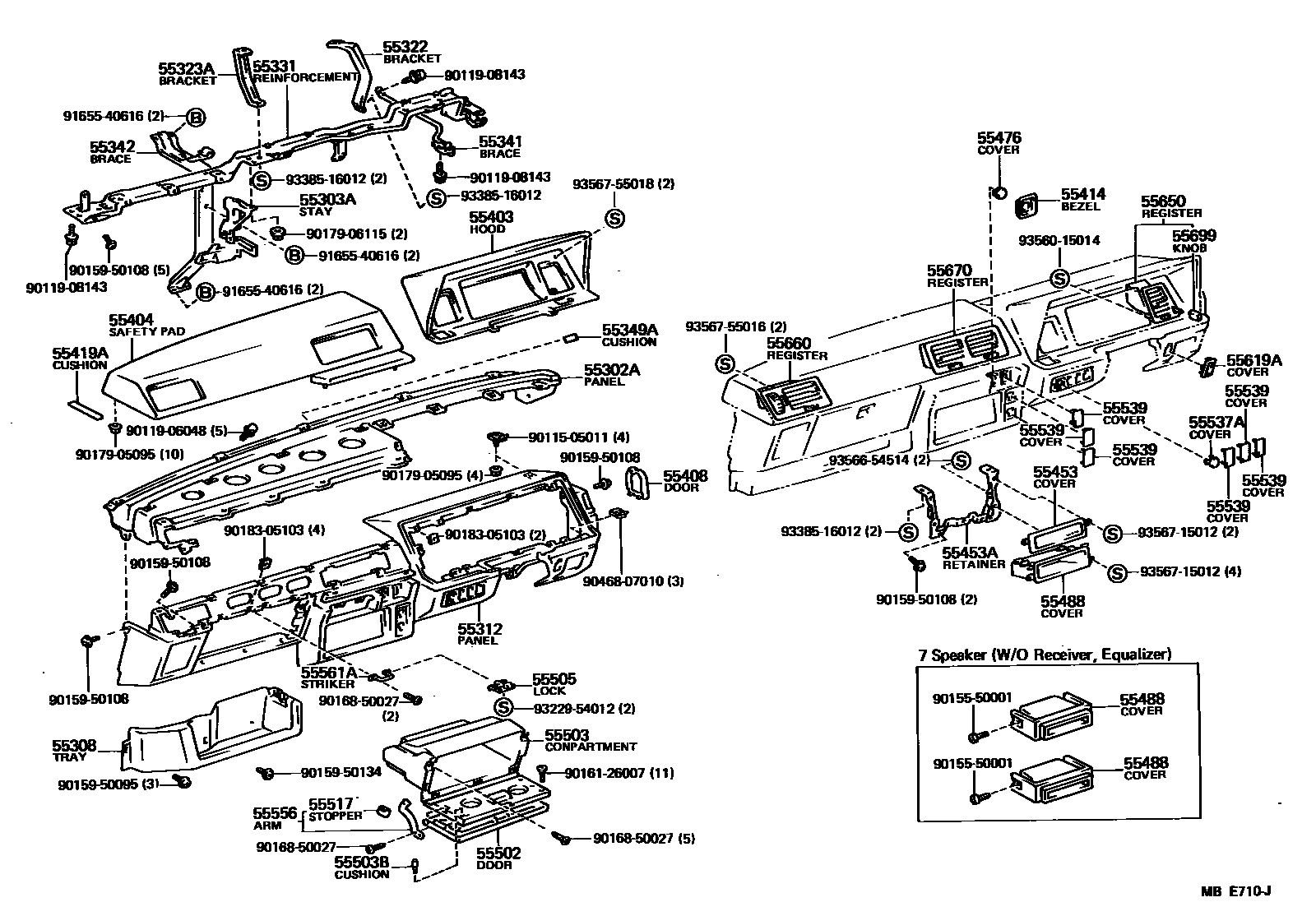

INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main55302-95J00-05iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

BEIGE,BEIGE

main55302-95J00-06iLH56,66..DLX198608-198708

BROWN,BROWN

main55302-95J00-14iLH5#,6#,YH5#,61..GL198508-198708

BLUE,BLUE

main55302-95J01-04iLH5#,YH51..WG198212-198508

BLUE GRAY,BLUE

main55302-95J01-05iLH5#,6#,YH51,61..WG..(DLX,STD)198212-198508

BEIGE,BEIGE

main55302-95J01-06iLH5#,YH51..CTM,SCM198212-198508

BROWN,BROWN

main55302-95J01-14iLH51,YH51..CTM,SCM198508-198708

BLUE,BLUE

main55302-95J01-16iLH51,61,YH51,61..WG..(DLX,SCL,SCM)198508-198708

BROWN,BROWN

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55312PANEL, INSTRUMENT, LOWER

main55312-95J00-04iLH5#,YH51..09S198212-198404

BLUE GRAY,BLUE

main55312-95J00-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

BEIGE,BEIGE

main55312-95J00-06iLH5#,YH51..CTM198212-198404

BROWN,BROWN

main55312-95J00-14iLH5#,YH51..08S198212-198404

L-BLUE,BLUE

main55312-95J00-16iLH5#,YH51..08S198212-198404

L-BROWN,BROWN

main55312-95J03-04iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

BLUE,BLUE

main55312-95J03-06iLH71;LH5#,6#,YH5#,6#,71..CTD,DLX,SCL,SCM198508-198708

BROWN,BROWN

55322BRACKET, INSTRUMENT PANEL, NO.1

main55322-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55331REINFORCEMENT, INSTRUMENT PANEL

main55307-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main55307-95J02iLH5#,6#,71,YH5#,6#,71198508-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55350-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main55350-95J02iLH5#,6#,71,YH5#,6#,71198508-198708

55349ACUSHION, INSTRUMENT PANEL

main55349-95702×2iLH5#,6#,7#,YH5#,6#,71198212-198708

55403HOOD SUB-ASSY, METER

main55403-95J00iLH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL198508-198708

main55403-95J03iLH51,YH51..07S,08S198508-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95J00-04iLH5#,6#,YH50,61..GL198212-198408

BLUE GRAY,BLUE

main55401-95J00-05iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198408

BEIGE,BEIGE

main55401-95J01-04iLH51,YH51..WG198404-198408

BLUE GRAY,BLUE

main55401-95J01-05iLH5#,6#,YH51,61..WG..(DLX,STD)198212-198408

BEIGE,BEIGE

main55401-95J01-06iLH51,YH51..CTM,SCM198404-198408

BROWN,BROWN

main55401-95J01-14iLH5#,YH51..08S198212-198404

LIGHT BLUE,BLUE

main55401-95J01-16iLH5#,YH51..08S198212-198404

LIGHT BROWN,BROWN

main55401-95J05-04iLH5#,61,YH50,61..GL198408-198508

BLUE GRAY,BLUE

main55401-95J05-05iLH5#,61,71,YH50,52,6#,71..COM,V198408-198508

BEIGE,BEIGE

main55401-95J05-06iLH56,66..DLX198608-198708

BROWN,BROWN

main55401-95J05-14iLH5#,6#,YH5#,61..GL198508-198708

BLUE,BLUE

main55401-95J06-04iLH51,YH51..WG198408-198508

BLUE GRAY,BLUE

main55401-95J06-05iLH51,61,YH51,61..WG..(DLX,STD)198408-198508

BEIGE,BEIGE

main55401-95J06-06iLH51,YH51..CTM,SCM198408-198508

BROWN,BROWN

main55401-95J06-24iLH51,YH51..CTM,SCM198508-198708

BLUE,BLUE

main55401-95J06-26iLH51,61,YH51,61..WG..(DLX,SCL,SCM)198508-198708

BROWN,BROWN

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55432-95J00-04iLH5#,60,YH50,51,61..GL,SCM; LH5#,YH51..09S198212-198508

BLUE GRAY,BLUE

main55432-95J00-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

BEIGE,BEIGE

main55432-95J00-06iLH5#,YH51..CTM,SCM198212-198508

BROWN,BROWN

main55432-95J00-24iLH5#,6#,YH5#,61..CTM,GL,SCM198508-198708

BLUE,BLUE

main55432-95J00-26iLH71;LH5#,6#,YH5#,6#,71..CTD,DLX,SCL,SCM198508-198708

BROWN,BROWN

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM198212-198708

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×3iLH5#,6#,7#,YH5#,6#,71198212-198708

55453COVER, RADIO TUNER OPENING

main55522-20040iYH50,61..STD198212-198508

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55509-95J00iYH50,61..STD198212-198508

main55690-95J00iYH61..10S198608-198708

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iYH50,61..STD198212-198508

BLACK,BLACK

main55477-95010-01iYH61..10S198602-198708

BLACK,BLACK

55488COVER, STEREO OPENING

main55521-22020iLH5#,6#,7#,YH5#,6#,71198212-198708

main55522-95J00×2iLH50,51,YH51..MRF..(07S,08S)198212-198708

7 SPEAKER

55502DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER

main55551-95J00-04iLH5#,6#,YH50,61..GL; LH5#,YH51..09S198212-198508

BLUE GRAY,BLUE

main55551-95J00-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

BEIGE,BEIGE

main55551-95J00-06iLH5#,YH51..CTM198212-198508

BROWN,BROWN

main55551-95J00-14iLH5#,6#,YH5#,61..CTM,GL198508-198708

BLUE,BLUE

main55551-95J00-16iLH71;LH5#,6#,YH5#,6#,71..CTD,DLX198508-198708

BROWN,BROWN

main55551-95J01-04iLH5#,YH51..08S198212-198508

L-BLUE,BLUE

main55551-95J01-06iLH5#,YH51..08S198212-198508

L-BROWN,BROWN

main55551-95J02-04iLH51,YH51..08S198508-198708

BLUE,BLUE

main55551-95J02-06iLH51,YH51..07S,08S198508-198708

BROWN,BROWN

55503COMPARTMENT SUB-ASSY, GLOVE

main55582-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iLH5#,6#,7#,YH5#,6#,71198212-198708

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-32010-05iLH5#,6#,7#,YH5#,6#,71..DLX,GL,STD198212-198508

BEIGE,BEIGE

main55560-32010-06iLH5#,YH51..CTM198212-198508

BROWN,BROWN

main55560-32010-14iLH5#,6#,YH50,61..GL; LH5#,YH51..09S198212-198508

BLUE GRAY,BLUE

main55560-32010-24iLH5#,6#,YH5#,61..CTM,GL198508-198708

BLUE,BLUE

main55560-32010-26iLH71;LH5#,6#,YH5#,6#,71..CTD,DLX198508-198708

BROWN,BROWN

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iLH5#,6#,7#,YH5#,6#,71198212-198708

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-01iYH5#,6#,71198508-198708

BLACK,BLACK

main55537-95J00-01iYH5#,6#,71198212-198508

BLACK,BLACK

55539COVER, SPARE SWITCH HOLE

main55539-95J00-01×6iLH5#,6#,7#,YH5#,6#,71198212-198708

BLACK,BLACK

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iLH5#,6#,7#,YH5#,6#,71198212-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J00iLH5#,6#,7#,YH5#,6#,71198212-198708

55619ACOVER, SWITCH HOLE, NO.2

main55538-95J00-04iLH5#,YH51..DLX..09S198212-198508

BLUE GRAY,BLUE

main55538-95J00-05iLH5#,6#,7#,YH5#,6#,71..DLX,STD198212-198508

BEIGE,BEIGE

main55538-95J00-06iLH5#,6#,71,YH50,6#,71..CTD,DLX198508-198708

BROWN,BROWN

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J00iLH50,60,70,YH5#,61,71198212-198401

main55650-95J02iLH5#,61,71,YH5#,6#,71198401-198508

main55650-95J04iLH5#,6#,71,YH5#,6#,71198508-198708

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95J00-04iLH50,60,YH50,61..GL198212-198401

BLUE GRAY,BLUE

main55660-95J00-05iLH50,60,70,YH50,61,71..COM,V198212-198401

BEIGE,BEIGE

main55660-95J02-04iLH50,YH51..WG198212-198401

BLUE GRAY,BLUE

main55660-95J02-05iLH50,60,YH51,61..WG..(DLX,STD)198212-198401

BEIGE,BEIGE

main55660-95J02-06iLH50,YH51..CTM,SCM198212-198401

BROWN,BROWN

main55660-95J04-04iLH5#,61,YH50,61..GL198401-198508

BLUE GRAY,BLUE GRAY

main55660-95J04-05iLH5#,61,71,YH50,52,6#,71..COM,V198401-198508

BEIGE,BEIGE

main55660-95J05-04iLH51,YH51..WG198401-198508

BLUE GRAY,BLUE GRAY

main55660-95J05-05iLH51,61,YH51,61..WG..(DLX,STD)198401-198508

BEIGE,BEIGE

main55660-95J05-06iLH51,YH51..CTM,SCM198401-198508

BROWN,BROWN

main55660-95J08-04iLH5#,6#,YH5#,61..GL198508-198708

BLUE,BLUE

main55660-95J08-06iLH51,61,71,YH5#,6#,71..COM,V198508-198708

BROWN,BROWN

main55660-95J09-04iLH51,YH51..CTM,SCM198508-198708

BLUE,BLUE

main55660-95J09-06iLH51,61,YH51,61..WG..(DLX,SCL,SCM)198508-198708

BROWN,BROWN

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95J00-04iLH5#,6#,YH50,61..GL198212-198508

BLUE GRAY,BLUE

main55670-95J00-05iLH5#,6#,7#,YH50,52,6#,71..COM,V; LH5#,6#,YH51,61..WG..(DLX,STD)198212-198508

BEIGE,BEIGE

main55670-95J00-06iLH56,66..DLX198608-198708

BROWN,BROWN

main55670-95J00-14iLH5#,6#,YH5#,61..GL198508-198708

BLUE,BLUE

main55670-95J01-04iLH5#,YH51..WG198212-198508

BLUE GRAY,BLUE

main55670-95J01-06iLH5#,YH51..CTM,SCM198212-198508

BROWN,BROWN

main55670-95J01-14iLH51,YH51..CTM,SCM198508-198708

BLUE,BLUE

main55670-95J01-16iLH51,61,YH51,61..WG..(DLX,SCL,SCM)198508-198708

BROWN,BROWN

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55905-12050-01iLH5#,6#,7#,YH5#,6#,71198212-198708

BLACK,BLACK

9011505011

main90115-05011

9011906048

main90119-06048

9011908143

main90119-08143

9015550001

main90155-50001

9015950095

main90159-50095

9015950108

main90159-50108

9015950134

main90159-50134

9016126007

main90161-26007

9016850027

main90168-50027

9017905095

main90179-05095

9017906115

main90179-06115

9018305103

main90183-05103

9046807010

main90468-07010

9165540616

main91655-40616

9322954012

main93229-54012

9338516012

main93385-16012

9356015014

main93560-15014

9356654514

main93566-54514

9356715012

main93567-15012

9356755016

main93567-55016

9356755018

main93567-55018

54 parts on this diagram · 1 diagram in section
