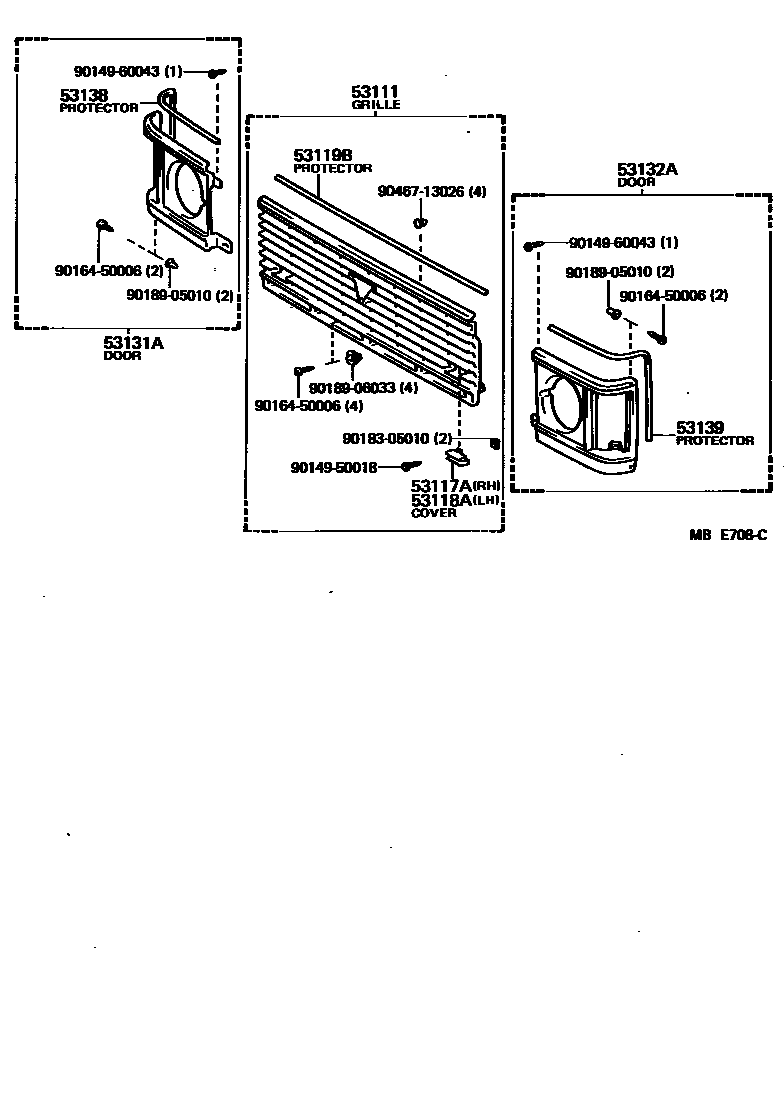

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

53111GRILLE, RADIATOR

main53111-29205iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

main53111-29215iLH5#,6#,7#,YH50,61..GL198212-198508

main53111-29225iLH50,60,YH51,61..WG198212-198401

BLACK(6A9,6H3,149,4D6,2M3)

main53111-29235iLH50,60,YH51,61..WG198212-198401

SILVER(8A1,8A7)

main53111-95J07-04iLH51,YH51..08S198405-198406

LIVING SALOON EX,BLUE,BLUE

main53111-95J08iLH51,YH51..08S198410-198410

LIVING SALOON EX,BROWN

main53111-95J09iLH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX)198508-198708

main53111-95J10iLH5#,6#,71,YH5#,61..GL198508-198708

main53111-95J11iLH51,61,YH51,61..WG..(09S,10S)198508-198708

main53111-95J12iLH51,YH51..07S,08S198508-198708

main53111-95J13iLH51,YH51..08S198502-198502

EVENT,SILVER

53117ACOVER, RADIATOR GRILLE SERVICE HOLE, RH

main53117-95J00iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main53117-95J01iLH5#,6#,YH51,61..WG198212-198508

53118ACOVER, RADIATOR GRILLE SERVICE HOLE, LH

main53118-95J00iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

53119BPROTECTOR, RADIATOR GRILLE

main53119-95J00iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main53119-95J01iLH5#,6#,YH51,61..WG198212-198508

main53119-95J02iLH5#,6#,71,YH5#,6#,71198508-198708

53131ADOOR, HEADLAMP, RH

main53130-29155iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

main53130-29165iLH5#,6#,7#,YH50,61..GL198212-198508

main53130-29175iLH5#,6#,YH51,61..WG..(09S,10S)198212-198508

main53130-29185iLH5#,YH51..08S198212-198508

main53130-95J05iLH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX)198508-198708

main53130-95J06iLH5#,6#,71,YH5#,61..GL198508-198708

main53130-95J07iLH51,61,YH51,61..WG..(09S,10S)198508-198708

main53130-95J08iLH51,YH51..07S,08S198508-198708

53132ADOOR, HEADLAMP, LH

main53140-29155iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

main53140-29165iLH5#,6#,7#,YH50,61..GL198212-198508

main53140-29175iLH5#,6#,YH51,61..WG..(09S,10S)198212-198508

main53140-29185iLH5#,YH51..08S198212-198508

main53140-95J05iLH5#,6#,71,YH50,6#,71..(COM,V)..(CTD,DLX)198508-198708

main53140-95J06iLH5#,6#,71,YH5#,61..GL198508-198708

main53140-95J07iLH51,61,YH51,61..WG..(09S,10S)198508-198708

main53140-95J08iLH51,YH51..07S,08S198508-198708

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-95J00iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

L=370

main53138-95J01iLH5#,6#,YH51,61..WG198212-198508

L=380

main53138-95J02iLH51,61,71,YH5#,6#,71..COM,V198508-198605

main53138-95J03iLH5#,6#,71,YH5#,6#,71198605-198708

main53148-95J00iLH5#,6#,YH51,61..WG198212-198508

L=295

main53148-95J01iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

L=295

53139PROTECTOR, HEADLAMP DOOR, LH

main53138-95J00iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

L=370

main53138-95J01iLH5#,6#,YH51,61..WG198212-198508

L=380

main53138-95J02iLH51,61,71,YH5#,6#,71..COM,V198508-198605

main53138-95J03iLH5#,6#,71,YH5#,6#,71198605-198708

main53149-95J00iLH5#,6#,YH51,61..WG198212-198508

L=295

main53149-95J01iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

L=295

9014950018

main90149-50018

9014960043

main90149-60043

9016450006

main90164-50006

9018305010

main90183-05010

9018905010

main90189-05010

9018906033

main90189-06033

9046713026

main90467-13026

15 parts on this diagram · 4 diagrams in section
