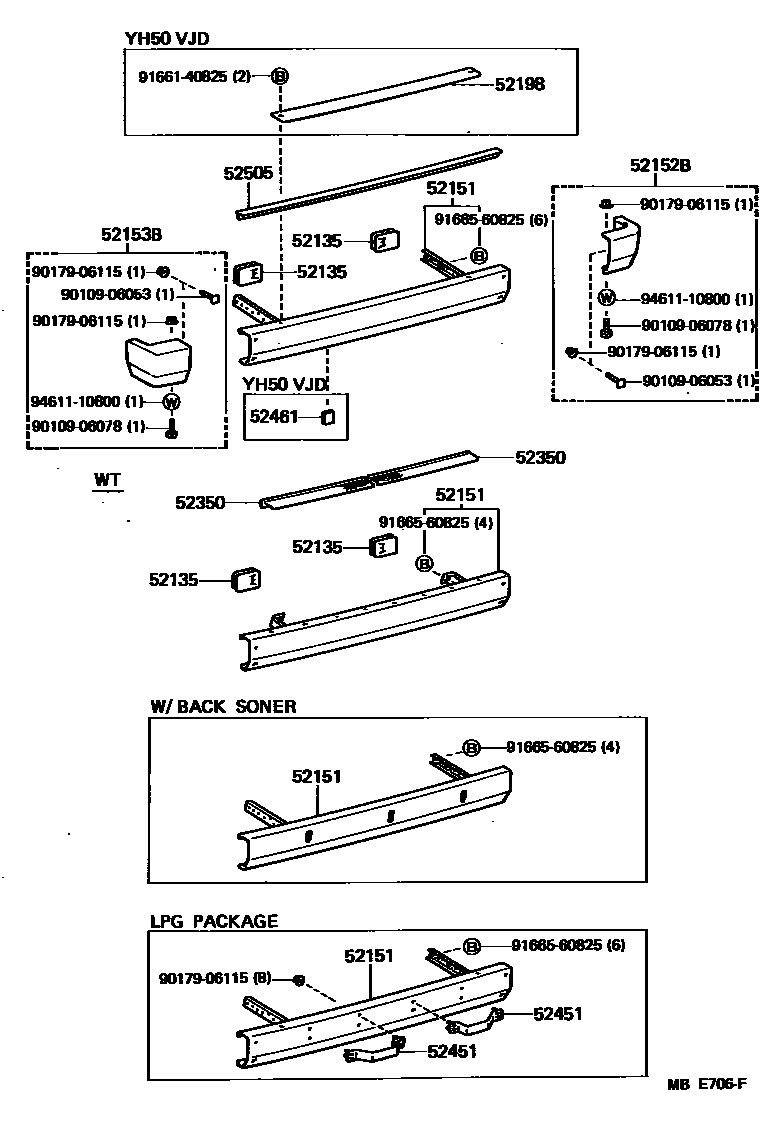

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0005 1

52135GROMMET, REAR BUMPER STAY

main52191-95A00×2iLH5#,6#,7#,YH5#,6#,71198212-198708

52151BUMPER ASSY, REAR

main52019-29035iLH5#,71,YH5#,71..COM,V198410-198708

main52019-29045iLH6#,YH6#..ST198212-198708

main52019-29055iLH60,61,YH61..WT198212-198708

main52019-29065iLH51,YH51..DLX..09S198508-198708

main52019-29075iYH50..V4D..03S198401-198410

main52019-95J08iYH50,61..LPG198311-198708

LPG PACKAGE

main52019-95J12iLH56..GL198608-198708

W/*BS

main52019-95J13iLH61..10S198601-198708

W/*BS

52152BEXTENSION, REAR BUMPER, RH

main52165-29015iLH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD198212-198508

52153BEXTENSION, REAR BUMPER, LH

main52166-29015iLH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD198212-198508

52198RETAINER, REAR BUMPER SEAL

main52199-95J01×2iYH50..V4D..03S198401-198410

52350STEP ASSY, REAR BUMPER

main52351-95J00iLH60,61,YH61..WT198212-198708

RH

main52352-95J00iLH60,61,YH61..WT198212-198708

LH

52451GUARD, REAR BUMPER

main52451-95J00×2iYH50,61..LPG198311-198708

LPG PACKAGE

52461PAD, REAR BUMPER, CENTER

main52461-95J01×2iYH50..V4D..03S198401-198410

52505FILLER SUB-ASSY, REAR BUMPER

main52354-95J00iLH5#,71,YH5#,71..CTD,DLX,GL198508-198708

main52354-95J01iLH50,YH51..CTM,SCM198212-198401

URETHANE BUMPER

9010906053

main90109-06053

9010906078

main90109-06078

9017906115

main90179-06115

9166140825

main91661-40825

9166560825

main91665-60825

9461110800

main94611-10800

15 parts on this diagram · 3 diagrams in section
