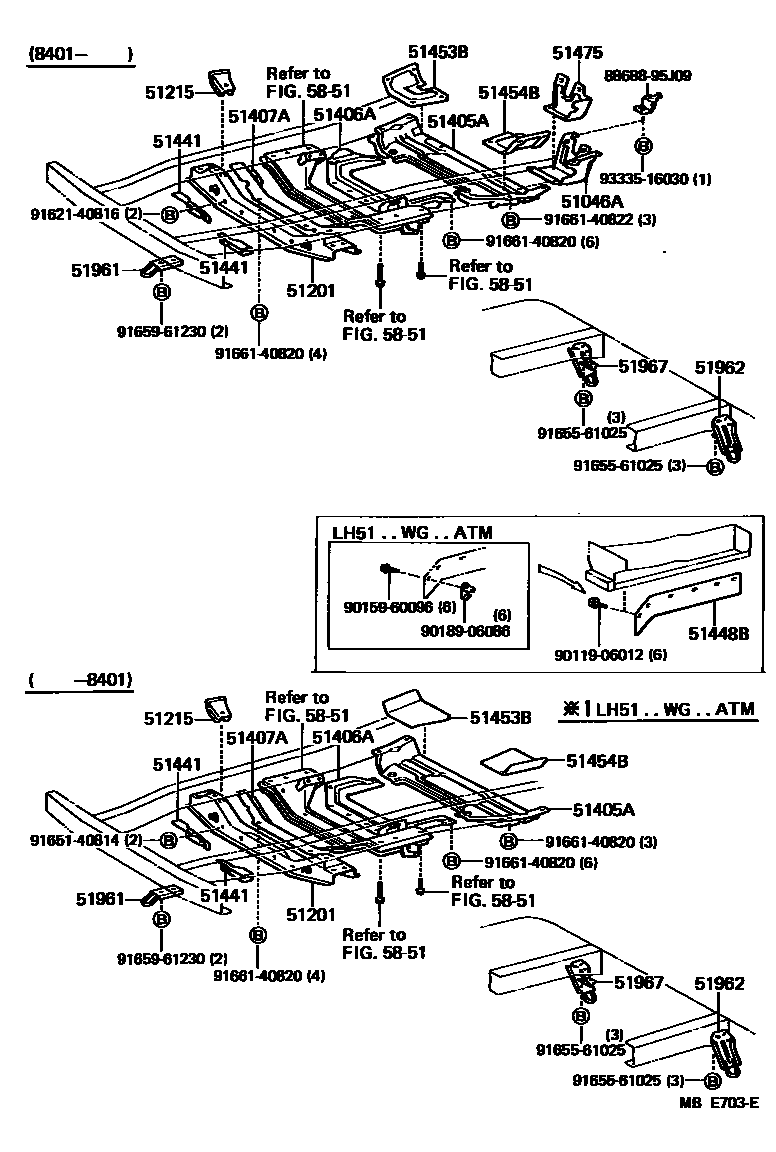

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51046ACOVER SUB-ASSY, ENGINE UNDER, NO.5

main51046-95J00iLH51..WG..ATM..DSL198401-198708

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main51203-95J02iLH56,66198608-198708

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

RH

main51216-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

LH

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-95J00iLH50..ATM198212-198401

main51405-95J01iLH51..WG..ATM198401-198508

main51405-95J02iLH51,61..ATM..DSL198508-198708

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-95J00iLH50..ATM198212-198401

main51406-95J01iLH51..WG..ATM198401-198508

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-95J00iLH50..ATM198212-198401

main51407-95J01iLH51..WG..ATM198401-198508

51441COVER, ENGINE UNDER, NO.1

main51444-95J00iLH50,51,60,61,7#198212-198708

RH

main51444-95J01iYH5#,6#,71198212-198708

RH

main51446-95J00iLH51,71..CTD,DLX; LH61..03S198508-198708

LH

main51446-95J01iYH5#,6#,71198212-198708

LH

main51446-95J02iLH50,51,60,61,7#198212-198708

LH,POWER STEERING

51448BSHUTTER, ENGINE REAR SIDE

main51448-95J00iLH50..ATM198212-198401

main51448-95J01iLH51..WG..ATM..DSL198401-198708

51453BSILENCER, ENGINE UNDER COVER, RH

main51453-95J00iLH5#..WG..ATM198212-198508

51454BSILENCER, ENGINE UNDER COVER, LH

main51454-95J00iLH50..ATM198212-198401

main51454-95J01iLH51..WG..ATM198401-198508

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-95J00iLH51..WG..ATM..DSL198401-198708

51961HOOK, NO.1

main51961-26080iLH5#,6#,7#,YH5#,6#,71198212-198508

main51961-26081iLH5#,6#,71,YH5#,6#,71..CTD,DLX,GL198602-198708

main51961-26090iLH51,YH51..CTM,SCL,SCM198508-198602

main51961-26091iLH51,YH51..CTM,SCL,SCM198602-198708

main51970-95J00iLH56,66198608-198708

RH

51962HOOK, NO.2

main51965-26020iLH50,51,YH51..WG198212-198708

51967HOOK, TRANSPORT, REAR

main51967-26010iLH50,51,YH51..WG198212-198708

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

8868895J09BRACKET, COOLER DIAPHRAGM

main88688-95J09

9011906012

main90119-06012

9015960096

main90159-60096

9018906086

main90189-06086

9162140816

main91621-40816

9165140814

main91651-40814

9165561025

main91655-61025

9165961230

main91659-61230

9166140820

main91661-40820

9166140822

main91661-40822

9333516030

main93335-16030

26 parts on this diagram · 2 diagrams in section
