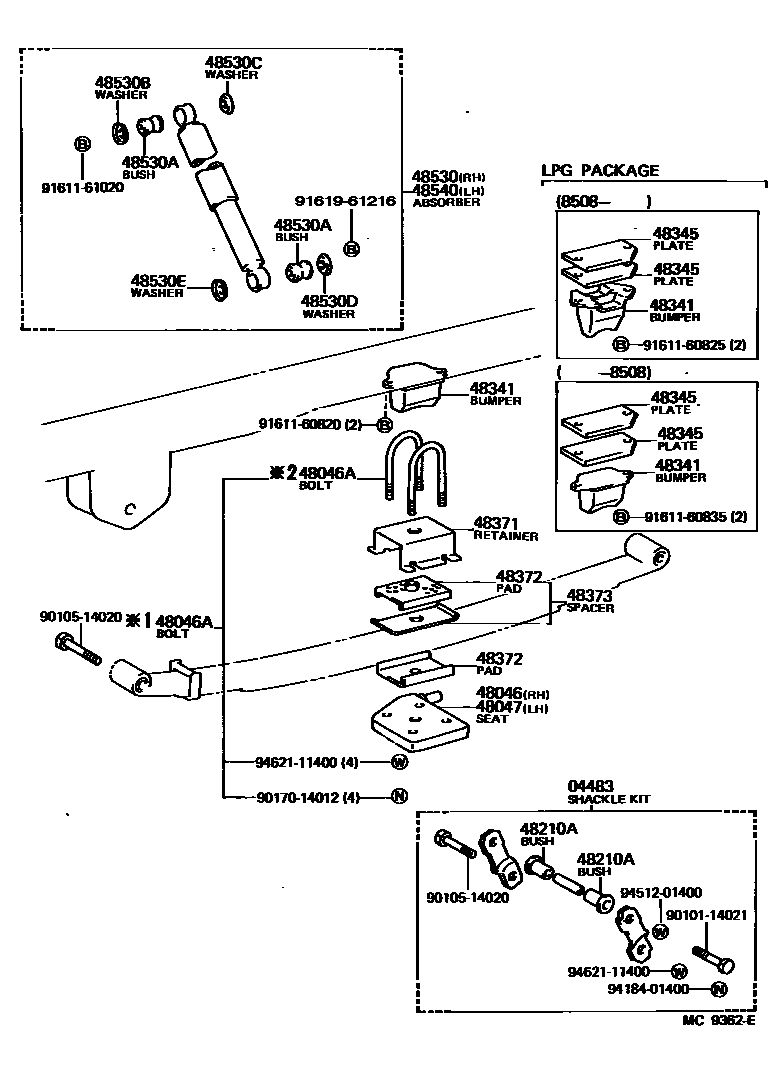

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

04483SHACKLE KIT, REAR SPRING

main04483-26021×2iLH56,66198608-198708

main04483-26060×2iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST; LH6#,YH61..10S198212-198508

main04483-26061×2iLH51,61,71,YH5#,6#,71..(COM,V)..ST; LH61,YH61..10S198508-198708

main04483-26070×2iLH6#,YH61..WT198212-198508

main04483-26071×2iLH61,YH61..WT198508-198708

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26050iLH50,60,70,YH50,61,71..(COM,V)..ST; LH60,YH61..10S198212-198401

main48046-26051iLH5#,61,71,YH5#,6#,71..(COM,V)..ST; LH61,YH61..10S198401-198608

main48046-26060iLH60,YH61..WT198212-198308

main48046-26061iLH6#,YH61..WT198308-198608

main48046-26090iLH5#,6#,71,YH5#,6#,71198608-198708

48046ABOLT, U(FOR REAR SPRING)

main90117-14050×4iLH56,66198608-198708

main90118-14201×4iLH6#,YH61..10S198212-198508

main90118-14202×4iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main90118-14203×4iLH60,61,YH61..WT198212-198708

main90118-14204×4iYH50,61..4H..LPG198311-198608

LPG PACKAGE

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26050iLH50,60,70,YH50,61,71..(COM,V)..ST; LH60,YH61..10S198212-198401

main48047-26051iLH5#,61,71,YH5#,6#,71..(COM,V)..ST; LH61,YH61..10S198401-198608

main48047-26060iLH60,YH61..WT198212-198308

main48047-26061iLH6#,YH61..WT198308-198608

main48047-26080iLH5#,6#,71,YH5#,6#,71198608-198708

48210SPRING ASSY, REAR RH

main48210-26250iLH50,51,YH50,51..V198212-198708

main48210-26260iLH60,61,YH61..V..ST198212-198708

main48210-26270iLH7#,YH71..VSG198212-198708

main48210-26280iLH60,61,YH61..WT198212-198708

main48210-26290iLH6#..15S198212-198508

main48210-26291iLH61..15S198508-198708

main48210-26300iLH7#,YH71..15S198212-198508

main48210-26301iLH71,YH71..15S198508-198708

main48210-26310iLH6#,YH61..10S198212-198508

main48210-26311iLH61,YH61..10S198508-198708

main48210-26330iYH50..4H..LPG198311-198708

LPG PACKAGE

main48210-26340iYH61..4H..LPG198311-198708

LPG PACKAGE

main48210-26350iYH52,62198401-198708

main48210-26450iLH56,66198608-198708

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008×4iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

main90385-18046×4iLH60,61,YH61..WT198212-198708

48341BUMPER, REAR SPRING

main48341-26010×2iLH50,51,60,61,7#,YH5#,6#,71..COM,V; LH60,61,YH61..10S198212-198708

main48341-26020×2iLH56,66198608-198708

main48341-26030×2iYH50,61..LPG198508-198708

LPG PACKAGE

48345PLATE, BUMPER SUB

main48345-26011×2iYH50,61..LPG198311-198508

LPG PACKAGE UPR

main48345-26020×2iYH50,61..LPG198311-198508

LPG PACKAGE LWR

48371RETAINER, REAR SPRING PAD

main48371-26050×2iLH50,51,60,61,7#,YH50,51,61,71..(COM,V)..ST198212-198708

main48371-26060×2iLH6#,YH61..10S198212-198508

main48371-26070×4iLH60,61,YH61..WT198212-198708

main48371-26080×2iYH50,61..4H..LPG198311-198708

LPG PACKAGE

main48371-26090×2iYH52,62198401-198708

main48371-26100×2iLH61,YH61..10S198508-198708

main48371-26110×2iLH56,66198608-198708

48372PAD, REAR SPRING

main48372-26020×4iLH60,61,YH61..WT198212-198708

main48372-26030×4iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main48372-26040×4iLH60,61,YH61..10S198212-198708

48373SPACER, REAR SPRING

main48037-26030×2iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main48037-26040×2iLH60,61,YH61..WT198212-198708

main48037-26050×2iLH60,61,YH61..10S198212-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-26081iLH51,YH51..WG198508-198708

main48531-26210iLH56,66198608-198708

main48531-80020iLH50,60,70,YH50,61,71..(COM,V)..ST198212-198401

main48531-80021iLH60,61,YH61..WT198212-198708

main48531-80022iLH50,YH51..WG198212-198401

main48531-80023iLH60,YH61..10S198212-198401

main48531-80039iLH51,YH51..WG198401-198508

main48531-80041iLH50,51,61,71,YH5#,6#,71..(COM,V)..ST198401-198708

main48531-80042iLH61,YH61..10S198401-198708

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×2iLH50,51,61,71,YH5#,6#,71..(COM,V)..ST; LH61,YH61..10S198401-198708

UPR

main90385-16007×4iLH56,66198608-198708

UPR

main90385-19001×2iLH50,51,61,71,YH5#,6#,71..(COM,V)..ST; LH61,YH61..10S198401-198708

LWR

main90385-19002×4iLH56,66198608-198708

LWR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×4iLH50,YH51..WG198212-198401

main90948-02076×4iLH51,YH51..WG198401-198708

main90948-03012×2iLH5#,6#,7#,YH5#,6#,71..COM,V; LH60,61,YH61..10S198212-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02017×2iLH50,YH51..WG198212-198401

main90948-02077×2iLH51,YH51..WG198401-198708

main90948-03004×2iLH5#,6#,7#,YH5#,6#,71..COM,V; LH60,61,YH61..10S198212-198708

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iLH6#,YH61..10S198212-198508

main90948-03015×2iLH5#,6#,71,YH5#,6#,71..(COM,V)..ST198401-198708

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLH61,YH61..WT198312-198708

main90948-03011×2iLH61,YH61..10S198508-198708

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-26081iLH51,YH51..WG198508-198708

main48531-26210iLH56,66198608-198708

main48531-80020iLH50,60,70,YH50,61,71..(COM,V)..ST198212-198401

main48531-80021iLH60,61,YH61..WT198212-198708

main48531-80022iLH50,YH51..WG198212-198401

main48531-80023iLH60,YH61..10S198212-198401

main48531-80039iLH51,YH51..WG198401-198508

main48531-80041iLH50,51,61,71,YH5#,6#,71..(COM,V)..ST198401-198708

main48531-80042iLH61,YH61..10S198401-198708

9010114021

main90101-14021

9010514020

main90105-14020

9017014012

main90170-14012

9161160820

main91611-60820

9161160825

main91611-60825

9161160835

main91611-60835

9161161020

main91611-61020

9161961216

main91619-61216

9418401400

main94184-01400

9451201400

main94512-01400

9462111400

main94621-11400

29 parts on this diagram · 11 diagrams in section
