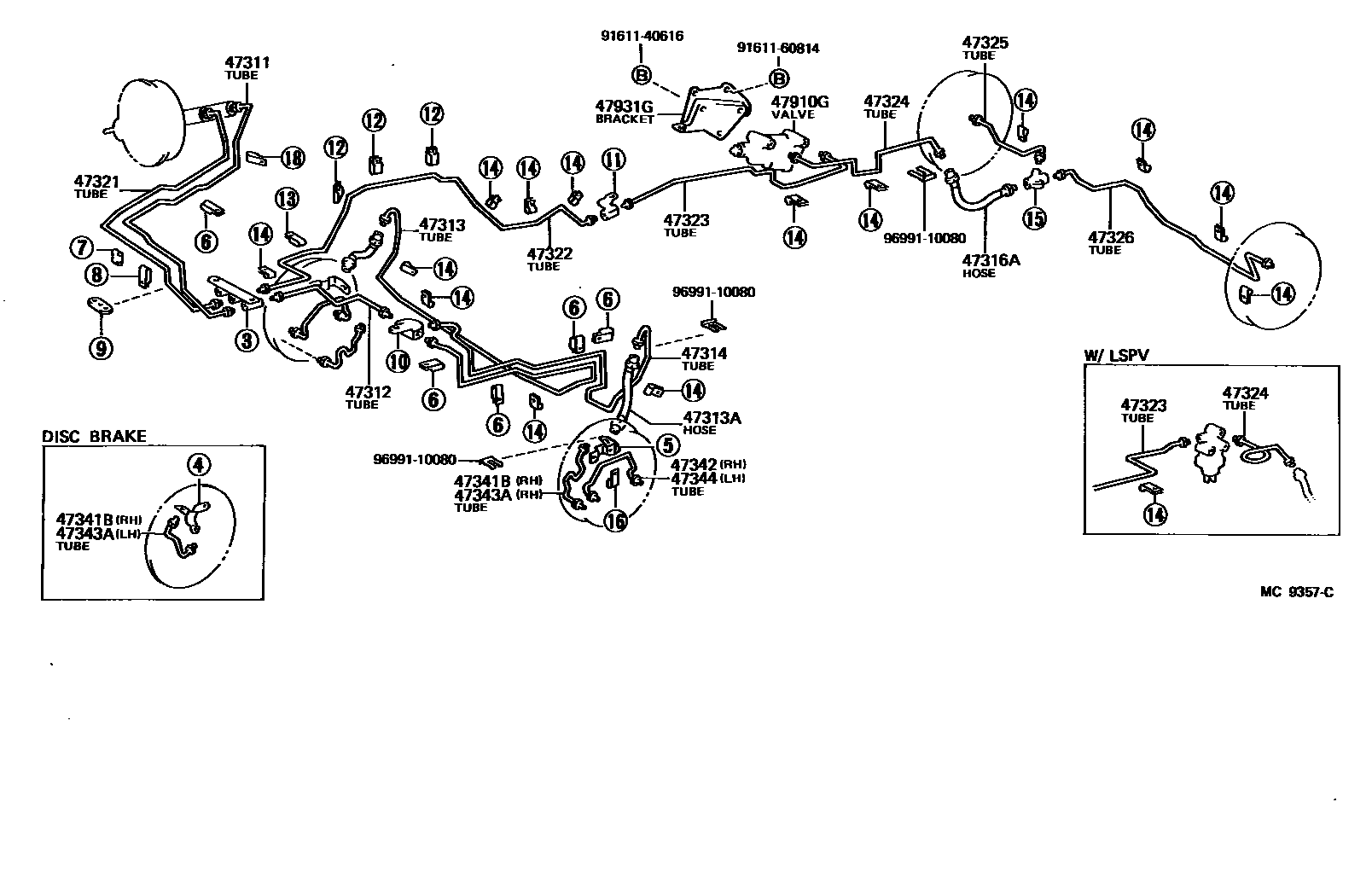

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26190iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main47311-26191iLH51,61,71,YH5#,6#,71..COM,V198508-198601

main47311-26192iLH51,61,71,YH5#,6#,71..COM,V198601-198708

main47311-26200iLH5#,6#,YH51,61..WG198212-198508

main47311-26201iLH51,61,YH51,61..WG198508-198708

main47311-26280iLH56,66198608-198708

47312TUBE, FRONT BRAKE, NO.2

main47312-26170iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main47312-26171iLH51,61,71,YH5#,6#,71..COM,V198508-198708

main47312-26180iLH5#,6#,YH51,61..WG198212-198508

main47312-26181iLH51,61,YH51,61..WG198508-198708

main47312-26230iLH56,66198608-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-26090iLH5#,6#,7#,YH5#,6#,71198212-198508

main47313-26091iLH51,61,71,YH5#,6#,71198508-198708

main47313-26120iLH56,66198608-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02436×2iLH5#,6#,7#,YH5#,6#,71198212-198508

main90947-02477×2iLH51,61,71,YH5#,6#,71198508-198708

main90947-02502×2iLH56,66198608-198708

47314TUBE, FRONT BRAKE, NO.4

main47314-26080iLH5#,6#,7#,YH5#,6#,71198212-198508

main47314-26081iLH51,61,71,YH5#,6#,71198508-198708

main47314-26120iLH56,66198608-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33205iLH50,51,60,61,7#,YH5#,6#,71..ST198212-198708

main96940-33505iLH56,66198608-198708

main96940-34305iLH60,61,YH61..WT198212-198708

47321TUBE, REAR BRAKE, NO.1

main47321-26100iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main47321-26101iLH51,61,71,YH5#,6#,71..COM,V198508-198708

main47321-26110iLH5#,6#,YH51,61..WG198212-198508

main47321-26111iLH51,61,YH51,61..WG198508-198708

main47321-26190iLH56,66198608-198708

47322TUBE, REAR BRAKE, NO.2

main47322-26090iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

main47322-26091iLH51,61,71,YH5#,6#,71..COM,V198508-198708

main47322-26100iLH6#,YH61..WT198212-198508

main47322-26101iLH61,YH61..WT198508-198708

main47322-26110iLH5#,6#,YH51,61..WG198212-198508

main47322-26111iLH51,61,YH51,61..WG198508-198708

main47322-26150iLH56,66198608-198708

47323TUBE, REAR BRAKE, NO.3

main47323-26160iLH5#,7#,YH50,52,71..DLX,STD198212-198411

main47323-26170iLH5#,YH50,52..V198212-198508

W/LSPV

main47323-26171iLH5#,YH5#..V198508-198708

main47323-26190iLH5#,YH51..WG198212-198508

main47323-26191iLH51,YH51..WG198508-198708

main47323-26200iLH6#,70,YH6#..(COM,V)..DLX..ST198212-198508

main47323-26210iLH6#,YH6#..(COM,V)..ST198212-198508

W/LSPV

main47323-26211iLH6#,YH6#..(COM,V)..ST198508-198708

main47323-26220iLH6#,YH61..10S198212-198508

main47323-26221iLH61,YH61..10S198508-198708

main47323-26230iLH61,YH61..MTM..WT198411-198508

main47323-26240iLH6#,YH61..WT198212-198508

W/LSPV

main47323-26241iLH61,YH61..WT198508-198708

main47323-26250iLH7#,YH71198212-198508

W/LSPV

main47323-26251iLH71,YH71198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-26090iLH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST198212-198411

main47324-26100iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

W/LSPV

main47324-26101iLH5#,6#,71,YH5#,6#,71..(COM,V)..ST198508-198708

main47324-26110iLH6#,YH61..WT198212-198411

main47324-26120iLH6#,YH61..WT198212-198508

W/LSPV

main47324-26121iLH61,YH61..WT198508-198708

main47324-26130iLH7#,YH71..DLX198212-198508

47325TUBE, REAR BRAKE, NO.5

main47325-26140iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

main47325-26150iLH6#,YH61..10S198212-198508

main47325-26151iLH61,YH61..10S198508-198708

main47325-26160iLH6#,YH61..WT198212-198508

main47325-26161iLH61,YH61..WT198508-198708

main47325-26170iLH5#,YH51..WG198212-198508

main47325-26171iLH51,YH51..WG198508-198708

main47325-26210iLH51,61,71,YH5#,6#,71..(COM,V)..ST198508-198708

main47325-26220iLH56,66198608-198708

47326TUBE, REAR BRAKE, NO.6

main47326-26120iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

main47326-26130iLH6#,YH61..10S198212-198508

main47326-26131iLH61,YH61..10S198508-198708

main47326-26140iLH6#,YH61..WT198212-198508

main47326-26141iLH61,YH61..WT198508-198708

main47326-26150iLH5#,YH51..WG198212-198508

main47326-26151iLH51,YH51..WG198508-198708

main47326-26200iLH51,61,71,YH5#,6#,71..(COM,V)..ST198508-198708

main47326-26210iLH56,66198608-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26030iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

FR DRUM BRAKE

main47341-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main47341-26060iLH51,61,71,YH5#,6#,71198508-198708

FR DISC BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26020iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198411-198508

FR DRUM BRAKE

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26020iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

FR DRUM BRAKE

main47343-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main47343-26060iLH51,61,71,YH5#,6#,71198508-198708

FR DISC BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-26010iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

FR DRUM BRAKE

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main47910-26030iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

FR DISC BRAKE

main47910-26090iLH51,61,71,YH5#,6#,71..COM,V198508-198603

FR DISC BRAKE

main47910-26091iLH5#,6#,71,YH5#,6#,71..COM,V198603-198708

FR DISC BRAKE

47910GVALVE ASSY, DECELERATION SENSING PROPORTIONING

main47910-26060iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

FR DRUM BRAKE

47931BRACKET, LOAD SENSING VALVE

main47931-26060iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47931-26070iLH60,61,YH61..WT198212-198708

47931GBRACKET, DECELERATION SENSING VALVE

main47931-26080iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

FR DRUM BRAKE

9161140616

main91611-40616

9161160814

main91611-60814

9699110080

main96991-10080

23 parts on this diagram · 6 diagrams in section
