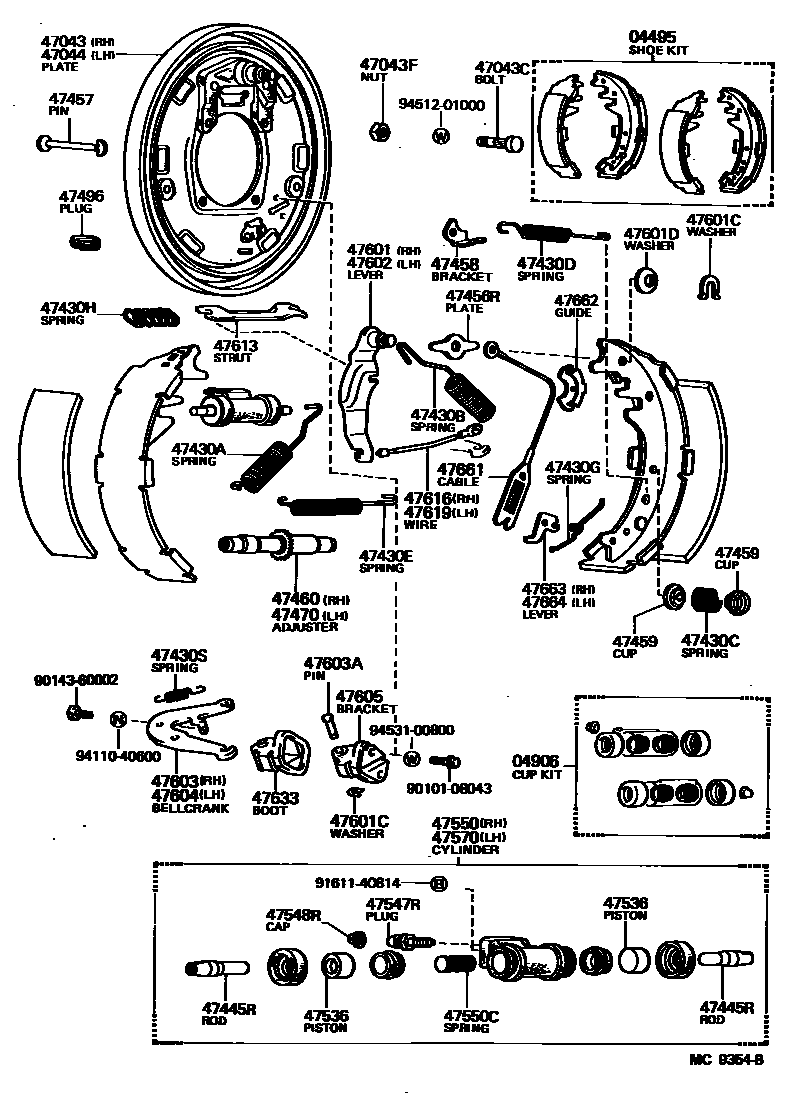

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

04495SHOE KIT, REAR BRAKE

main04495-26030iLH60,61,YH61..WT198212-198708

main04495-26050iLH56,66198608-198708

main04495-35051iLH50,51,61,71,YH5#,6#,71..(COM,V)..ST198412-198708

FR DISC BRAKE

main04495-35060iLH50,51,YH51..WG198212-198708

main04495-35100iLH50,61,71,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198412-198508

FR DRUM BRAKE

main04495-40020iLH60,61,YH61..10S198212-198708

main04497-26030iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

REBUILT

main04497-26040iLH60,61,YH61..WT198212-198708

REBUILT

main04497-26050iLH60,61,YH61..10S198212-198708

REBUILT

main04497-26060iLH50,51,YH51..WG198212-198708

REBUILT

main04497-26070iLH56,66198608-198708

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26030iLH6#,YH61..WT198212-198411

FR DRUM BRAKE

main04906-26040iLH60,61,YH61..WT198212-198708

FR DISC BRAKE

main04906-30100iLH50,51,60,61,YH51,61..WG198212-198708

main04906-31010iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198212-198508

FR DRUM BRAKE

main04906-35080iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

FR DISC BRAKE

main04906-60050iLH56,66198608-198708

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26030iLH6#,YH61..WT198212-198508

main47043-26031iLH61,YH61..WT198508-198708

main47043-26040iLH60,61,YH61..10S198212-198708

main47043-26050iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47043-26070iLH56,66198608-198708

main47043-35060iLH50,51,YH51..WG198212-198708

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-10028×8iLH60,61,YH61..WT198212-198708

main90114-10002×8iLH5#,6#,7#,YH5#,6#,71..ST198212-198708

main90114-10016×4iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041×8iLH5#,6#,7#,YH5#,6#,71..ST198212-198708

main94110-71000×8iLH60,61,YH61..WT198212-198708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26030iLH6#,YH61..WT198212-198508

main47044-26031iLH61,YH61..WT198508-198708

main47044-26040iLH60,61,YH61..10S198212-198708

main47044-26050iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47044-26070iLH56,66198608-198708

main47044-35050iLH50,51,YH51..WG198212-198708

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604×4iLH5#,6#,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main90501-20756×4iLH60,61,YH61..WT;LH50,51,60,61,YH51,61..WG198212-198708

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main90506-18031×2iLH56,66198608-198708

main90506-20005×2iLH50,51,60,61,YH51,61..WG198212-198708

main90506-23010×2iLH60,61,YH61..WT198212-198708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iLH50,51,60,61,YH51,61..WG198212-198708

main90506-16343×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main90506-26011iLH56,66198608-198708

RH

main90506-26014iLH56,66198608-198708

LH

main90506-26159×2iLH60,61,YH61..WT198212-198708

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iLH56,66198608-198708

main90508-20261iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

RH

main90508-20262iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

LH

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-14003×2iLH60,61,YH61..WT198212-198708

main90504-18012×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

47445RROD, REAR WHEEL CYLINDER

main47538-35010×4iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLH50,51,60,61,7#,YH5#,6#,71..COM,V198212-198708

main47447-30020×4iLH50,51,60,61,YH51,61..WG198212-198708

47458BRACKET, REAR BRAKE SHOE RETURN SPRING

main47457-35020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

RH

main47458-35020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

LH

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLH5#,6#,7#,YH5#,6#,71198212-198708

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35010iLH50,YH51..WG198212-198308

main47061-35020iLH50,51,YH51..WG198308-198708

main47061-60011iLH56,66198608-198708

main47062-35010iLH60,YH61..10S198212-198308

main47062-35020iLH60,61,YH61..10S198308-198708

main47405-30020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47460-28010iLH6#,YH61..WT198212-198508

main47460-28011iLH61,YH61..WT198508-198708

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-35010iLH60,YH61..10S198212-198308

main47061-35020iLH60,61,YH61..10S198308-198708

main47062-35010iLH50,YH51..WG198212-198308

main47062-35020iLH50,51,YH51..WG198308-198708

main47062-60011iLH56,66198608-198708

main47406-30020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47470-28010iLH6#,YH61..WT198212-198508

main47470-28011iLH61,YH61..WT198508-198708

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLH56,66198608-198708

main47491-35040×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47491-36010×2iLH60,61,YH61..WT198212-198708

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iLH50,51,60,61,YH51,61..WG198212-198708

main47531-20071×4iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

FR DISC BRAKE

main47531-26040×4iLH61,YH61..MTM..WT198411-198508

main47531-26070×4iLH51,61,71,YH5#,6#,71..(COM,V)..ST198508-198708

FR DISC BRAKE

main47531-31011×4iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198212-198508

FR DRUM BRAKE

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLH50,51,60,61,YH51,61..WG198212-198708

main47547-26010×2iLH50,51,60,61,7#,YH50,52,6#,71..COM,V198212-198708

main47547-60020×2iLH56,66198608-198708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLH5#,6#,7#,YH5#,6#,71198212-198708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iLH51,61,71,YH5#,6#,71..(COM,V)..ST198508-198708

FR DISC BRAKE

main47550-29265iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

FR DISC BRAKE

main47550-29275iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198212-198508

FR DRUM BRAKE

main47550-29285iLH6#,YH61..WT198212-198411

FR DRUM BRAKE

main47550-29295iLH60,61,YH61..WT198212-198708

FR DISC BRAKE

main47550-30130iLH51,61,YH51,61..WG198608-198708

main47550-39275iLH5#,6#,YH51,61..WG198212-198608

main47550-60120iLH56,66198608-198708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH50,51,60,61,YH51,61..WG198212-198708

FR DISC BRAKE

main47509-22010×2iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198212-198508

FR DRUM BRAKE

main47509-60010×2iLH56,66198608-198708

main90501-07006×2iLH60,61,YH61..WT198212-198708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iLH51,61,71,YH5#,6#,71..(COM,V)..ST198508-198708

FR DISC BRAKE

main47550-29265iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST198212-198508

FR DISC BRAKE

main47550-29275iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST198212-198508

FR DRUM BRAKE

main47550-29285iLH6#,YH61..WT198212-198508

FR DRUM BRAKE

main47550-29295iLH60,61,YH61..WT198212-198708

FR DISC BRAKE

main47550-30130iLH51,61,YH51,61..WG198608-198708

main47550-39275iLH5#,6#,YH51,61..WG198212-198608

main47550-60120iLH56,66198608-198708

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47611-26020iLH6#,YH61..WT198212-198508

main47611-26040iLH61,YH61..WT198508-198708

main47611-35020iLH50,51,YH51..WG198212-198708

main47611-60010iLH56,66198608-198708

main47612-35020iLH60,61,YH61..10S198212-198708

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

main90213-07010×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iLH50,51,60,61,7#,YH5#,6#,71..COM,V198212-198708

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47611-35020iLH60,61,YH61..10S198212-198708

main47612-26020iLH6#,YH61..WT198212-198508

main47612-26040iLH61,YH61..WT198508-198708

main47612-35020iLH50,51,YH51..WG198212-198708

main47612-60010iLH56,66198608-198708

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47624-26020iLH60,61,YH61..10S198212-198708

main47624-26030iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47624-26050iLH56,66198608-198708

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08075×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47625-26020iLH60,61,YH61..10S198212-198708

main47625-26030iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47625-26050iLH56,66198608-198708

47605BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE)

main47628-26010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-26010iLH60,61,YH61..WT198212-198708

main47613-35020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

RH

main47614-35020iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

LH

47616WIRE, PARKING BRAKE, RH

main47616-26020iLH60,61,YH61..10S198212-198708

main47616-26030iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47616-60010iLH56,66198608-198708

47619WIRE, PARKING BRAKE, LH

main47616-26020iLH60,61,YH61..10S198212-198708

main47616-26030iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47616-60010iLH56,66198608-198708

47633BOOT, PARKING BRAKE BELLCRANK

main47633-26010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST; LH60,61,YH61..10S198212-198708

main47633-35020×2iLH56,66198608-198708

47661CABLE, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47607-30010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47662GUIDE, AUTOMATIC ADJUST CABLE(FOR REAR BRAKE)

main47642-20010×2iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20011iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47643-35010iLH50,YH51..WG198212-198308

main47643-35020iLH50,51,YH51..WG198308-198708

main47643-60010iLH56,66198608-198708

main47644-35010iLH60,YH61..10S198212-198308

main47644-35020iLH60,61,YH61..10S198308-198708

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-20011iLH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST198212-198708

main47643-35010iLH60,YH61..10S198212-198308

main47643-35020iLH60,61,YH61..10S198308-198708

main47644-35010iLH50,YH51..WG198212-198308

main47644-35020iLH50,51,YH51..WG198308-198708

main47644-60010iLH56,66198608-198708

9010108043

main90101-08043

9014360002

main90143-60002

9161140814

main91611-40814

9411040600

main94110-40600

9451201000

main94512-01000

9453100800

main94531-00800
