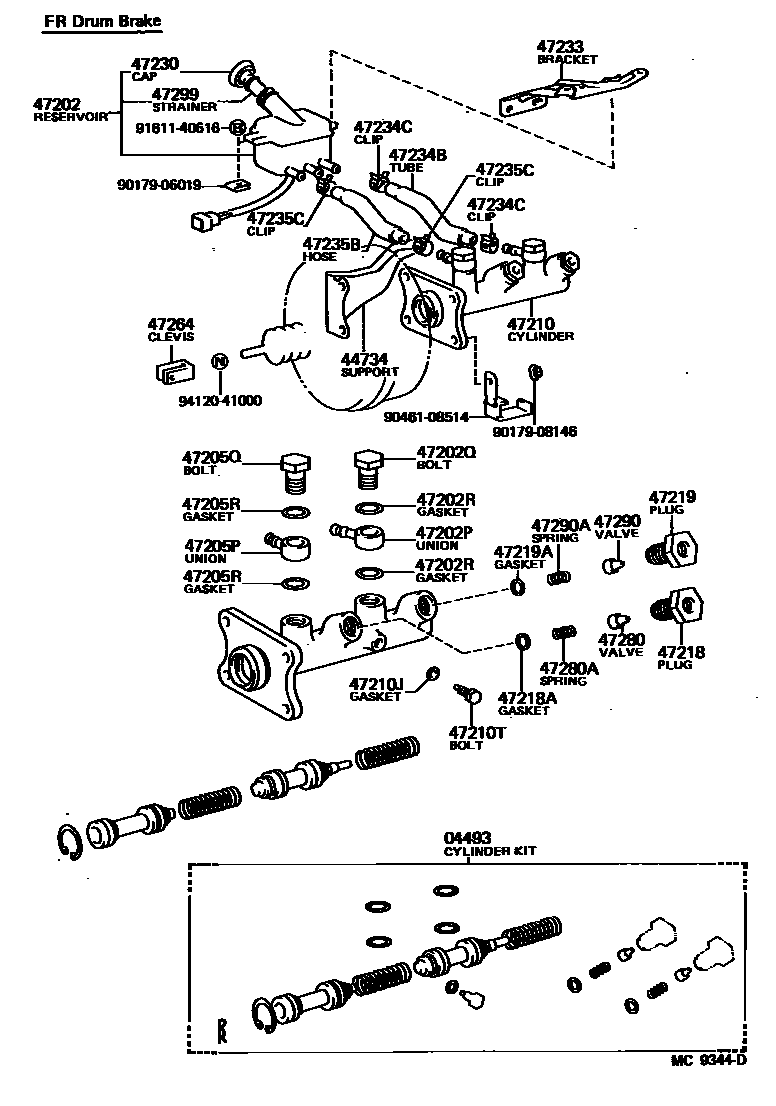

BRAKE MASTER CYLINDER

0001 1 0003 1 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04493-26080iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

FR DISC BRAKE

main04493-26090iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

FR DRUM BRAKE

main04493-26100iLH5#,6#,YH51,61..WG198212-198508

main04493-26120iLH51,61,71,YH5#,6#,71198508-198708

FR DISC BRAKE

main04493-26140iLH56,66198608-198708

44734BRACKET, BOOSTER SUPPORT OR ROD SUPPORT

main55175-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main55175-95J04iLH56,66198608-198708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26090iLH50,51,60,61,7#,YH5#,6#,71..MTM198212-198708

main47220-26100iLH50,51,61,YH51,61..ATM198212-198708

main47220-26150iLH56,66198608-198708

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iLH5#,6#,7#,YH5#,6#,71198212-198708

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iLH5#,6#,7#,YH5#,6#,71198212-198708

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iLH5#,6#,7#,YH5#,6#,71198212-198708

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iLH5#,6#,7#,YH5#,6#,71198212-198708

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iLH5#,6#,7#,YH5#,6#,71198212-198708

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iLH5#,6#,7#,YH5#,6#,71198212-198708

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-26160iLH5#,6#,YH51,61..WG198212-198508

sub47201-26240

main47201-26170iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

FR DISC BRAKE

sub47201-26240

main47201-26210iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

FR DRUM BRAKE

main47201-26240iLH51,61,71,YH5#,6#,71198508-198601

main47201-26241iLH51,61,71,YH5#,6#,71198601-198708

main47201-26360iLH56,66198608-198708

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLH50,51,60,61,7#,YH5#,6#,71198212-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLH5#,6#,7#,YH5#,6#,71198212-198708

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-26020iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

main47218-26040iLH51,61,71,YH5#,6#,71198508-198708

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLH50,51,60,61,YH51,61..WG198212-198708

main90430-11001iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-26020iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198212-198508

FR DRUM BRAKE

main47218-26040iLH51,61,71,YH5#,6#,71198508-198708

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iLH50,51,60,61,YH51,61..WG198212-198708

FR DISC BRAKE

main90430-11001iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198212-198508

FR DRUM BRAKE

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iLH5#,6#,7#,YH5#,6#,71198212-198708

47233BRACKET, RESERVOIR

main47233-95J00iLH50,51,60,61,7#,YH5#,6#,71198212-198708

47234BTUBE, RESERVOIR, NO.1

main47234-26080iLH5#,6#,7#,YH5#,6#,71198212-198601

main47234-26081iLH51,61,71,YH5#,6#,71198601-198708

main47234-26140iLH56,66198608-198708

sub47234-26160

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-16002iLH5#,6#,71,YH5#,6#,71198508-198708

sub96134-51500

main90467-16141iLH5#,6#,7#,YH5#,6#,71198212-198508

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-26130iLH56,66198608-198708

sub47235-26150

main90445-17050iLH50,51,60,61,7#,YH5#,6#,71198212-198708

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main90467-16002iLH5#,6#,71,YH5#,6#,71198508-198708

sub96134-51500

main90467-16141iLH5#,6#,7#,YH5#,6#,71198212-198508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLH5#,6#,7#,YH5#,6#,71198212-198708

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-26030iLH5#,6#,YH51,61..WG198212-198508

main47281-30020iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

47280ASPRING, COMPRESSION

main90504-05001iLH5#,6#,7#,YH50,52,6#,71..COM,V198212-198508

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-26030iLH5#,6#,YH51,61..WG198212-198508

FR DISC BRAKE

main47281-30020iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198212-198508

FR DRUM BRAKE

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05001iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198508

FR DRUM BRAKE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLH5#,6#,7#,YH5#,6#,71198212-198708

9017906019

main90179-06019

9017908146

main90179-08146

9046108514

main90461-08514

9161140616

main91611-40616

9412041000

main94120-41000

33 parts on this diagram · 3 diagrams in section
