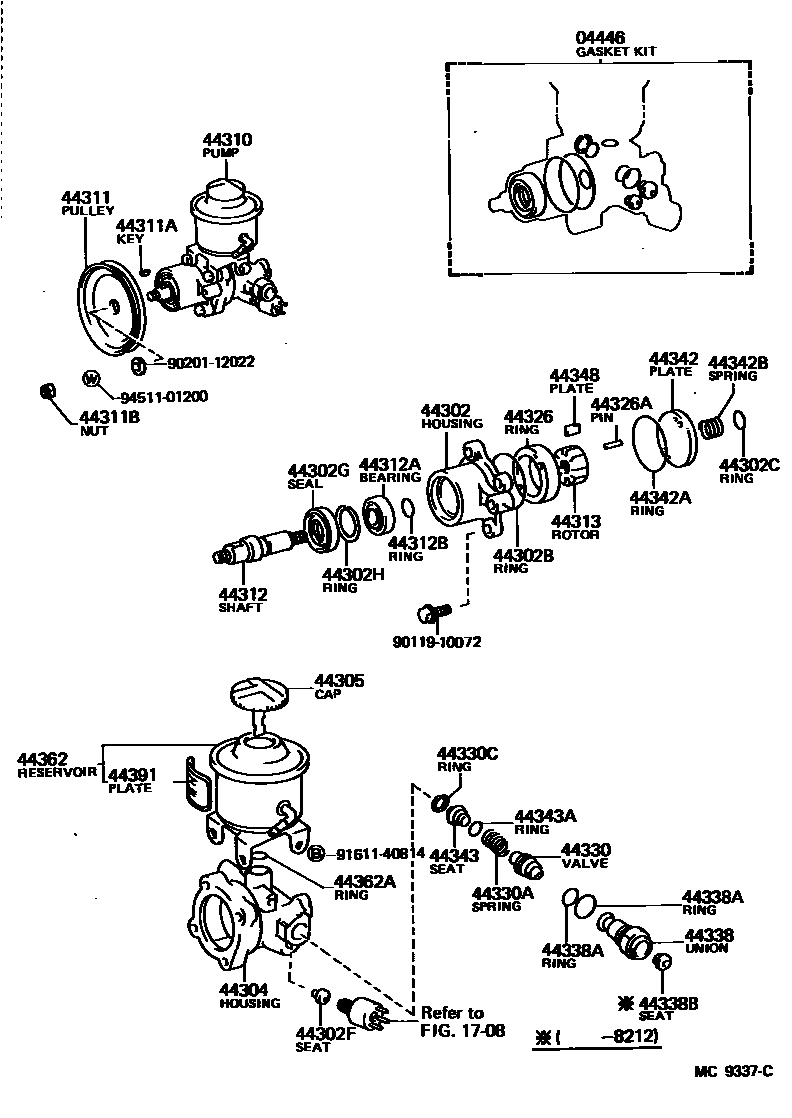

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYH5#,6#,71198212-198708

sub04446-14040

main04446-26010iLH5#,6#,7#198212-198508

main04446-30030iLH5#,6#,71198508-198708

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYH5#,6#,71198212-198708

main44302-22020iLH5#,6#,71198508-198708

main44302-30020iLH5#,6#,7#198212-198508

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLH5#,6#,71,YH5#,6#,71198508-198708

main90301-69170×2iLH5#,6#,7#198212-198508

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iYH5#,6#,71198212-198508

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iYH5#,6#,71198212-198708

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iYH5#,6#,71198212-198508

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iYH5#,6#,71198212-198508

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-26020iLH5#,6#,7#198212-198508

main44304-28010iYH5#,61,71198212-198311

main44304-28011iYH5#,6#,71198311-198708

sub44304-28012

sub44343-12040

sub90501-12103

main44304-30050iLH5#,6#,71198508-198708

sub44304-30051

sub44343-12040

sub90501-12103

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iLH5#,6#,7#,YH5#,6#,71198212-198708

sub44305-22040

44310PUMP ASSY, VANE

main44320-26010iYH5#,61,71198212-198311

sub90105-10092

main44320-26011iYH5#,6#,71198311-198708

main44320-26020iLH5#,6#,7#198212-198508

main44320-26040iLH51,61,71198508-198708

main44320-26050iLH56,66198608-198708

44311PULLEY, VANE PUMP

main44311-12010iYH5#,6#,71198212-198708

main44311-30040iLH5#,6#,7#198212-198708

44311AKEY, VANE PUMP PULLEY

main90280-05008iLH5#,6#,7#,YH5#,6#,71198212-198708

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iLH5#,6#,7#,YH5#,6#,71198212-198708

44312SHAFT, VANE PUMP

main44312-12010iYH5#,6#,71198212-198508

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iYH5#,6#,71198212-198508

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iYH5#,6#,71198212-198508

44313ROTOR, VANE PUMP

main44313-12010iLH5#,6#,71,YH5#,6#,71198508-198708

sub44313-22040

main44313-12020iYH5#,6#,71198212-198508

sub44313-22050

main44313-12030iYH5#,6#,71198212-198508

sub44313-22060

main44313-12040iYH5#,6#,71198212-198508

sub44313-22070

main44313-12050iLH5#,6#,71,YH5#,6#,71198508-198708

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLH5#,6#,71,YH5#,6#,71198508-198708

main44325-12020iYH5#,6#,71198212-198508

main44325-12030iYH5#,6#,71198212-198508

main44325-12040iYH5#,6#,71198212-198508

main44325-12050iYH5#,6#,71198212-198508

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008×2iYH5#,6#,71198212-198508

44330VALVE ASSY, FLOW CONTROL

main44330-12130iLH5#,6#,7#198212-198508

sub44330-12131

main44330-12140iLH5#,6#,71198508-198708

sub44330-12141

main44330-12150iLH5#,6#,7#198212-198508

sub44330-12151

main44330-12160iLH5#,6#,7#198212-198508

sub44330-12161

main44330-12170iLH5#,6#,7#198212-198508

sub44330-12171

main44330-12180iLH5#,6#,71198508-198708

sub44330-12181

main44330-14010iYH5#,6#,71198212-198708

sub44330-20010

main44330-14020iYH5#,6#,71198212-198708

sub44330-20020

main44330-14030iYH5#,6#,71198212-198708

sub44330-20030

main44330-14040iYH5#,6#,71198212-198708

sub44330-20040

main44330-14050iYH5#,6#,71198212-198708

sub44330-20050

main44330-14060iYH5#,6#,71198212-198708

sub44330-20060

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iLH5#,6#,7#,YH5#,6#,71198212-198708

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLH5#,6#,7#,YH5#,6#,71198212-198708

44338UNION, PRESSURE PORT

main44308-26010iYH5#,6#,71198212-198408

main44308-26011iYH5#,6#,71198408-198708

main44308-26020iLH5#,6#,7#198212-198408

main44308-26021iLH5#,61,71198408-198508

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLH5#,6#,71,YH5#,6#,71198508-198708

main90301-23002iLH5#,6#,7#198212-198508

main96711-19014iLH5#,6#,7#,YH5#,6#,71198212-198708

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06004iLH50,60,70,YH5#,61,71198212-198212

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iYH5#,6#,71198212-198508

main44341-30020iLH5#,6#,7#198212-198508

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLH5#,6#,71,YH5#,6#,71198508-198708

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iYH5#,6#,71198212-198508

44343SEAT, FLOW CONTROL SPRING

main44343-12010×2iLH5#,6#,7#,YH5#,6#,71198212-198708

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLH5#,6#,7#,YH5#,6#,71198212-198708

44348PLATE, VANE PUMP

main44345-12010×10iYH5#,6#,71198212-198508

main44345-12020×10iYH5#,6#,71198212-198508

main44345-12030×10iLH5#,6#,71,YH5#,6#,71198508-198708

main44345-12040×10iYH5#,6#,71198212-198508

main44345-12050×10iLH5#,6#,71,YH5#,6#,71198508-198708

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-26010iYH5#,6#,71198212-198708

main44360-26010iLH5#,6#,7#198212-198508

main44360-26011iLH51,61,71198508-198708

main44360-26040iLH56,66198608-198708

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iYH5#,6#,71198212-198508

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iLH5#,6#,71198401-198708

main44391-30020iLH50,60,70,YH5#,61,71198212-198401

9011910072

main90119-10072

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

39 parts on this diagram · 4 diagrams in section
