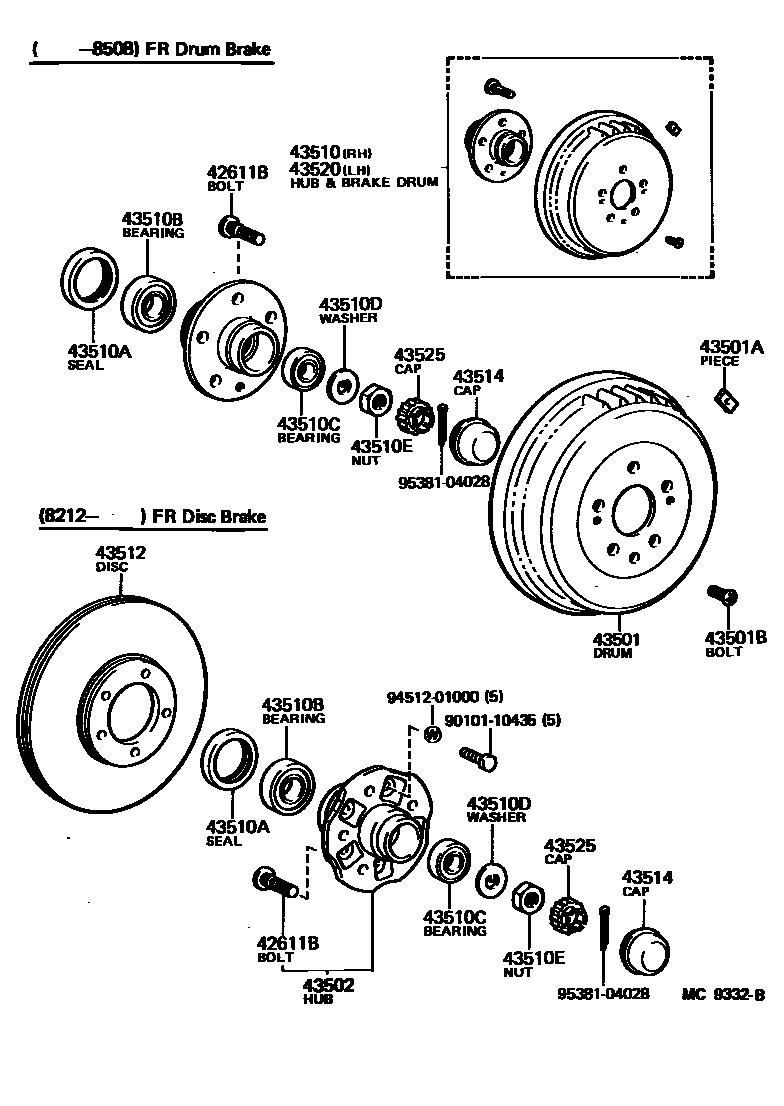

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02034×10iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198411-198412

main90942-02035×10iLH50,51,60,61,7#,YH5#,6#,71198212-198708

FR DISC BRAKE

main90942-02049×12iLH56,66198608-198708

main90942-02052×10iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198412-198508

FR DRUM BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26050×2iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198411-198508

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

main90937-01117iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198411-198508

main90937-01118iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

main90937-01119iLH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)198411-198508

main90937-01146iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main43511-35904×2iLH56,66198608-198708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26060iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main90311-66001×2iLH56,66198608-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main90368-49084×2iLH56,66198608-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main90368-45087×2iLH56,66198608-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main90214-42030×2iLH56,66198608-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

43512DISC, FRONT

main43512-26040×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

main43512-26081×2iLH56,66198608-198708

43514CAP, FRONT HUB GREASE

main43514-35010×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26060iLH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)198212-198411

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iLH50,51,60,61,7#,YH5#,6#,71198212-198708

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 2 diagrams in section
