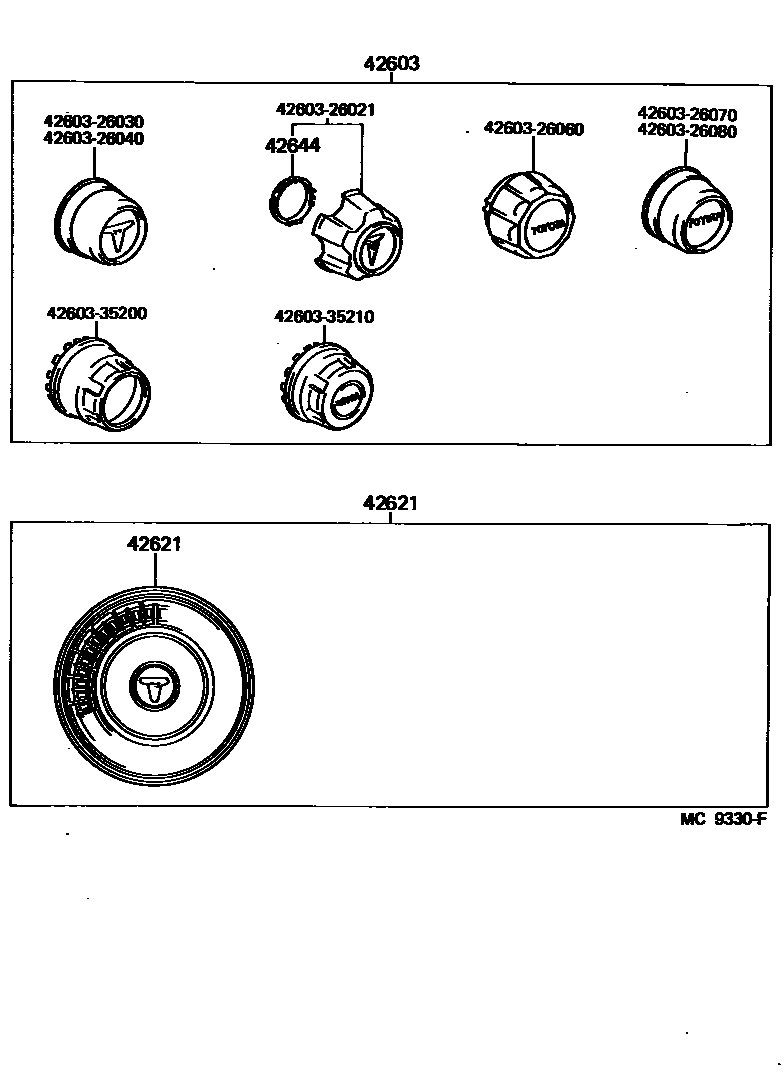

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26021×4iLH50,YH51..CTM,SCM198212-198401

195SR14 TIRE

main42603-26030×4iLH5#,6#,7#,YH50,52,6#,71..COM,V; LH5#,6#,YH51,61..WG..DLX198212-198508

main42603-26040×4iLH5#,YH51..CTM,SCM198212-198508

main42603-26060×4iLH51,YH51..CTM,SCM198401-198508

W/ALUMI WHEEL

main42603-26070×4iLH51,61,71,YH5#,61,71..CTD,DLX,GL198508-198708

main42603-26080×4iLH51,YH51..CTM,SCM198508-198708

main42603-35171×2iLH56,66198608-198708

FR

main42603-35181×2iLH56,66198608-198708

RR

42621CAP, WHEEL

main42621-26150×4iLH51,YH51..08S198401-198508

42644HOLDER, WHEEL HUB ORNAMENT

main42644-30050×4iLH50,YH51..CTM,SCM198212-198401

4260326021ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26021

4260326030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26030

4260326040ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26040

4260326060ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26060

4260326070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26070

4260326080ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26080

4260335200ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35200

4260335210ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35210

11 parts on this diagram · 3 diagrams in section
