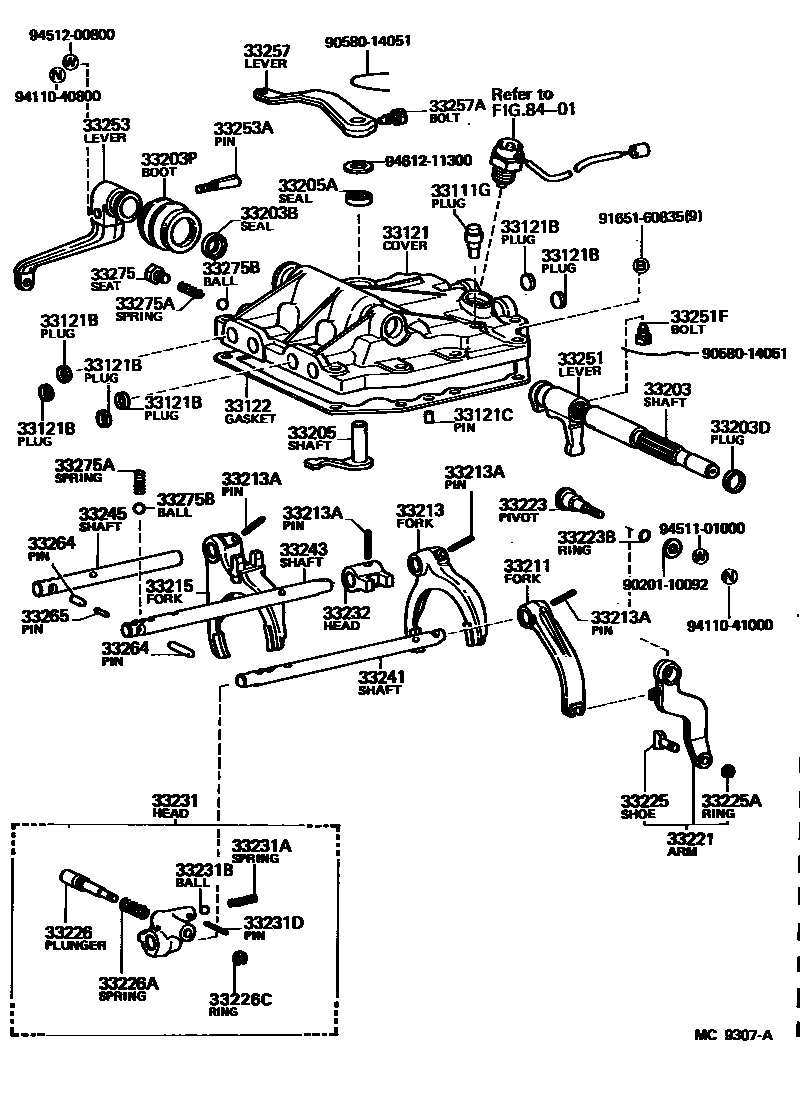

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03065iLH50,60,70,YH5#,61,71..MTM198212-198401

33121COVER, MANUAL TRANSMISSION CASE

main33121-28010iYH50,61,71..V..4H198212-198401

main33121-35060iLH50,60,70,YH51,61..5F,5H198212-198401

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-14004iLH50,60,70,YH5#,61,71..MTM198212-198401

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iLH50,60,70,YH5#,61,71..MTM198212-198401

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26030iLH50,60,70,YH5#,61,71..MTM198212-198401

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main90311-20006iLH56,66198608-198708

main90313-20001iLH50,60,70,YH5#,61,71..MTM198212-198401

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-24002iLH50,60,70,YH5#,61,71..MTM198212-198401

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-26010iLH50,60,70,YH5#,61,71..MTM198212-198401

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iLH56,66198608-198708

main33262-28020iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33262-35031iLH50,60,70,YH5#,61,71..MTM198212-198401

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

33211FORK, REVERSE SHIFT

main33211-28010iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33211-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

main33211-35030iLH56,66198608-198708

33213FORK, 1ST & 2ND SHIFT

main33212-25010iLH56,66198608-198701

main33212-25011iLH56,66198701-198708

main33212-26030iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33212-35010iLH50,60,70,YH5#,61,71..MTM198212-198401

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

L=22

main90254-05016iLH50,60,70,YH51,61..5F,5H198212-198401

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-25020iLH56,66198608-198708

main33213-28011iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33213-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

33221ARM, REVERSE SHIFT

main33201-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

main33221-28010iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33221-35030iLH56,66198608-198708

33223PIVOT, SHIFT ARM

main33223-35020iLH50,60,70,YH5#,61,71..MTM198212-198401

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iLH50,60,70,YH5#,61,71..MTM198212-198401

33225SHOE, SHIFT ARM

main33225-35020iLH5#,6#,7#,YH5#,6#,71..MTM198212-198405

main33225-35030iLH50,51,61,71,YH5#,6#..MTM198405-198708

main33225-35040iLH56,66198608-198708

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iLH50,60,70,YH5#,61,71..MTM198212-198401

main96160-00800iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

33226PLUNGER, REVERSE SHIFT RETURN

main33226-35011iLH50,60,70,YH5#,61,71..MTM198212-198401

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-14046iLH50,60,70,YH51,61..5F,5H198212-198401

main90501-14074iYH50,61,71..4H198212-198401

33226CRING, SHAFT SNAP(FOR REVERSE SHIFT RETURN PLUNGER)

main90520-06001iLH50,60,70,YH5#,61,71..MTM198212-198401

33231HEAD, REVERSE SHIFT

main33202-26011iLH50,60,70,YH51,61..5F,5H198212-198401

main33202-35010iYH50,61,71..4H198212-198401

main33231-25020iLH56,66198608-198708

main33231-26020iYH50,52,6#,71..4H198401-198508

main33231-28010iLH50,51,61,71,YH50,51,6#,71..5F,5H198401-198708

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-10046iLH50,60,70,YH5#,61,71..MTM198212-198401

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iLH50,60,70,YH5#,61,71..MTM198212-198401

main90360-10003iLH50,51,61,71,YH50,51,6#,71..5F,5H198401-198708

33231DPIN(FOR REVERSE SHIFT HEAD)

main90254-03006iLH50,60,70,YH5#,61,71..MTM198212-198401

33232HEAD, 1ST & 2ND SHIFT

main33232-28010iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33232-35010iLH50,60,70,YH5#,61,71..MTM198212-198401

33241SHAFT, REVERSE SHIFT FORK

main33244-25020iLH56,66198608-198708

main33244-26010iYH50,52,6#,71..4H198401-198508

main33244-28010iLH50,51,61,71,YH50,51,61..5F,5H198401-198708

main33245-35020iLH50,60,70,YH51,61..5F,5H198212-198401

main33245-35030iYH50,61,71..4H198212-198401

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-25030iLH56,66198608-198708

main33242-26020iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33242-35010iLH50,60,70,YH5#,61,71..MTM198212-198401

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-25020iLH56,66198608-198708

main33243-26030iYH50,61,71..V..4H198401-198505

main33243-26031iYH50,61,71..V..MTM198505-198708

main33243-28010iLH50,60,70,YH5#,61,71..MTM198212-198401

main33243-28020iLH5#,61,71,YH51,61..5F,5H198401-198505

main33243-35050iLH51,61,71,YH51,61..5F,5H198505-198708

33251LEVER, SHIFT & SELECT

main33251-26030iLH50,60,70,YH5#,61,71..MTM198212-198401

main33251-26040iYH50,52,61,71..4H198502-198708

main33251-28011iLH50,51,61,71,YH50,51,6#,71..5F,5H198401-198708

main33251-35090iLH56,66198608-198708

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iLH50,60,70,YH5#,61,71..MTM198212-198401

33253LEVER, SHIFT OUTER, NO.1

main33253-26030iLH50,60,70,YH5#,61,71..MTM198212-198401

main33253-26040iLH50,51,61,71,YH5#,6#,71..MTM..(CBR,DSL)198401-198708

main33253-26050iLH51..5F..TD198508-198708

main33253-26060iLH56,66198608-198708

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33282-57010iLH56,66198212-198708

33257LEVER, SELECT OUTER

main33257-26030iLH50,60,70,YH5#,61,71..MTM198212-198401

main33257-26050iLH50,51,61,71,YH5#,6#,71..MTM..(CBR,DSL)198401-198708

main33257-26070iLH51..5F..TD198508-198708

main33257-26080iLH56,66198608-198708

33257ABOLT, SELECT OUTER LEVER LOCK

main33218-35010iLH50,60,70,YH5#,61,71..MTM198212-198401

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003iLH5#,6#,71,YH50,51,61,71..5F,5H198401-198708

main90361-10001iLH50,60,70,YH5#,61,71..MTM198212-198401

L=32.9

main90361-10002iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main90361-10003iLH5#,6#,71,YH5#,6#,71..MTM198401-198708

main90361-10008iLH50,60,70,YH5#,61,71..MTM198212-198401

L=14.9

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05010iLH50,60,70,YH5#,61,71..MTM198212-198401

main90250-05020iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main90250-05029iLH56,66198608-198708

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12003iLH50,60,70,YH5#,61,71..MTM198212-198401

main90341-12008iLH56,66198608-198708

main90341-12014iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iLH50,51,61,71,YH50,51,61,71..5F,5H198401-198708

main90501-13006iLH50,60,70,YH5#,61,71..MTM198212-198401

main90501-14061iLH5#,61,71,YH51,61..5F,5H198401-198401

main90501-14062iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main90501-14096iLH56,66198608-198708

33275BBALL, SHAFT DETENT

main90360-10003iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708
