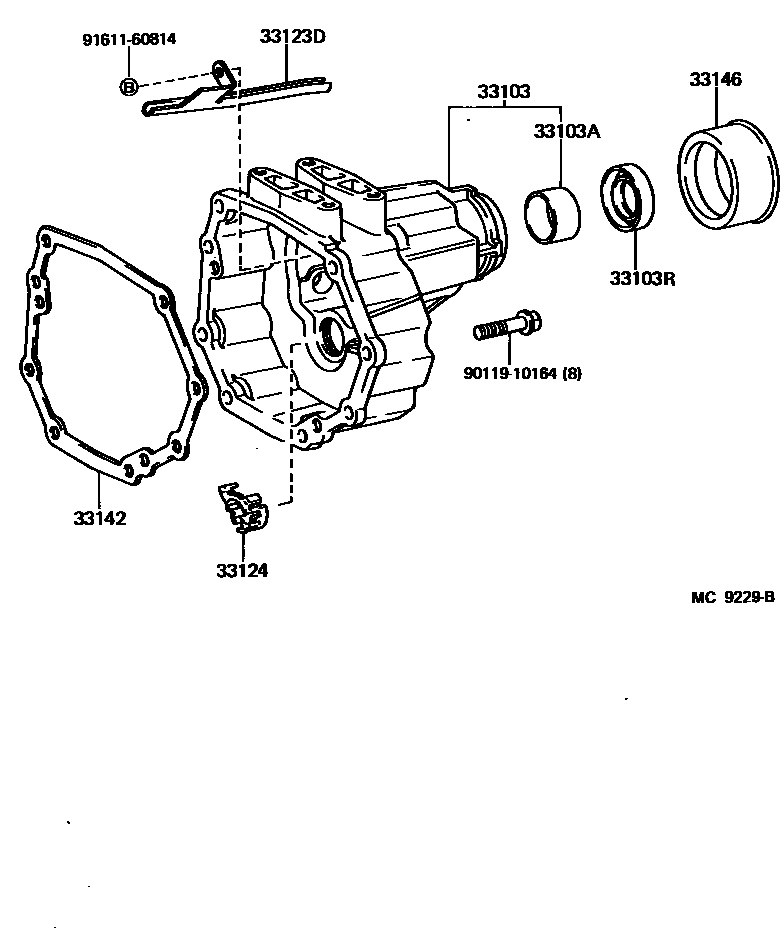

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26030iLH50,60,70,YH5#,61,71..MTM198212-198401

main33103-26040iLH51,61,71..MTM; YH51,61..WG..MTM; YH62,71..03S,15S198508-198509

main33103-26050iYH50,61,71..V..MTM198508-198509

main33103-26900iLH51,61,71..MTM; YH51,61..WG..MTM; YH62,71..03S,15S198509-198708

main33103-26901iYH50,61,71..V..MTM198509-198708

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLH50,51,60,61,7#,YH5#,6#,71..MTM198212-198708

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iLH50,51,60,61,7#,YH5#,6#,71..MTM198212-198708

33123DRECEIVER, CASE COVER OIL(MTM)

main33123-26011iLH50,60,70,YH5#,61,71..MTM198212-198401

main33124-28010iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

33124PIPE, OIL RECEIVER(MTM)

main33124-26010iLH50,60,70,YH51,61..5F,5H198308-198401

main33124-36010iLH5#,6#,71,YH50,51,6#,71..5F,5H198401-198708

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH50,51,61,71,YH5#,6#,71..MTM198401-198708

main33142-35030iLH50,60,70,YH5#,61,71..MTM198212-198401

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH50,51,60,61,7#,YH5#,6#,71..MTM198212-198708

9011910164

main90119-10164

9161160814

main91611-60814

9 parts on this diagram · 3 diagrams in section
