Toyota 781130 — CLUTCH RELEASE CYLINDER

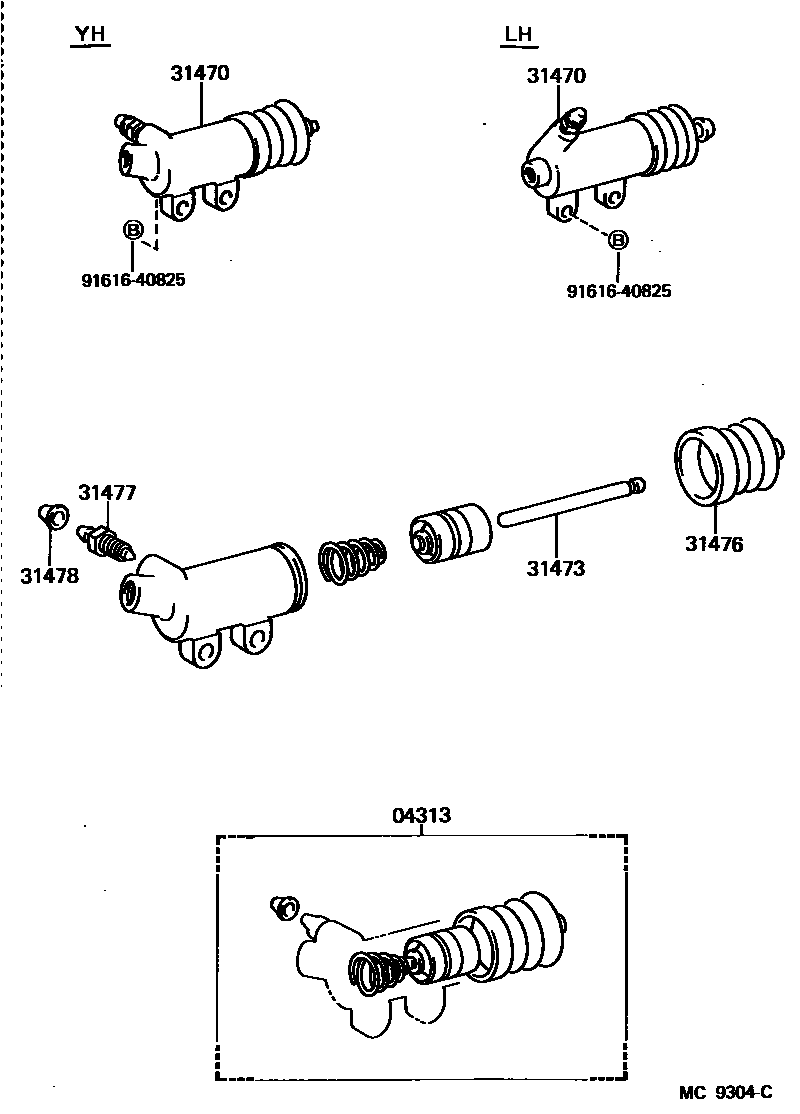

Parts diagram
04313CYLINDER KIT, CLUTCH RELEASE
04313-22020
31470CYLINDER ASSY, CLUTCH RELEASE
31470-25031
31470-26050
31470-35050
31470-30220
31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010
31473-35040
31476BOOT, CLUTCH RELEASE CYLINDER
31476-22010
31477PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010
31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010
9161640825
91616-40825

7 parts on this diagram · 1 diagram in section

CLUTCH RELEASE CYLINDER for Toyota 781130

This section contains 7 genuine Toyota parts for the CLUTCH RELEASE CYLINDER system of the Toyota 781130. Key components include: CYLINDER KIT, CLUTCH RELEASE, CYLINDER ASSY, CLUTCH RELEASE, ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1, BOOT, CLUTCH RELEASE CYLINDER, PLUG, BLEEDER(FOR RELEASE CYLINDER).
