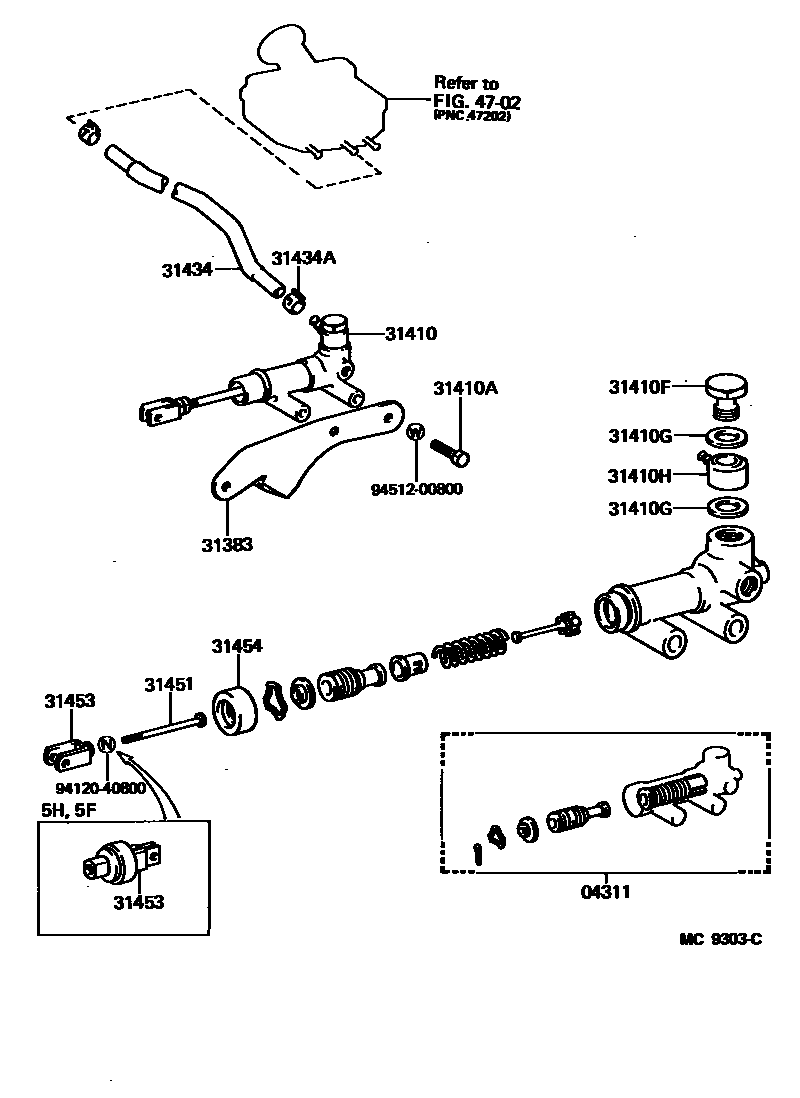

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iYH50,52,6#,71..4H198212-198508

main04311-14012iYH50,6#,71..(COM,V)..MTM198704-198708

main04311-14021iLH5#,6#,71..MTM; YH51,61..WG..MTM198704-198708

main04311-30080iLH5#,6#,71..MTM; YH51,61..WG..MTM198508-198704

31383PLATE, PEDAL SUPPORT SHAFT SET

main55105-95J00iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26090iYH50,6#,71..(COM,V)..MTM198508-198708

main31420-26101iLH5#,6#,71..MTM; YH51,61..WG..MTM198508-198708

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865×2iLH5#,6#,7#,YH50,52,6#,71..MTM198212-198508

main91611-60865×2iLH5#,6#,71,YH5#,6#,71..MTM198508-198708

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242×2iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31434TUBE, CLUTCH RESERVOIR

main31434-26100iLH5#,6#,7#,YH5#,6#,71..MTM198212-198508

main31434-26120iLH51,61,71,YH5#,6#,71..MTM198508-198708

main31434-26140iLH56,66198608-198708

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iYH50,52,6#,71..4H198212-198508

main31451-30060iLH5#,6#,71..MTM; YH51,61..WG..MTM198508-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30041iLH5#,6#,7#,YH51,61..5F,5H198212-198508

main31453-22010iYH50,52,6#,71..4H198212-198508

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
