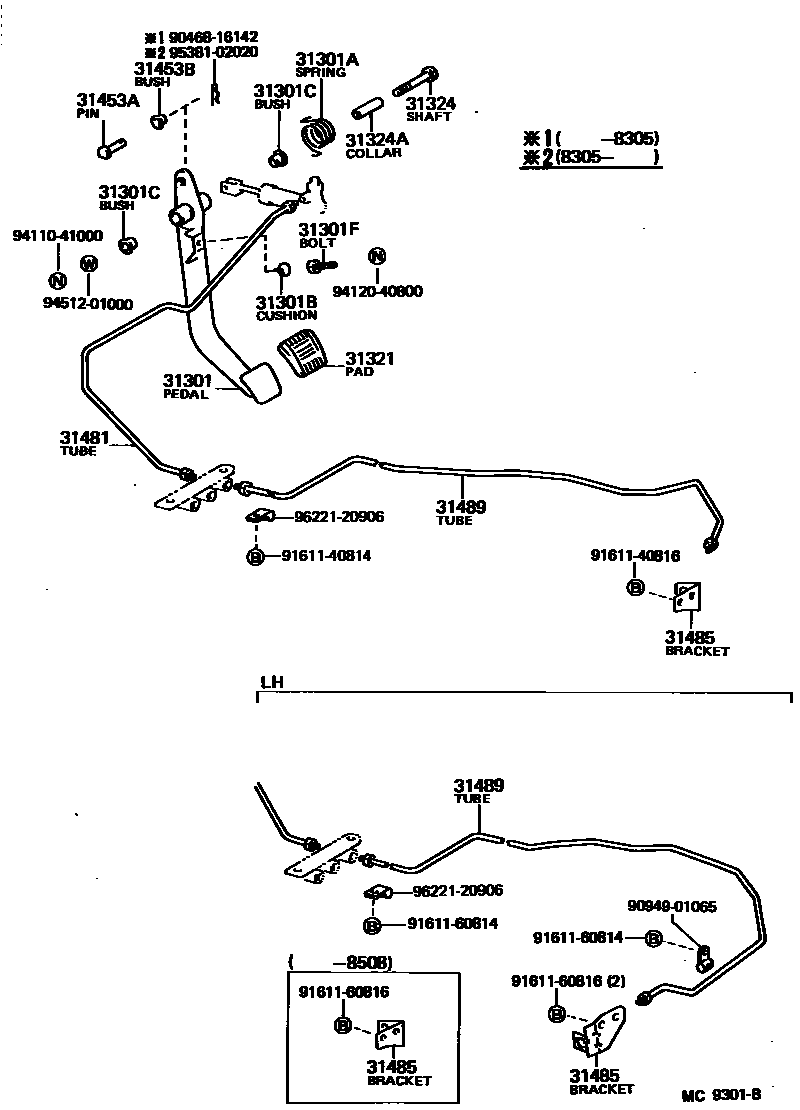

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-26060iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32002iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31321PAD, CLUTCH PEDAL

main31321-14010iLH5#,6#,7#,YH5#,6#,71..MTM198212-198508

main31321-14020iLH5#,6#,71,YH5#,6#,71..MTM198508-198708

31324SHAFT, CLUTCH PEDAL

main91121-51070iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLH5#,6#,7#,YH5#,6#,71..MTM198212-198708

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-26130iLH5#,6#,7#,YH5#,6#,71..MTM198212-198508

main31481-26131iLH5#,6#,71,YH5#,6#,71..MTM198508-198708

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31485-26020iLH5#,6#,7#..MTM198212-198508

main31485-26031iYH5#,6#,71..MTM198212-198708

main31485-26040iLH56,66198608-198708

main31485-26050iLH51,61,71..MTM198508-198708

31489TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE

main31489-26111iYH5#,6#,71..MTM198212-198708

main31489-26120iLH5#,6#,7#..MTM198212-198508

main31489-26121iLH51,61,71..MTM198508-198708

main31489-26170iLH56,66198608-198708

9046816142

main90468-16142

9094901065

main90949-01065

9161140814

main91611-40814

9161140816

main91611-40816

9161160814

main91611-60814

9161160816

main91611-60816

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9538102020

main95381-02020

9622120906

main96221-20906

24 parts on this diagram · 2 diagrams in section
