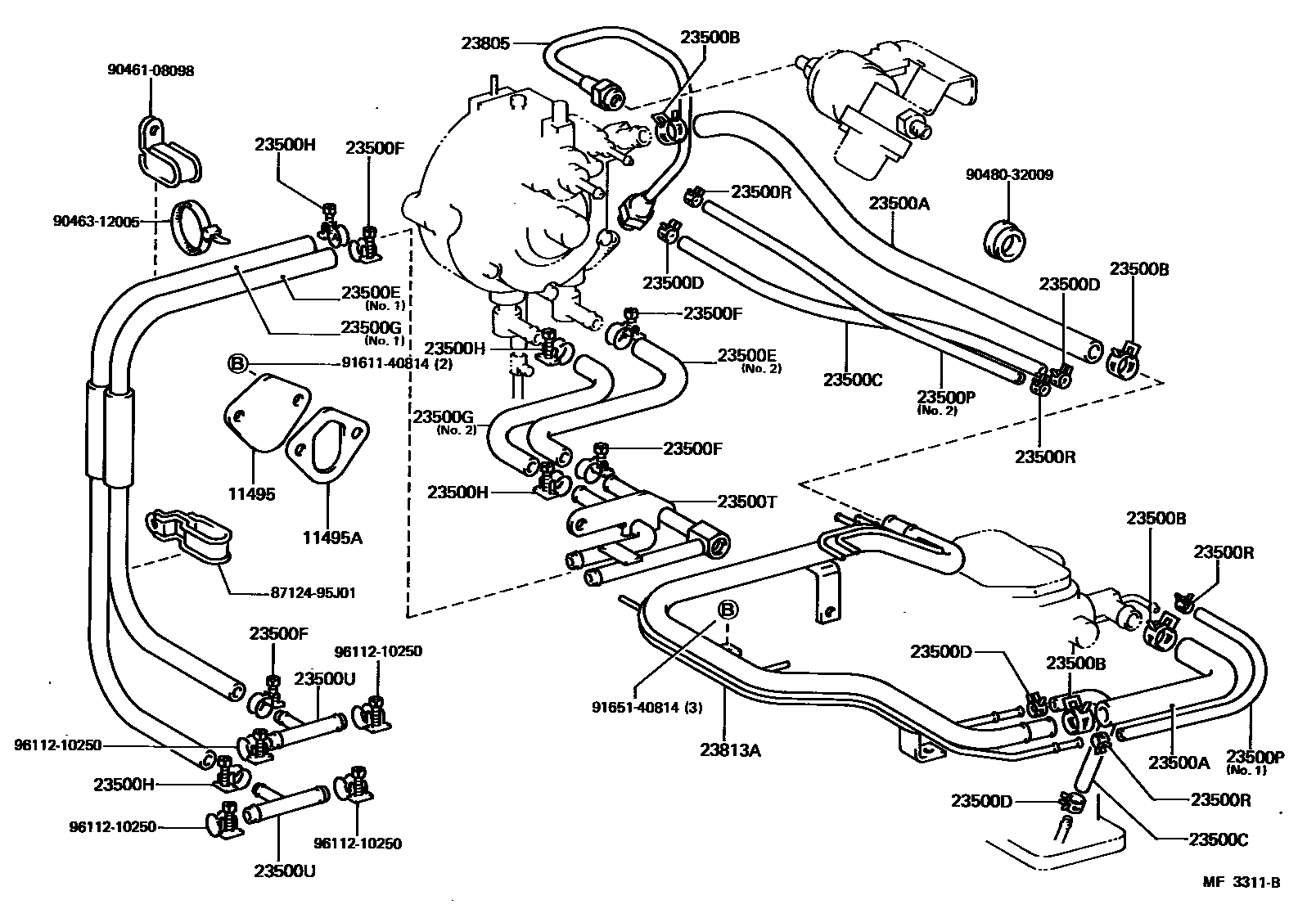

LPG(CARBURETOR) FUEL PIPE
11495PLUG, PLATE(FOR CYLINDER BLOCK)
LPG PACKAGE
11495AGASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG)
LPG PACKAGE
23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
REGULATOR SIDE,LPG PACKAGE
CARBURETOR SIDE,LPG PACKAGE
23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
LPG PACKAGE
23500CHOSE, VACUUM
CARBURETOR SIDE,LPG PACKAGE
REGULATOR SIDE,LPG PACKAGE
23500DCLAMP OR CLIP(FOR VACUUM HOSE)
LPG PACKAGE
23500EHOSE, WATER(FOR LPG REGULATOR INLET)
NO.1,LPG PACKAGE
23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)
LPG PACKAGE
23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)
NO.1,LPG PACKAGE
23500HCLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)
LPG PACKAGE
23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
LPG PACKAGE
23500TPIPE, WATER BY-PASS, NO.1(FOR LPG)
LPG PACKAGE
23500UPIPE, WATER BY-PASS, NO.2(FOR LPG)
LPG PACKAGE
23805PIPE SUB-ASSY, LPG REGULATOR
LPG PACKAGE
23813APIPE, LPG FUEL
LPG PACKAGE
8712495J01CLAMP, HEATER
main87124-95J01
9046108098
main90461-08098
9046312005
main90463-12005
9048032009
main90480-32009
9161140814
main91611-40814
9165140814
main91651-40814
9611210250
main96112-10250
23 parts on this diagram · 1 diagram in section
