ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

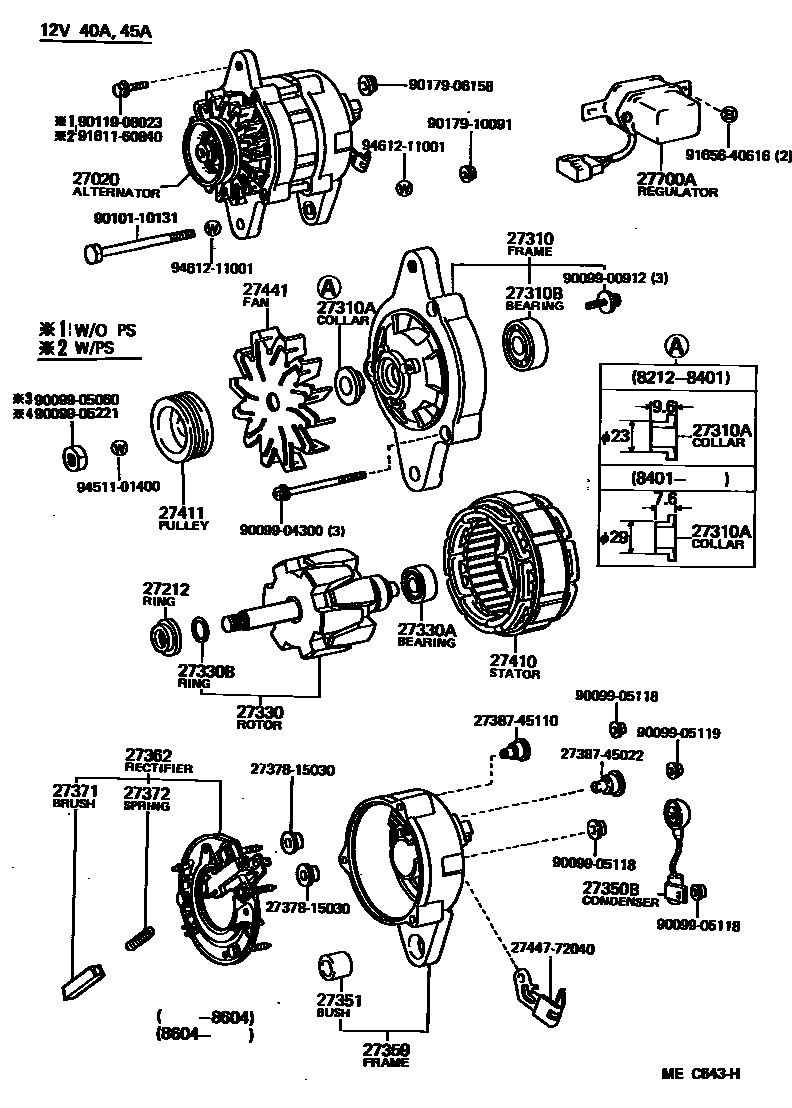

27020ALTERNATOR ASSY

main27020-54150i2L..LH6#,71..08S,09S,15S198508-198708

main27020-54160iL,2L..LH5#,6#,7#..COM,V198212-198508

main27020-54300i2LT..LH51..4FC198601-198708

main27020-72010i2Y..YH50..V4D..LPG; 3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198508-198708

main27020-72030i2Y..YH50..03S;2Y..YH50..V5D..LPG198401-198508

main27020-72050i2Y..YH50..V5D..GL..06S;2Y,3Y..YH50,61..MTM..(CTD,DLX,STD)..(03S,06S)198401-198708

main27060-72040i3YU..YH51,61198212-198708

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A,45A

main27333-57060i2L..LH5#,6#,71; 2LT..LH51..5F198601-198708

12V 55A,60A; 12V 60A

main27412-15150i3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198608-198708

12V 55A

main27412-45070i2Y..YH50..V4D..LPG198508-198708

12V 55A

main27412-54040i2LT..LH51..4FC198601-198708

12V 80A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A,45A

main27310-45110i3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG; 3YU..YH51,61198212-198311

12V 55A; 12V 65A

main27310-54130i2L..LH5#,6#,71; 2LT..LH51..5F198601-198708

12V 55A,60A; 12V 60A

main27310-54300i2LT..LH51..4FC198601-198708

12V 80A

main27310-72030i2Y..YH50..V5D..GL..06S;2Y,3Y..YH50,61..MTM..(CTD,DLX,STD)..(03S,06S)198401-198708

12V 40A,45A

main27310-72040i3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG; 3YU..YH51,61198311-198401

12V 55A; 12V 65A

main27310-72041i2Y..YH50..V4D..LPG; 3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198508-198708

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2Y,3Y#..YH5#,6#,71198401-198708

12V 40A,45A,55A,65A

main27412-31040i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198311-198401

12V 40A,45A

main27412-57060i2L..LH5#,6#,71; 2LT..LH51..5F198601-198708

12V 55A,60A; 12V 60A

main27412-63030i3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG; 3YU..YH51,61198311-198401

12V 55A; 12V 65A

main90099-19251i2LT..LH51..4FC198601-198708

12V 80A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120i2LT..LH51..4FC198601-198708

12V 80A

main90099-10125i3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG; 3YU..YH51,61198212-198311

12V 55A; 12V 65A

main90099-10126i2Y,3Y..YH50,61,71..4H..(DLX,STD)..(03S,06S); 2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A; 12V 45A

main90099-10137iL,2L#..LH5#,6#,7#198212-198601

12V 55A,60A

main90099-10142i3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG; 3YU..YH51,61198311-198401

12V 55A; 12V 65A

27330ROTOR ASSY, ALTERNATOR

main27330-26050i2Y..YH50..03S;2Y..YH50..V5D..LPG198401-198508

12V 40A

main27330-43040i3YU..YH51,61198212-198708

12V 65A

main27330-45020i2Y,3Y..YH50,61,71..V4D..DLX..06S; 2Y,3Y..YH50,61..V5D198310-198401

12V 45A

main27330-63010i2Y..YH50..05S; 2Y..YH50..V4D..LPG; 3Y,3YJ..YH51,6#,71198508-198708

12V 55A

main27330-64010iL,2L..LH5#,6#,7#..COM,V198212-198708

12V 55A

main27330-64030i2L..LH61..10S;2L#..LH51..WG..MTM198601-198708

12V 60A

main27330-68140i2LT..LH51..4FC198601-198708

12V 80A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A,45A

main90099-07103i2L..LH51,61,71198212-198601

12V 55A,60A

main90099-07108i2LT..LH51..4FC198601-198708

12V 80A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L..LH5#,6#,71; 2LT..LH51..5F198601-198708

12V 55A,60A; 12V 60A

main27350-54300i2LT..LH51..4FC198601-198708

12V 80A

27350BCONDENSER, ALTERNATOR

main90099-52065i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

main90099-52082iL,2L#..LH5#,6#,7#198212-198708

12V 55A,60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

main27351-56013iL,2L#..LH5#,6#,7#198212-198708

12V 55A,60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72010i3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S)198212-198508

12V 55A

main27359-72030i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A,45A

main27359-72040i3YU..YH51,61198212-198708

12V 65A

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 40A,45A

main27362-63011i2Y..YH50..V4D..LPG; 3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198508-198708

12V 55A

main27362-72080i3YU..YH51,61198212-198708

12V 65A

27371BRUSH, ALTERNATOR

main27371-31011×2i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

main27371-56070×2iL,2L#..LH5#,6#,7#198212-198708

12V 55A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

main27372-56070×2iL,2L#..LH5#,6#,7#198212-198708

12V 55A,60A

27410STATOR ASSY, ALTERNATOR

main27410-15030i2Y..YH50..03S;2Y..YH50..V5D..LPG198401-198508

12V 40A

main27410-38120i2Y,3Y..YH50,61,71..V4D..DLX..06S; 3Y..YH61..VSP;2Y,3Y..YH50,61..V5D198310-198401

12V 45A

main27410-43040i2L..LH5#,6#,71..03S,05S,06S; 2Y..YH50..V4D..LPG; 3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198508-198708

12V 55A

main27410-54180iL,2L#..LH5#,6#..WG198212-198601

12V 60A

main27410-64010iL,2L..LH5#,6#,7#..COM,V198212-198408

12V 55A

main27410-68140i2LT..LH51..4FC198601-198708

12V 80A

27411PULLEY, ALTERNATOR

main27411-54170i2L..LH5#,6#,71; 2LT..LH51..5F198601-198708

12V 55A,60A; 12V 60A

main27411-54300i2LT..LH51..4FC198601-198708

12V 80A

main27411-72040i2Y,3Y#..YH5#,6#,71198212-198708

12V 40A,45A,55A,65A

27441FAN, ALTERNATOR

main27441-34030i2Y..YH50..V5D..GL..06S;2Y,3Y..YH50,61..MTM..(CTD,DLX,STD)..(03S,06S)198401-198708

12V 40A,45A

main27441-34111i3YU..YH51,61198212-198708

12V 65A

main27441-54070i2LT..LH51..4FC198601-198708

12V 80A

main27441-56090i2L..LH5#,6#,71..03S,05S,06S198508-198708

12V 55A

main27441-63030i2Y..YH50..V4D..LPG; 3Y,3YJ..YH6#,71;2Y,3Y,3YJ..YH5#,71..05S,15S198508-198708

12V 55A

main27441-64030i2LT..LH51..5F;2L..LH51,61..WG198601-198708

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-13040iL,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V198408-198508

12V 40A,45A,55A

main27700-57060i2L..LH61,71..09S,15S198508-198606

12V 60A

main27700-63030i3YU..YH51,61198212-198708

12V 65A

main27700-64030i2L#..LH51,61..WG; 2L..LH6#,71..08S,09S,15S198606-198708

12V 60A

main27700-72020iL,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V198405-198408

12V 40A,45A,55A,COLD SPEC

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744772040CLIP, ALTERNATOR CORD

main27447-72040

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009905221

main90099-05221

9010110131

main90101-10131

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9165640616

main91656-40616

9451101400

main94511-01400

9461211001

main94612-11001

37 parts on this diagram · 6 diagrams in section
