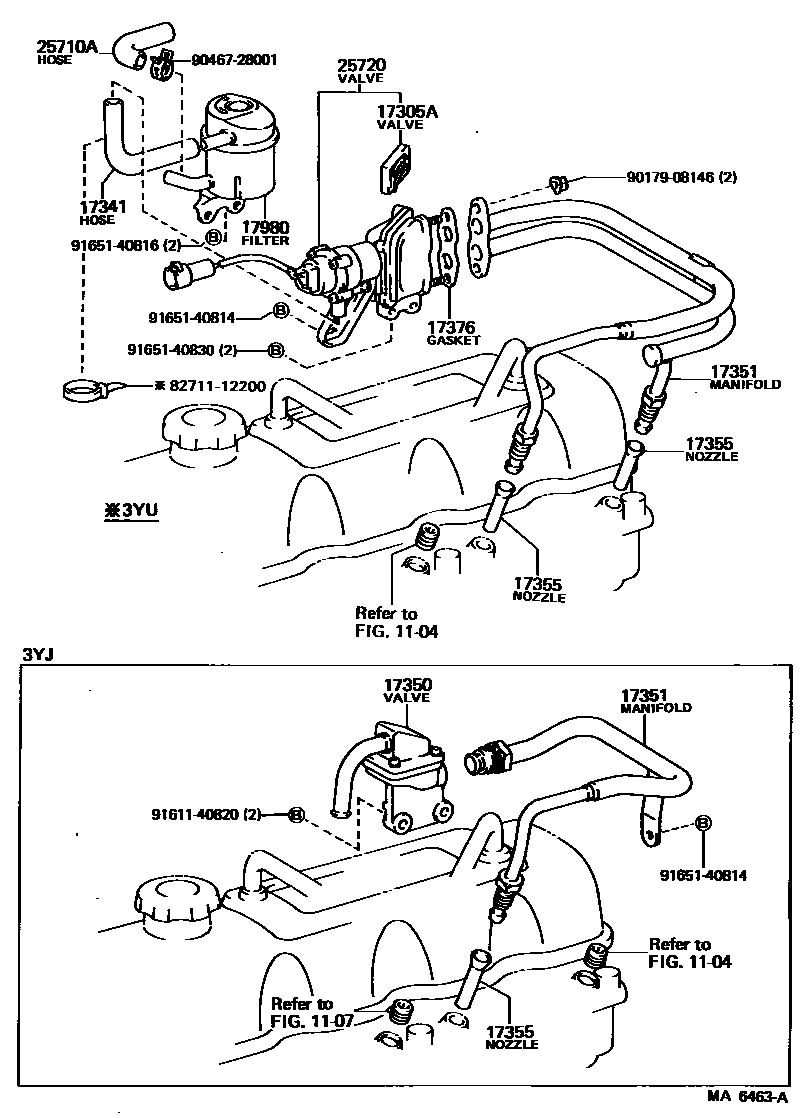

MANIFOLD AIR INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

1107MOUNTING

→ Go to FIG 11-07

17305AVALVE SUB-ASSY, REED

main17305-28010×2i3YU..YH51,61198212-198708

ND

main17305-71010×2i3YU..YH51,61198212-198708

NOK

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010i3YU,3YJ..YH51,52,6#,71198212-198708

17350VALVE ASSY, REED

main17350-71021i3YJ..YH52,62,71198212-198708

17351MANIFOLD, AIR INJECTION

main17306-71010i3YU..YH51,61198212-198708

main17351-71010i3YJ..YH71198212-198312

main17351-71011i3YJ..YH52,62,71198312-198708

17355NOZZLE, AIR INJECTION

main17355-71010×2i3YU,3YJ..YH51,52,6#,71198212-198708

17376GASKET, AIR TUBE, NO.1

main17376-71010i3YU..YH51,61198212-198708

17980FILTER ASSY, AIR SUCTION

main17980-71011i3YU,3YJ..YH51,52,6#,71198212-198608

main17980-71012i3YU,3YJ..YH51,6#,71198608-198708

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main17342-72010i3YU,3YJ..YH51,52,6#,71198212-198608

main17342-72011i3YU,3YJ..YH51,6#,71198608-198708

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-71010i3YU..YH51,61198212-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017908146

main90179-08146

9046728001

main90467-28001

9161140820

main91611-40820

9165140814

main91651-40814

9165140816

main91651-40816

9165140830

main91651-40830

18 parts on this diagram · 1 diagram in section
