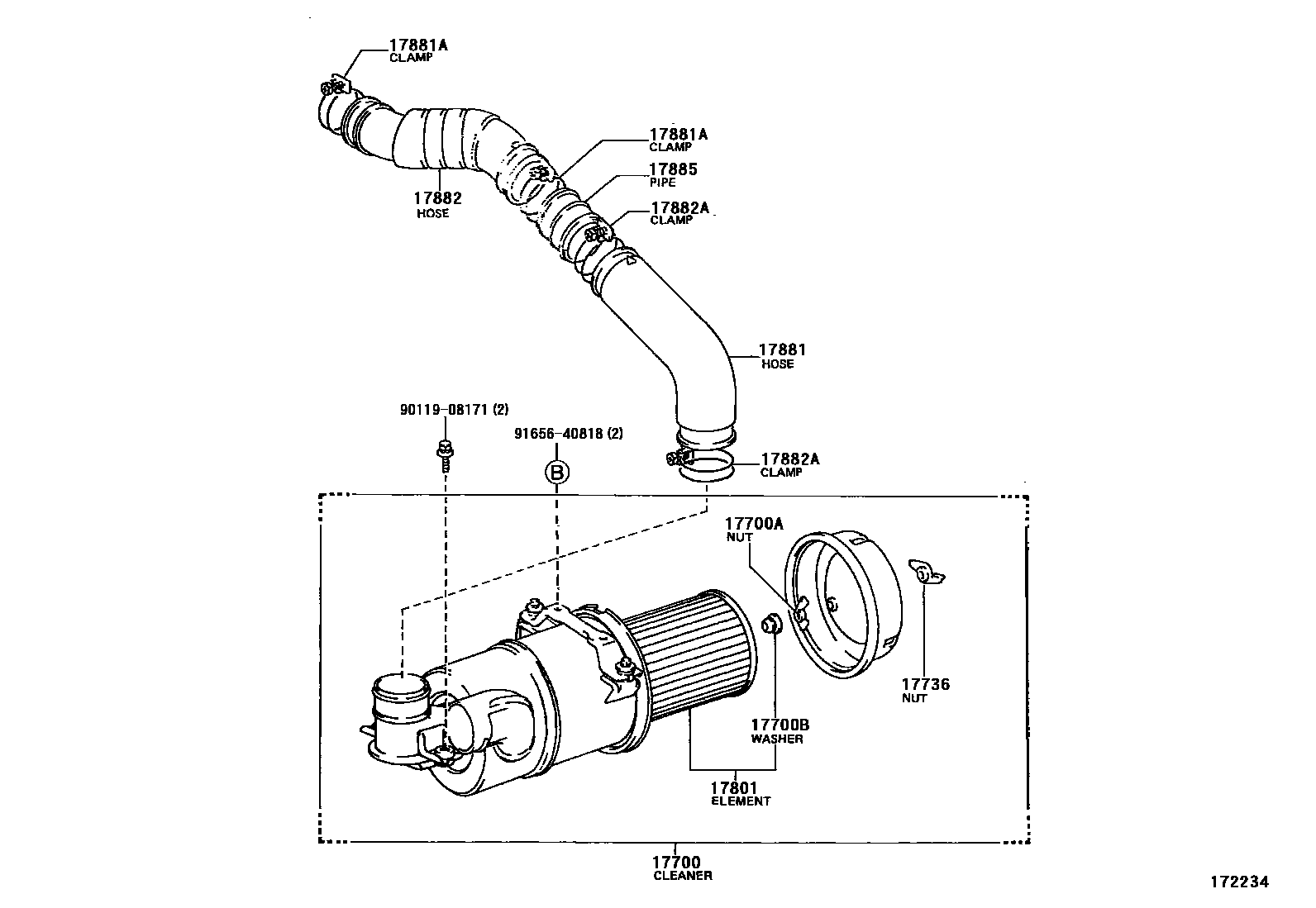

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54220iL,2L#..LH5#,6#,7#..ST198212-198708

sub17700-73120

main17700-54240iL,2L..LH60,61..WT198212-198708

main17700-72020i2Y,3Y,3YJ..YH5#,6#,71..ST198508-198609

main17700-72030i2Y,3Y#..YH5#,6#,71..ST198212-198708

W/HOT AIR INTAKE

main17700-73020i3Y..YH61..WT198212-198609

main17700-73030i3Y..YH61..WT198212-198708

W/HOT AIR INTAKE

17700ANUT, WING(FOR AIR CLEANER)

main94271-00800iL,2L#..LH5#,6#,71198212-198708

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024iL,2L#..LH5#,6#,71198212-198708

17736NUT, AIR CLEANER CASE

main90175-06003iL,2L#..LH5#,6#,71198212-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64030iL,2L#..LH5#,6#,7#198212-198708

main17801-72010i2Y,3Y#..YH5#,6#,71198212-198708

17881HOSE, AIR CLEANER, NO.1

main17349-54030i2LT..LH51198508-198708

main17881-54170iL,2L..LH5#,6#,7#..ST198212-198708

main17881-54180iL,2L..LH60,61..WT198212-198708

main17881-72010i2Y,3Y#..YH5#,6#,71..ST198212-198708

main17881-73010i3Y..YH61..WT198212-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65004i2LT..LH51198508-198708

PIPE SIDE

sub90460-65002

main90460-70001i2LT..LH51198508-198708

FLANGE SIDE

sub90467-56001

main96111-10690iL,2L..LH5#,6#,7#198212-198708

INTAKE MANIFOLD SIDE

main96111-10780iL,2L..LH5#,6#,7#198212-198708

PIPE SIDE

17882HOSE, AIR CLEANER, NO.2

main17881-74040i2Y,3Y#..YH5#,6#,71198502-198708

W/HOT AIR INTAKE

main17882-31060i2Y,3Y#..YH5#,6#,71198401-198502

W/HOT AIR INTAKE

sub17882-72040

main17882-54120iL,2L..LH50,51,60,61,7#198212-198708

main17882-54190i2L..LH56,66198608-198708

main17882-72010i2Y,3Y#..YH5#,61,71198212-198401

W/HOT AIR INTAKE

main17884-54010i2LT..LH51198508-198601

main17884-54011i2LT..LH51198601-198708

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036×2i2Y,3Y#..YH5#,6#,71198212-198708

W/HOT AIR INTAKE

main90460-75001×2i2LT..LH51198508-198601

main90460-75004i2LT..LH51198601-198708

CONNECTOR SIDE

main96111-10780×2iL,2L..LH5#,6#,7#198212-198708

17885PIPE, AIR CLEANER

main17885-54080iL,2L#..LH5#,6#,7#198212-198708

9011908171

main90119-08171

9165640818

main91656-40818

12 parts on this diagram · 4 diagrams in section
