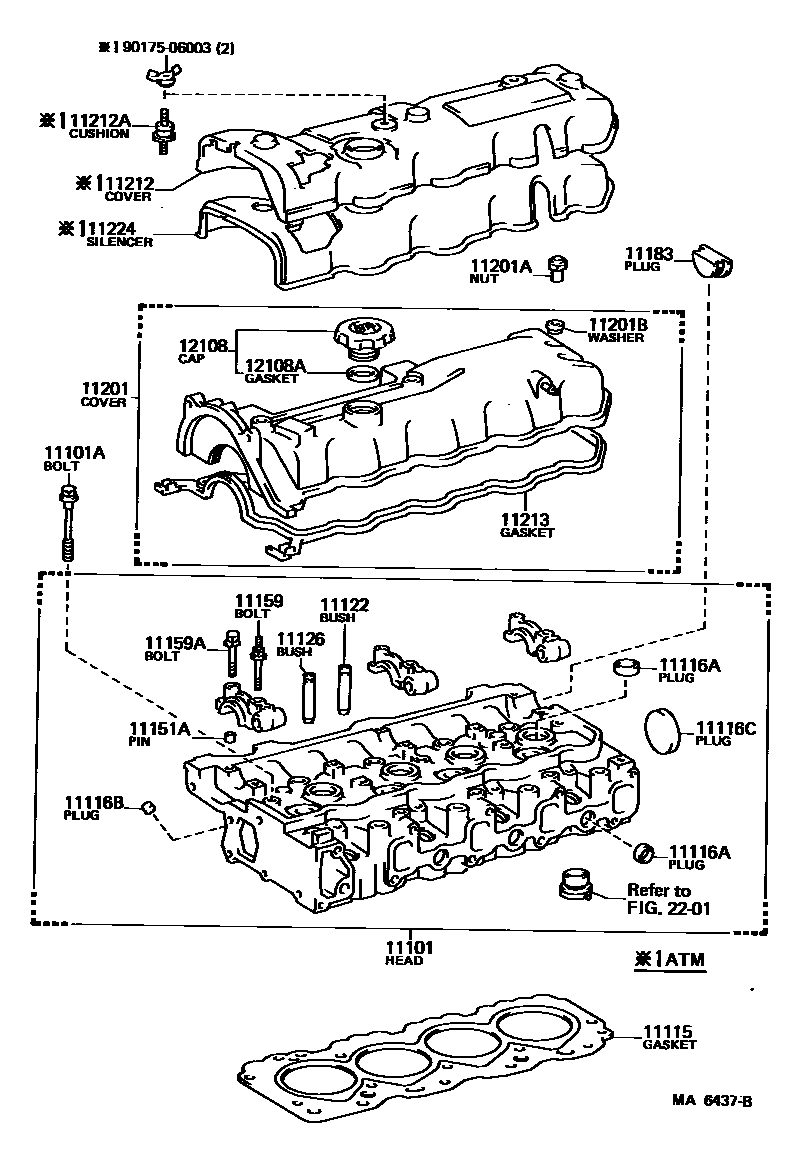

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54024iL..LH50,60,70198212-198308

main11101-54040iL..LH50,60,70198308-198508

main11101-54050i2L..LH51,56,6#,71198401-198708

main11101-54061i2LT..LH51198508-198704

sub11101-54062

main11101-54062i2LT..LH51198704-198708

main11101-71010i3YU,3YJ..YH51,52,6#,71198212-198708

main11101-71020i2Y,3Y..YH50,61,71198212-198508

sub11101-71010

sub90340-18003

main11101-73010i3YU,3YJ..YH51,6#,71198508-198708

main11101-73020i3Y..YH51,61,71198508-198708

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i2Y,3Y#..YH5#,6#,71198212-198708

main90910-02060iL,2L#..LH5#,6#,7#198212-198708

*12-1.25PX112-24

sub90910-02090

11115GASKET, CYLINDER HEAD

main11115-54011iL..LH50,60,70198212-198408

sub11115-54090

main11115-54012iL..LH50198408-198508

sub11115-54100

main11115-54020i2L#..LH51,56,6#,71198401-198708

sub11115-54021

main11115-71010i2Y,3Y#..YH5#,6#,71198212-198508

main11115-71011i2Y,3Y#..YH5#,6#,71198508-198708

sub11115-73040

11116APLUG, TIGHT, NO.1

main96411-42500iL,2L#..LH5#,6#,7#198212-198708

OD=25

11116BPLUG, TIGHT, NO.2

main96411-41200iL,2L#..LH5#,6#,7#198212-198708

OD=12

11116CPLUG, TIGHT, NO.3

main96411-45000iL,2L#..LH5#,6#,7#198212-198708

OD=50

11122BUSH, INTAKE VALVE GUIDE

main11122-54011iL,2L#..LH5#,6#,7#198212-198708

main11122-71020i2Y,3Y#..YH5#,6#,71198212-198708

main11123-54011iL,2L#..LH5#,6#,7#198212-198708

main11123-71020i2Y,3Y#..YH5#,6#,71198212-198708

11126BUSH, EXHAUST VALVE GUIDE

main11122-54011iL,2L#..LH5#,6#,7#198212-198708

main11123-54011iL,2L#..LH5#,6#,7#198212-198708

main11126-71020i2Y,3Y#..YH5#,6#,71198212-198708

main11127-71020i2Y,3Y#..YH5#,6#,71198212-198708

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001iL,2L#..LH5#,6#,7#198212-198708

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137iL,2L#..LH5#,6#,7#198212-198708

L=76.6,S=13&15

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-08191iL,2L#..LH5#,6#,7#198212-198708

*8-1.25PX55-30

11183PLUG, SEMICIRCULAR

main11183-54011iL,2L#..LH5#,6#,7#198212-198708

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-54050i2L#..LH5#,6#,71198508-198708

sub11201-54080

main11201-59045iL,2L..LH5#,6#,7#198212-198508

main11201-79035i2Y,3Y#..YH5#,6#,71198212-198708

sub11201-71011

sub11213-71020

sub90210-09001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i2Y,3Y#..YH5#,6#,71198212-198708

main90176-08014iL,2L#..LH5#,6#,7#198212-198708

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i2Y,3Y#..YH5#,6#,71198212-198708

sub90210-09019

main90210-13001iL,2L#..LH5#,6#,7#198212-198708

11212COVER, CYLINDER HEAD, NO.2

main11212-54010iL,2L..LH5#..ATM198212-198508

main11212-54020i2L..LH61,71..COM,V;2L..LH51..(4FC,5H)..(03S,06S,08S);2L..LH51..(4FC,4HC,5F)..(05S,06S,09S)198508-198708

11212ACUSHION, CYLINDER HEAD COVER

main11228-54010iL,2L..LH5#..ATM198212-198708

11213GASKET, CYLINDER HEAD COVER

main11213-54010iL..LH50,60,70198212-198304

main11213-54020i2LT..LH51198508-198702

sub11213-54030

main11213-54030i2L#..LH5#,6#,71198304-198708

main11213-71020i2Y,3Y#..YH5#,6#,71198212-198708

11224SILENCER, CYLINDER HEAD COVER

main11224-54010iL,2L..LH5#..ATM198212-198508

main11224-54020i2L..LH61,71..COM,V;2L..LH51..(4FC,5H)..(03S,06S,08S);2L..LH51..(4FC,4HC,5F)..(05S,06S,09S)198508-198708

12108CAP SUB-ASSY, OIL FILLER

main12180-13010iL..LH50,60,70198212-198306

main12180-13030i2L#..LH5#,6#,71198510-198708

sub12180-55010

main12180-61010i2Y,3Y#..YH5#,6#,71198705-198708

sub12180-70020

main12180-70010iL,2L#..LH5#,6#,7#198306-198510

sub12108-78010

main12180-71010i2Y,3Y#..YH5#,6#,71198212-198506

main12180-71011i2Y,3Y#..YH5#,6#,71198506-198705

sub12180-61010

12108AGASKET(FOR OIL FILLER CAP)

main12195-71010i2Y,3Y#..YH5#,6#,71198212-198506

sub12195-71020

main12195-71020i2Y,3Y#..YH5#,6#,71198506-198708

main90430-37140iL,2L#..LH5#,6#,7#198212-198708

2201

9017506003

main90175-06003

23 parts on this diagram · 4 diagrams in section
