ENGINE OVERHAUL GASKET KIT

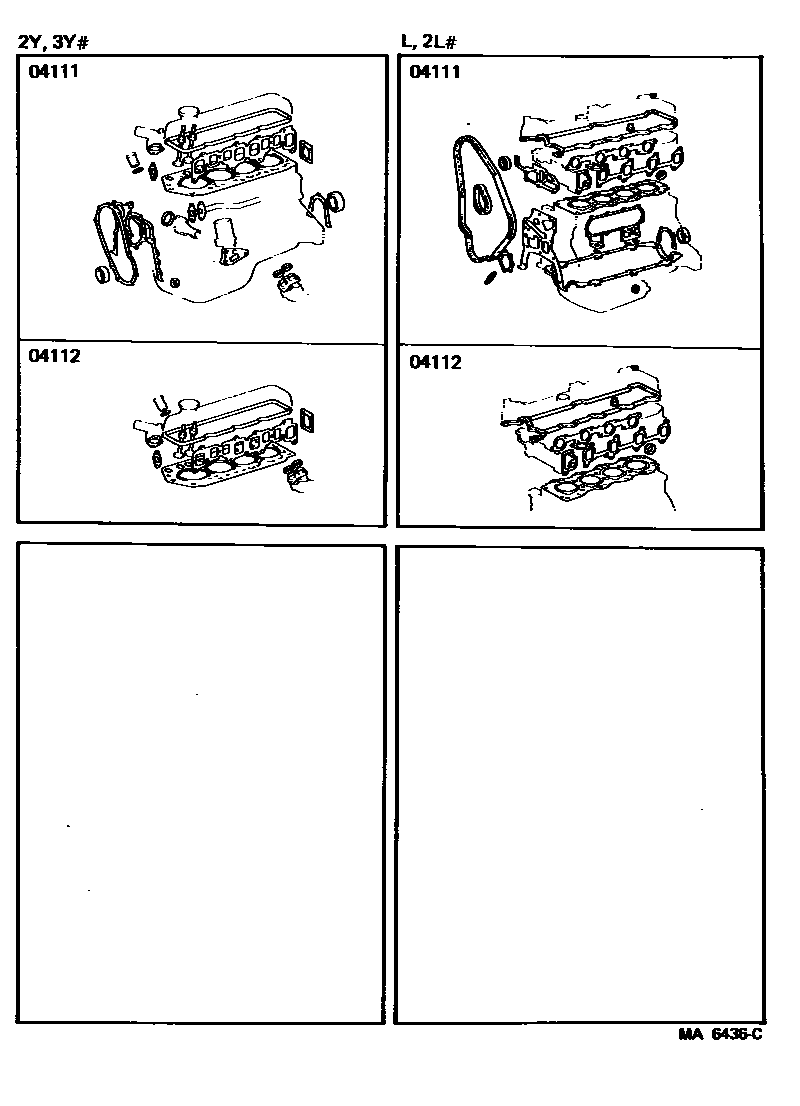

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-54034i198212-198408

main04111-54035i198408-198508

main04111-54042i198508-198708

main04111-54050i198401-198501

main04111-54051i198501-198708

main04111-72010i198212-198508

main04111-72011i198508-198704

main04111-72012i198704-198708

main04111-73021i198508-198704

main04111-73022i198704-198707

main04111-73023i198707-198708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54022i198212-198408

main04112-54023i198408-198508

main04112-54032i198508-198708

main04112-54040i198401-198501

main04112-54041i198501-198708

main04112-72010i198212-198508

main04112-72011i198508-198704

main04112-73021i198508-198704

2 parts on this diagram · 1 diagram in section
