SHORT BLOCK ASSEMBLY

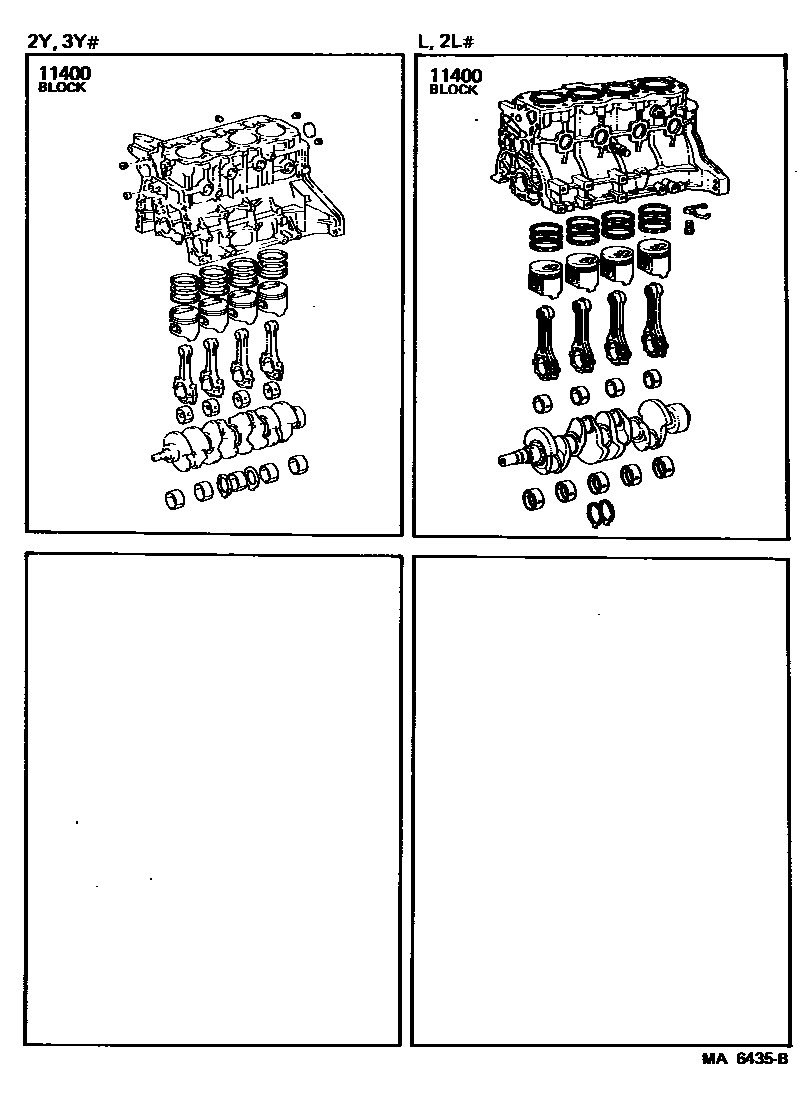

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54013i198304-198408

main11400-54014i198408-198508

main11400-54021i198212-198304

main11400-54042i198508-198708

main11400-54060i198401-198407

main11400-54061i198407-198708

main11400-72020i198212-198502

main11400-72021i198502-198708

main11400-73010i198212-198502

main11400-73011i198502-198708

1 parts on this diagram · 1 diagram in section
