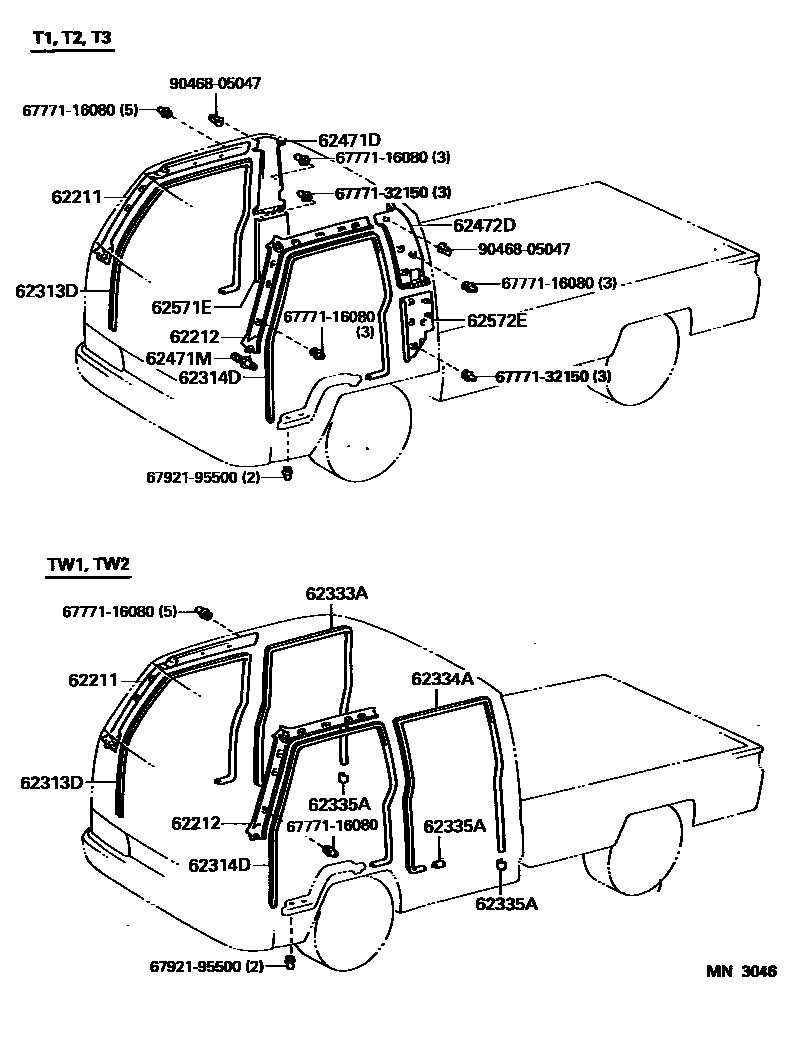

INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-25010-B0iLY101,111,151,161,YY101199505-199610

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-25010-B0iLY101,111,151,161,YY101199505-199610

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37020-B0iLY101,111,151,161,YY101199505-199610

BLUISH GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37020-B0iLY101,111,151,161,YY101199505-199610

BLUISH GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-95400-B0iLY101,111,151,161,YY101..TW1,TW2199505-199610

GRAY,TRIM1#

sub62333-25010

62334ATRIM, REAR DOOR OPENING, LH

main62333-95400-B0iLY101,111,151,161,YY101..TW1,TW2199505-199610

GRAY,TRIM1#

sub62333-25010

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-B0iLY101,111,151,161,YY101..TW1,TW2199505-199610

GRAY,TRIM1#

sub62335-92600

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-25010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LT.GRAY,TRIM1#

62471MCLIP

main90467-07043-B1iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LIGHT GRAY,TRIM1#

sub90467-07043

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-25010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LT.GRAY,TRIM1#

62571EGARNISH, REAR PILLAR, LOWER RH

main62571-25010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LT.GRAY,TRIM1#

62572EGARNISH, REAR PILLAR, LOWER LH

main62572-25010-B0iLY101,111,151,161,YY101..T1,T2,T3199505-199610

LT.GRAY,TRIM1#

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9046805047

main90468-05047

16 parts on this diagram · 1 diagram in section
