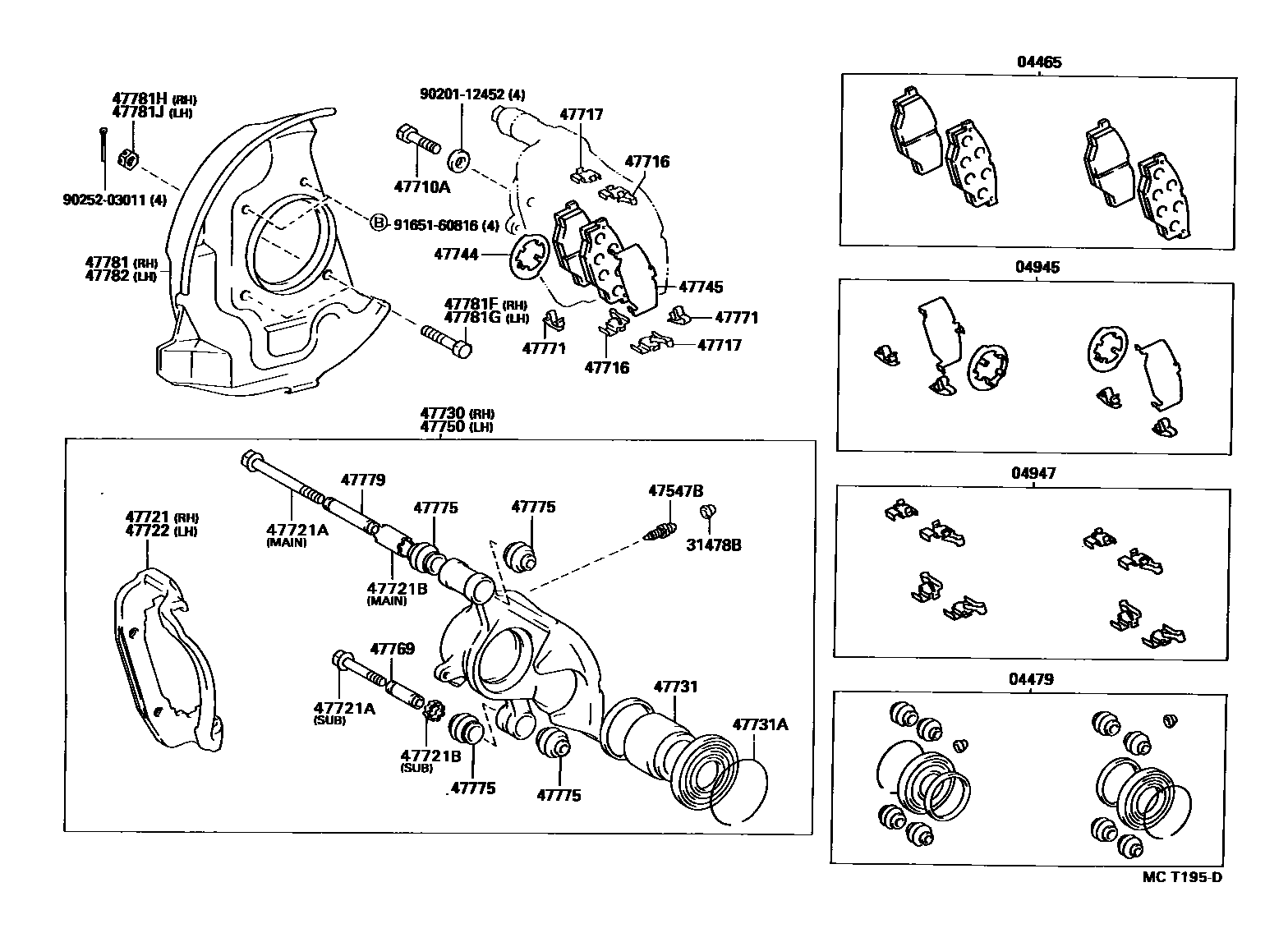

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-26020iLY101,111,YY101199505-199610

main04465-26090iLY151,161199505-199610

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26030iLY151,161199505-199610

main04479-40010iLY101,111,YY101199505-199610

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-26030iLY101,111,YY101199505-199610

main04945-26100iLY151,161199505-199610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26010iLY101,111,YY101199505-199610

main04947-26060iLY151,161199505-199610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLY101,111,151,161,YY101199505-199610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLY101,111,151,161,YY101199505-199610

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132×4iLY101,111,YY101199505-199610

main90101-12149×4iLY151,161199505-199610

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×4iLY101,111,YY101199505-199610

main47716-26050×4iLY151,161199505-199610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010×4iLY101,111,YY101199505-199610

main47717-26020×4iLY151,161199505-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLY101,111,YY101199505-199610

main47721-26070iLY151,161199505-199610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLY101,111,151,161,YY101199505-199610

main90119-10249×2iLY101,111,151,161,YY101199505-199610

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLY101,111,YY101199505-199610

SUB PIN SIDE

main90387-16005×2iLY101,111,YY101199505-199610

MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLY101,111,YY101199505-199610

main47721-26070iLY151,161199505-199610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLY101,111,YY101199505-199610

main47730-26100iLY151,161199505-199610

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iLY151,161199505-199610

main47731-40010×2iLY101,111,YY101199505-199610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-70001×2iLY101,111,YY101199505-199610

main90522-76001×2iLY151,161199505-199610

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26040×2iLY101,111,YY101199505-199610

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26020×2iLY101,111,YY101199505-199610

main47745-26030×2iLY151,161199505-199610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLY101,111,YY101199505-199610

main47750-26100iLY151,161199505-199610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLY101,111,151,161,YY101199505-199610

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26011×4iLY101,111,YY101199505-199610

main47771-26020×2iLY151,161199505-199610

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010×8iLY151,161199505-199610

main47775-40010×8iLY101,111,YY101199505-199610

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLY101,111,151,161,YY101199505-199610

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26040iLY101,111,YY101199505-199610

main47781-26051iLY151,161199505-199610

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90102-12005×2iLY101,111,YY101199505-199610

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90102-12005×2iLY101,111,YY101199505-199610

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12004×2iLY101,111,YY101199505-199608

main90171-12011×2iLY101,111,YY101199608-199610

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12004×2iLY101,111,YY101199505-199608

main90171-12011×2iLY101,111,YY101199608-199610

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26040iLY101,111,YY101199505-199610

main47782-26051iLY151,161199505-199610

9020112452

main90201-12452

9025203011

main90252-03011

9165160816

main91651-60816

32 parts on this diagram · 2 diagrams in section
