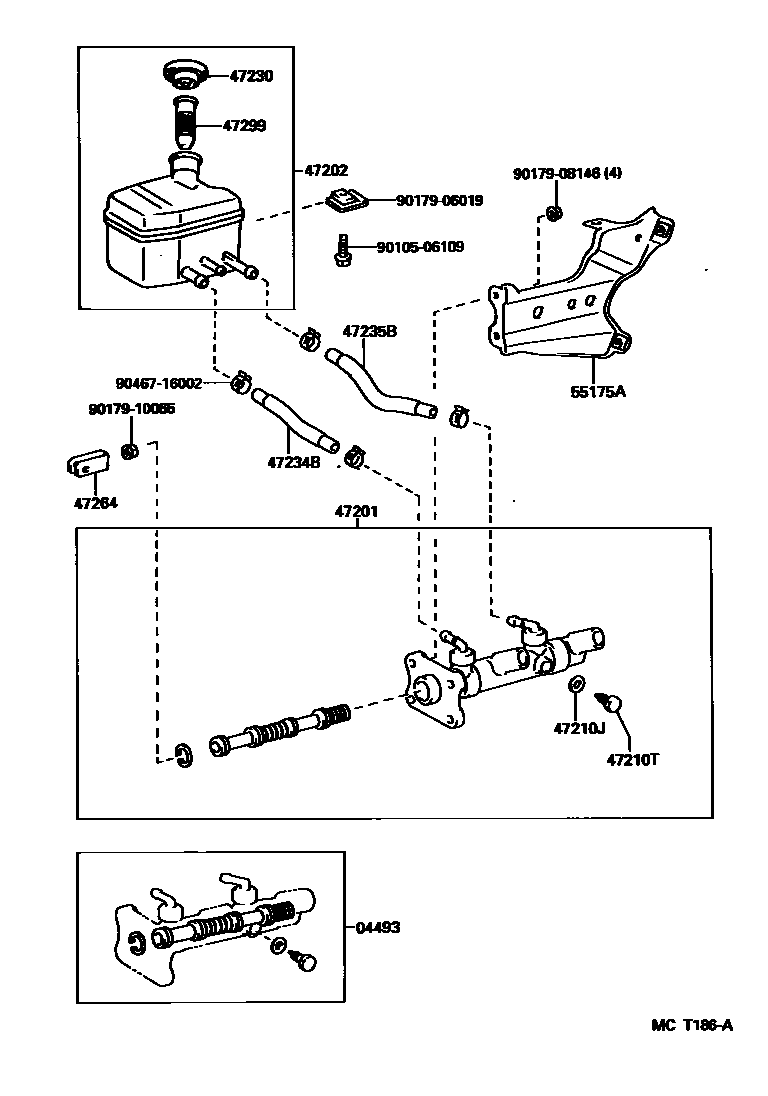

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-25060iLY101,111,YY101199505-199610

main04493-25070iLY151,161199505-199610

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25160iLY101,111,YY101199505-199610

main47201-25180iLY151,161199505-199610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37020iLY101,111,151,161,YY101..MTM199505-199610

main47220-37030iLY101,111..ATM199505-199610

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLY101,111,151,161,YY101199505-199610

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLY101,111,151,161,YY101199505-199610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iLY101,111,151,161,YY101199505-199610

47234BTUBE, RESERVOIR, NO.1

main47234-37060iLY101,111,151,161,YY101199505-199610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-25050iLY101,111,151,161,YY101199505-199610

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLY101,111,151,161,YY101199505-199610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLY101,111,151,161,YY101199505-199610

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-25020iLY151,161199505-199610

main55175-25030iLY101,111,YY101199505-199610

9010506109

main90105-06109

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046716002

main90467-16002

16 parts on this diagram · 1 diagram in section
