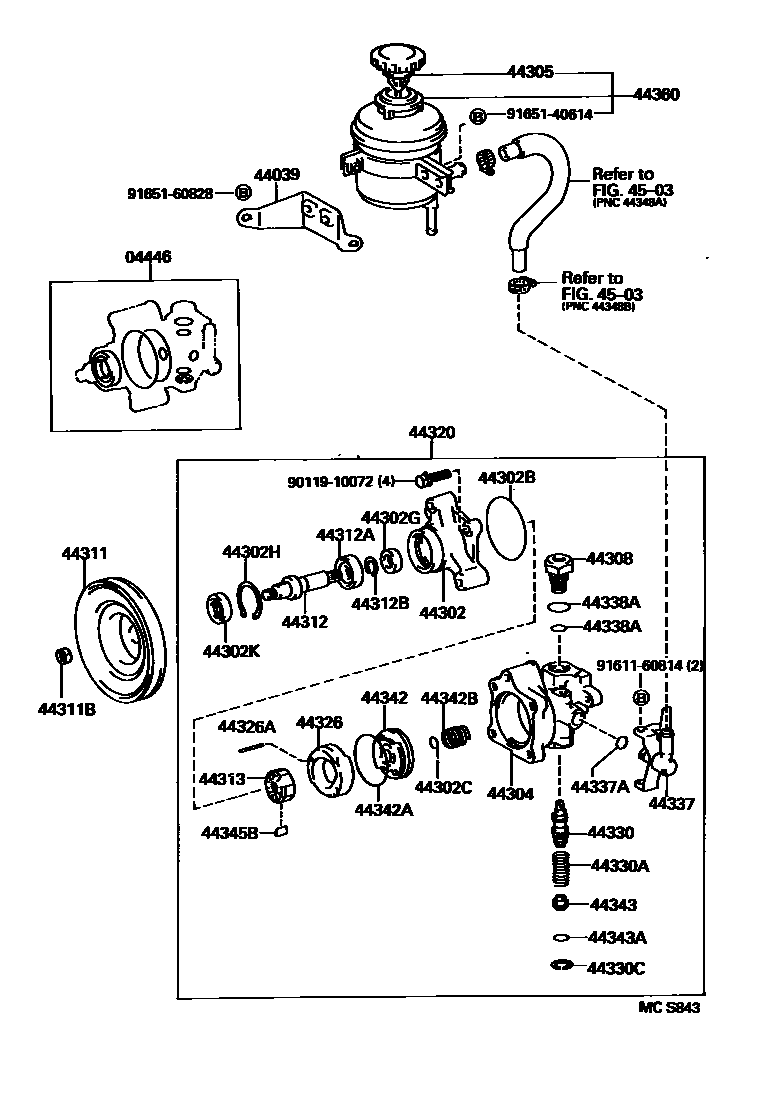

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26030iLY101,111,151,161199505-199610

main04446-30030iYY101199505-199610

44039BRACKET SUB-ASSY, OIL RESERVOIR

main44039-25010iLY101,111,151,161199505-199610

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYY101199505-199610

main44302-30110iLY101,111,151,161199505-199610

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLY101,111,151,161,YY101199505-199610

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLY101,111,151,161,YY101199505-199610

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iLY101,111,151,161199505-199610

main90311-24001iYY101199505-199610

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iYY101199505-199610

main90521-51003iLY101,111,151,161199505-199610

44302KSEAL, OIL, NO.3(FOR VANE PUMP HOUSING)

main90313-23001iLY101,111,151,161199505-199610

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28021iYY101199505-199610

main44304-30051iLY101,111,151,161199505-199610

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iYY101199505-199610

main44305-32010iLY101,111,151,161199505-199610

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26011iYY101199505-199610

main44308-30060iLY101,111,151,161199505-199610

44311PULLEY, VANE PUMP

main44311-12010iYY101199505-199610

main44311-30150iLY101,111,151,161199505-199610

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iYY101199505-199610

main90179-12022iLY101,111,151,161199505-199610

44312SHAFT, VANE PUMP

main44312-12010iYY101199505-199610

main44312-28010iLY101,111,151,161199505-199610

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iYY101199505-199610

main90363-17011iLY101,111,151,161199505-199610

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iYY101199505-199610

main90520-15005iLY101,111,151,161199505-199610

44313ROTOR, VANE PUMP

main44313-22040iLY101,111,151,161,YY101199505-199610

main44313-22050iLY101,111,151,161,YY101199505-199610

main44313-22060iLY101,111,151,161,YY101199505-199610

main44313-22070iLY101,111,151,161,YY101199505-199610

main44313-22080iLY101,111,151,161,YY101199505-199610

44320PUMP ASSY, VANE

main44320-26031iYY101199505-199610

main44320-30151iLY101,111,151,161199505-199610

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLY101,111,151,161,YY101199505-199610

main44325-12020iLY101,111,151,161,YY101199505-199610

main44325-12030iLY101,111,151,161,YY101199505-199610

main44325-12040iLY101,111,151,161,YY101199505-199610

main44325-12050iLY101,111,151,161,YY101199505-199610

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008×2iLY101,111,151,161,YY101199505-199610

44330VALVE ASSY, FLOW CONTROL

main44330-20010iYY101199505-199610

main44330-20020iYY101199505-199610

main44330-20030iYY101199505-199610

main44330-20040iYY101199505-199610

main44330-20050iYY101199505-199610

main44330-20060iYY101199505-199610

main44330-32130iLY101,111,151,161199505-199610

main44330-32140iLY101,111,151,161199505-199610

main44330-32150iLY101,111,151,161199505-199610

main44330-32160iLY101,111,151,161199505-199610

main44330-32170iLY101,111,151,161199505-199610

main44330-32180iLY101,111,151,161199505-199610

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iLY101,111,151,161,YY101199505-199610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLY101,111,151,161,YY101199505-199610

44337UNION, POWER STEERING SUCTION PORT

main44337-30010iLY101,111,151,161199505-199610

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iLY101,111,151,161199505-199610

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLY101,111,151,161,YY101199505-199610

main96711-19014iLY101,111,151,161,YY101199505-199610

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLY101,111,151,161,YY101199505-199610

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLY101,111,151,161,YY101199505-199610

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLY101,111,151,161,YY101199505-199610

44343SEAT, FLOW CONTROL SPRING

main44343-12040iLY101,111,151,161,YY101199505-199610

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLY101,111,151,161,YY101199505-199610

44345BPLATE, VANE PUMP

main44345-12010×10iLY101,111,151,161,YY101199505-199610

main44345-12020×10iLY101,111,151,161,YY101199505-199610

main44345-12030×10iLY101,111,151,161,YY101199505-199610

main44345-12040×10iLY101,111,151,161,YY101199505-199610

main44345-12050×10iLY101,111,151,161,YY101199505-199610

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-26031iYY101199505-199610

main44360-26030iLY101,111,151,161199505-199610

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011910072

main90119-10072

9161160814

main91611-60814

9165140614

main91651-40614

9165160828

main91651-60828

38 parts on this diagram · 2 diagrams in section
