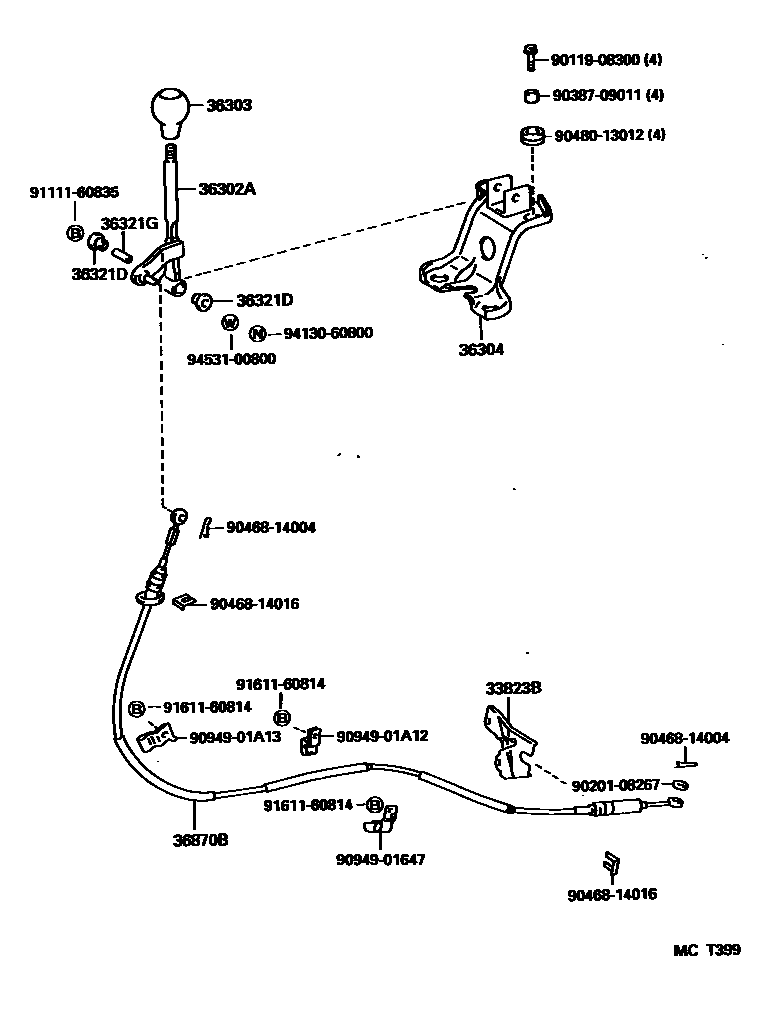

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-26020iLY151,161199505-199610

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main36302-26031iLY151,161199505-199610

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-26021-B0iLY151,161199505-199610

BLUISH GRAY,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-26031iLY151,161199505-199610

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006iLY151,161199505-199610

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08069iLY151,161199505-199610

36870BCABLE ASSY, TRANSFER CONTROL

main36870-25010iLY151,161199505-199610

9011908300

main90119-08300

9020108267

main90201-08267

9038709011

main90387-09011

9046814004

main90468-14004

9046814016

main90468-14016

9048013012

main90480-13012

9094901647

main90949-01647

9094901A12

main90949-01A12

9094901A13

main90949-01A13

9111160835

main91111-60835

9161160814

main91611-60814

9413060800

main94130-60800

9453100800

main94531-00800

20 parts on this diagram · 2 diagrams in section
