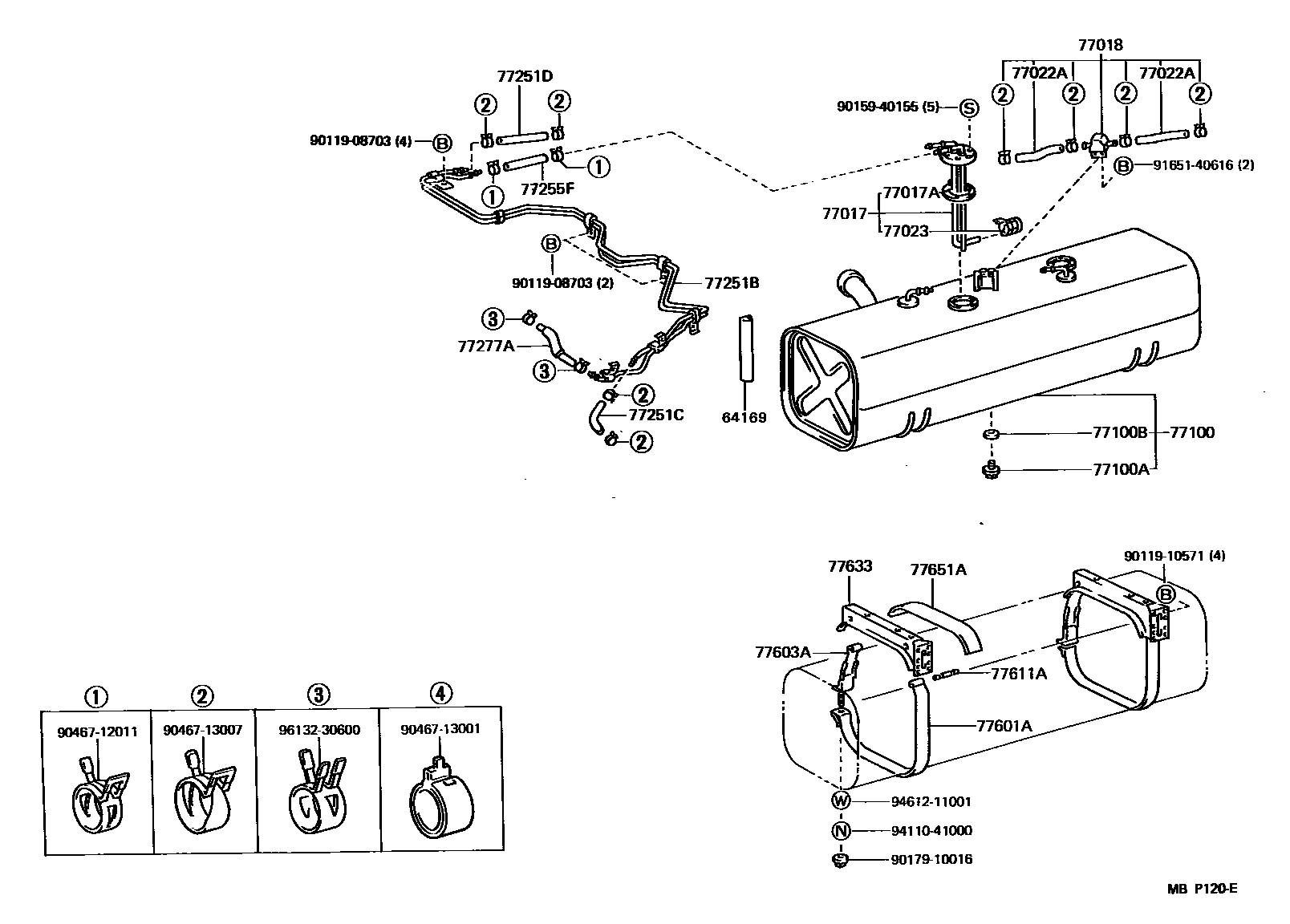

FUEL TANK & TUBE

0001 1 0003 1 0004 1

64169PROTECTOR, FUEL INLET

main64169-95A01iLH8#,9#,YH81..TW198708-199505

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26110iYH81198708-199505

main77017-26121iLH8#,9#198708-199505

77017AGASKET, FUEL TANK VENT

main77169-14020iLH8#,9#,YH81198708-199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iLH8#,9#..TW198708-199505

main77018-25120iLH8#,9#..T1,T2,T3198910-199505

main77018-26130iYH81198708-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06040iYH81198708-199505

main95333-08020iLH8#,9#,YH81198708-199505

sub95337-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYH81198708-199505

main77023-32010iLH8#,9#198708-199505

77100TANK ASSY, FUEL

main77001-26290iLH80,YH81..TS..(T1,T2,T3)198708-199505

main77001-26300iLH80..TB198708-199505

main77001-26300iYH81..T2..ST;LH80..4FC..ST198708-199505

main77001-26300iLH80,YH81..T2..IV199008-199301

main77001-26300iLH80,YH81..T2..IV199008-199301

main77001-26380iLH85..TS..(T2,T3)198710-199505

main77001-26390iLH85..TB198710-199505

main77001-26400iLH85,95..TW198710-199505

main77001-26410iLH80,90,YH81..TW198708-199505

sub77001-26420

main77001-26560iLH90..T2199109-199505

main77001-26570iLH95..T2,T3199109-199505

77100APLUG(FOR FUEL TANK)

main90105-12116iLH8#,9#,YH81198708-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH8#,9#,YH81198708-199505

77251BTUBE, FUEL MAIN

main77205-26040iLH80..T1,T2,T3198708-199505

main77205-26060iYH81198708-199505

sub77205-25170

main77205-26070iLH80,90..TW198708-199505

main77205-26090iLH85..T2,T3198710-199505

main77205-26100iLH85,95..TW198710-199505

main77205-26120iLH90..T2199109-199505

main77205-26130iLH95..T2,T3199109-199505

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-25050iLH85,95..T2,T3199402-199505

main77259-26030iYH81198708-199505

main90447-14040iLH85,95..T2,T3198710-199402

main90447-14045iLH80,90..T1,T2,T3198708-199505

main95333-08030iLH8#,9#..TW198708-199505

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06020iYH81198708-199308

sub95337-06020

main95333-08020iLH8#,9#198708-199505

sub95337-08020

main95334-06014iYH81199308-199505

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-04020iYH81198708-199505

main95333-06020iLH8#,9#198708-199505

sub95337-06020

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYH81198708-199505

main90447-12018iLH8#198708-198910

main90447-12109iLH8#,9#198808-199505

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26060iLH8#,9#,YH81198708-199505

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-26030iLH8#,9#,YH81198708-199505

77611APIN (FOR FUEL TANK BAND)

main77653-25010iLH8#,9#,YH81198708-199505

77633STAY, FUEL TANK

main77501-25090iLH8#,9#,YH81198708-199412

sub77501-25091

main77501-25091iLH8#,9#,YH81199412-199505

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iLH8#,9#,YH81198708-199505

9011908703

main90119-08703

9011910571

main90119-10571

9015940155

main90159-40155

9017910016

main90179-10016

9046712011

main90467-12011

9046713001

main90467-13001

9046713007

main90467-13007

9165140616

main91651-40616

9411041000

main94110-41000

9461211001

main94612-11001

9613230600

main96132-30600

30 parts on this diagram · 3 diagrams in section
