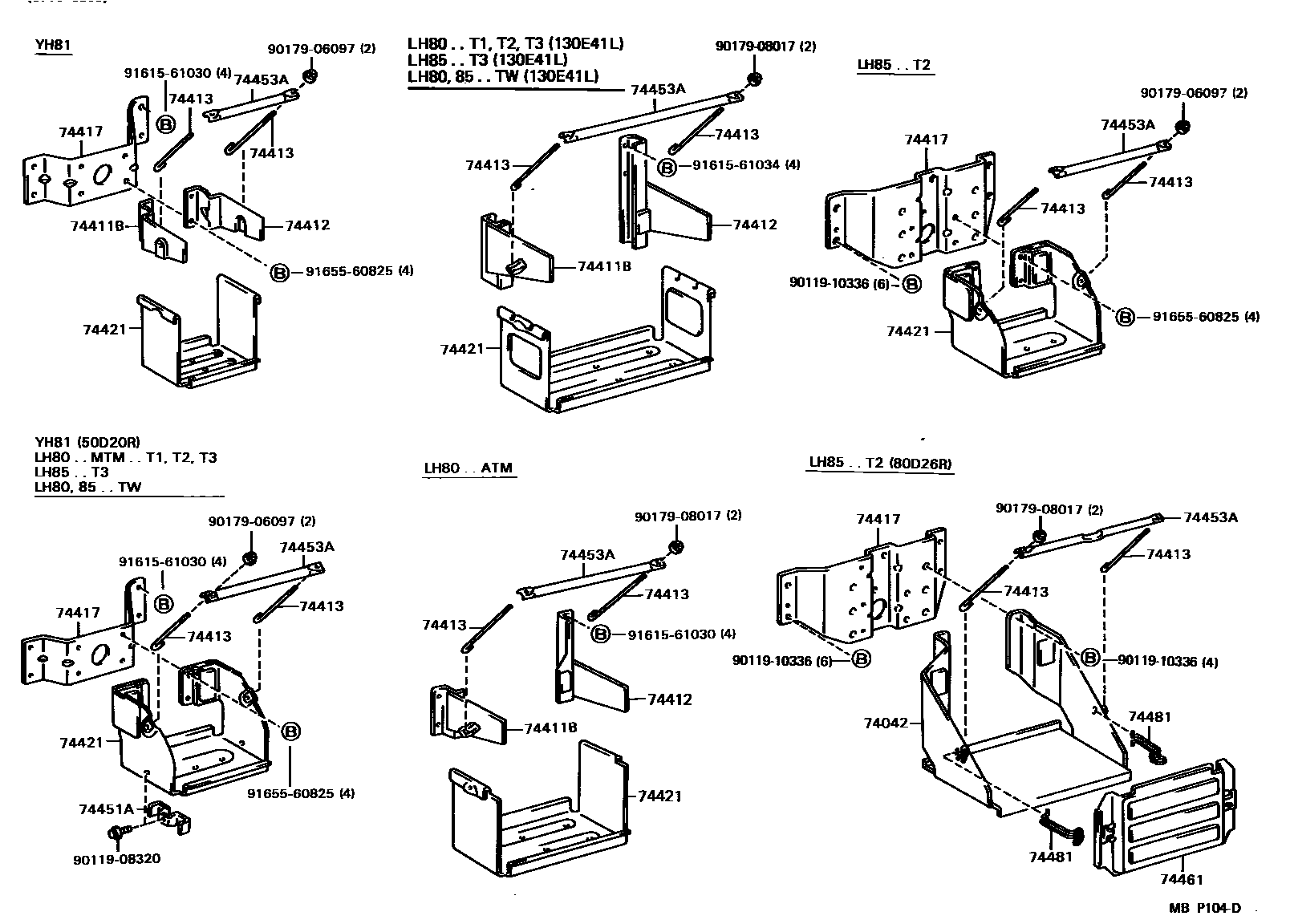

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74042BRACKET SUB-ASSY, BATTERY

main74042-26010iLH8#,9#198910-199505

74411BBRACKET, BATTERY, FRONT

main74401-26040iLH80,90..4FC198708-199505

main74401-26050iLH85..T3198808-198910

main74401-26070iLH8#..TW198708-198808

main74411-25011iYH81198708-199505

74412BRACKET, BATTERY, REAR

main74402-26040iLH80,90..4FC198708-199505

main74402-26050iLH85..T3,TW198808-198910

main74412-25011iYH81198708-199505

74413BOLT, BATTERY CLAMP

main74451-25020×2iLH8#,9#,YH81..5F198708-199505

main74451-36070×2iLH8#,9#..5F198910-199505

74417BRACKET, BATTERY CARRIER

main74417-26050iLH85,95..T3;LH80,90,YH81..5F..(T1,T2,T3)198708-199505

main74417-26080iLH85,95..T2198710-199505

main74417-26090iLH85,95..T3;LH80,90..T1,T2,T3198910-199505

main74417-26100iLH8#,9#,YH81..TW198808-199505

sub74417-26101

74421HANGER, BATTERY

main74421-25020iYH81198708-198710

main74421-26010iYH81198708-199505

main74421-26020iYH81198710-199505

main74421-36041iLH80;LH85..T3,TW198708-198808

main74421-36091iLH80,90..4FC198708-199505

74451APLATE, BATTERY SET

main74451-25050×2iYH81198708-198910

74453ABAR, BATTERY SET PLATE

main74453-25080iYH81198708-199505

main74453-25090iYH81198708-199505

main74453-25100iLH80,90..4FC198708-199505

main74453-36060iLH85..T3,TW198808-198910

main74453-36070iLH85..T2198710-198808

sub74453-37130

74461COVER, BATTERY

main74461-36100iLH85..T2198710-198910

74481CLAMP, BATTERY HOLD DOWN

main74481-36030×2iLH85..T2198710-198910

9011908320

main90119-08320

9011910336

main90119-10336

9017906097

main90179-06097

9017908017

main90179-08017

9161561030

main91615-61030

9161561034

main91615-61034

9165560825

main91655-60825

17 parts on this diagram · 4 diagrams in section
