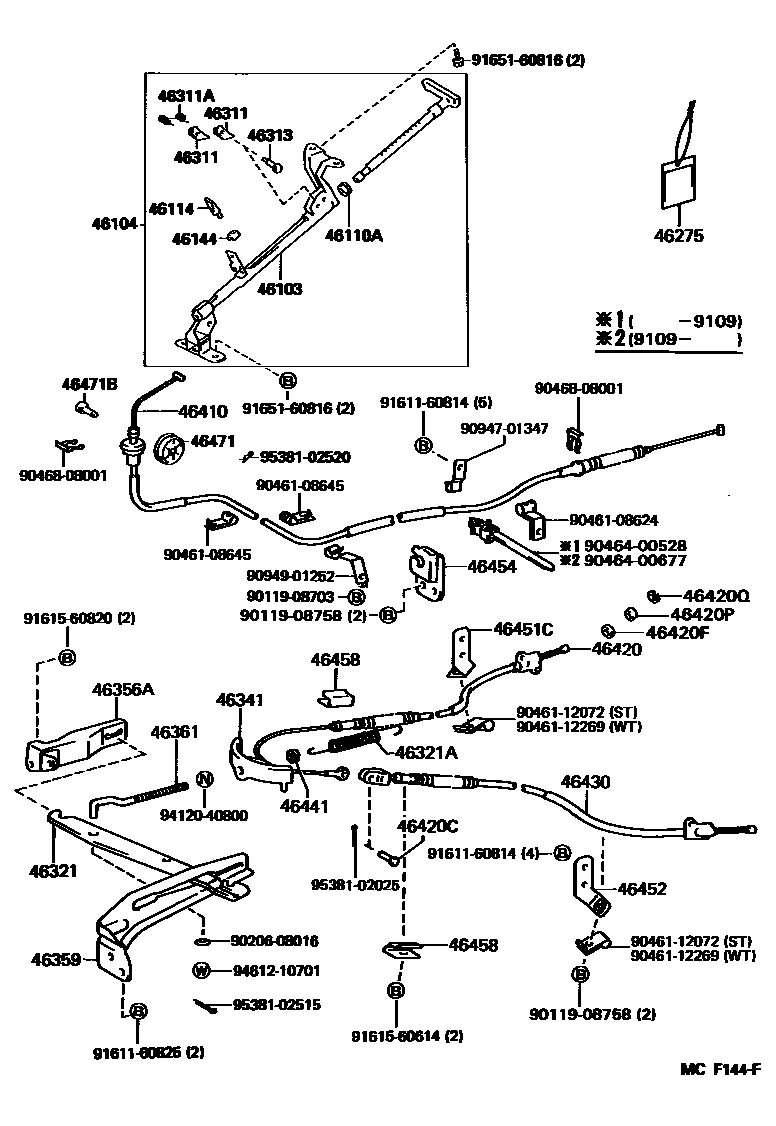

PARKING BRAKE & CABLE

0001 1 0002 1 0005 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26120iLH8#,YH81198708-199505

main46103-26180iLH85,95..T3,TW198910-199505

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-26080iLH8#,YH81198708-199109

main46104-26170iLH85,95..T2;LH80,90,YH81199109-199505

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLH8#,9#,YH81198708-199505

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH8#,9#,YH81198708-199505

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLH8#,9#,YH81198708-199505

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLH8#,9#,YH81198708-199505

46311PAWL, PARKING BRAKE

main46311-26010iLH8#,9#,YH81198708-199505

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLH8#,9#,YH81198708-199505

46313PIN, PARKING BRAKE PAWL

main46313-40010iLH8#,9#,YH81198708-199505

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26011iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-18058iLH85;LH80,YH81..T2..ST198708-199505

main90506-20055iLH95;LH90..T2..ST199109-199505

main90507-20015iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

46341EQUALIZER, PARKING BRAKE

main46341-26010iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

main46341-35020iLH85,95;LH80,90,YH81..T2..ST198708-199505

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26080iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

main46356-26090iLH85,95;LH80,90,YH81..T2..ST198708-199505

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-26060iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

46361ROD, PARKING BRAKE PULL

main46361-26020iLH80,YH81..WT;LH80,YH81..T1,T3,TW198708-199505

main46361-26040iLH90..TW;LH90..WT199109-199505

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26240iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

main46410-26250iLH85;LH80,YH81..T2..ST198708-198910

main46410-26250iLH8#,9#,YH81..T2..ST198910-199505

main46410-26370iLH85,95..T3,TW198910-199505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26140iLH80,90,YH81..T1,T3,TW198708-199505

main46420-26200iLH85..T3,TW198710-198805

sub46420-26201

main46420-26201iLH85..T3,TW198805-199505

main46420-26210iLH8#,YH81..T2..ST198708-198805

sub46420-26211

main46420-26211iLH8#,YH81..T2..ST198805-199505

main46420-26230iLH80,90,YH81..WT198708-199505

main46420-26370iLH95..T3,TW199109-199505

main46420-26380iLH9#..T2..ST199109-199505

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

main90240-08042iLH85,95;LH80,90,YH81..T2..ST198710-199505

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iLH80,90,YH81..WT198708-199505

46420PSPACER, PARKING BRAKE

main90560-08014iLH80,90,YH81..WT198708-199505

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iLH80,90,YH81..WT198708-199505

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26140iLH80,90,YH81..T1,T3,TW198708-199505

main46430-26151iLH80,90,YH81..WT198708-199505

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iLH85,95;LH80,90,YH81..T2..ST198708-199505

main90179-08020iLH80,YH81..WT;LH80,YH81..T1,T3,TW198708-199505

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26050iLH80,90,YH81..T1,T3,TW198708-199505

main46451-26090iLH80,YH81..WT198708-199010

sub46451-26091

main46451-26091iLH80,90,YH81..WT199010-199505

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26020iLH80,90,YH81..T1,T3,TW198708-199505

main46452-26030iLH80,90,YH81..WT198708-199505

46454BRACKET, CABLE RETAINER, FRONT

main46454-26040iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

main46454-26051iLH85,95;LH80,90,YH81..T2..ST198708-199505

46458RETAINER, CABLE

main46458-28010iLH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW198708-199505

46471PULLEY, WIRE

main46471-20010iLH8#,9#,YH81198708-199505

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLH8#,9#,YH81198708-199505

9011908703

main90119-08703

9011908758

main90119-08758

9020608016

main90206-08016

9046108624

main90461-08624

9046108645

main90461-08645

9046112072

main90461-12072

9046112269

main90461-12269

9046400528

main90464-00528

9046400677

main90464-00677

9046808001

main90468-08001

9094701347

main90947-01347

9094901252

main90949-01252

9161160814

main91611-60814

9161160825

main91611-60825

9161560614

main91615-60614

9161560820

main91615-60820

9165160816

main91651-60816

9412040800

main94120-40800

9461210701

main94612-10701

9538102025

main95381-02025

9538102515

main95381-02515

9538102520

main95381-02520

51 parts on this diagram · 3 diagrams in section
