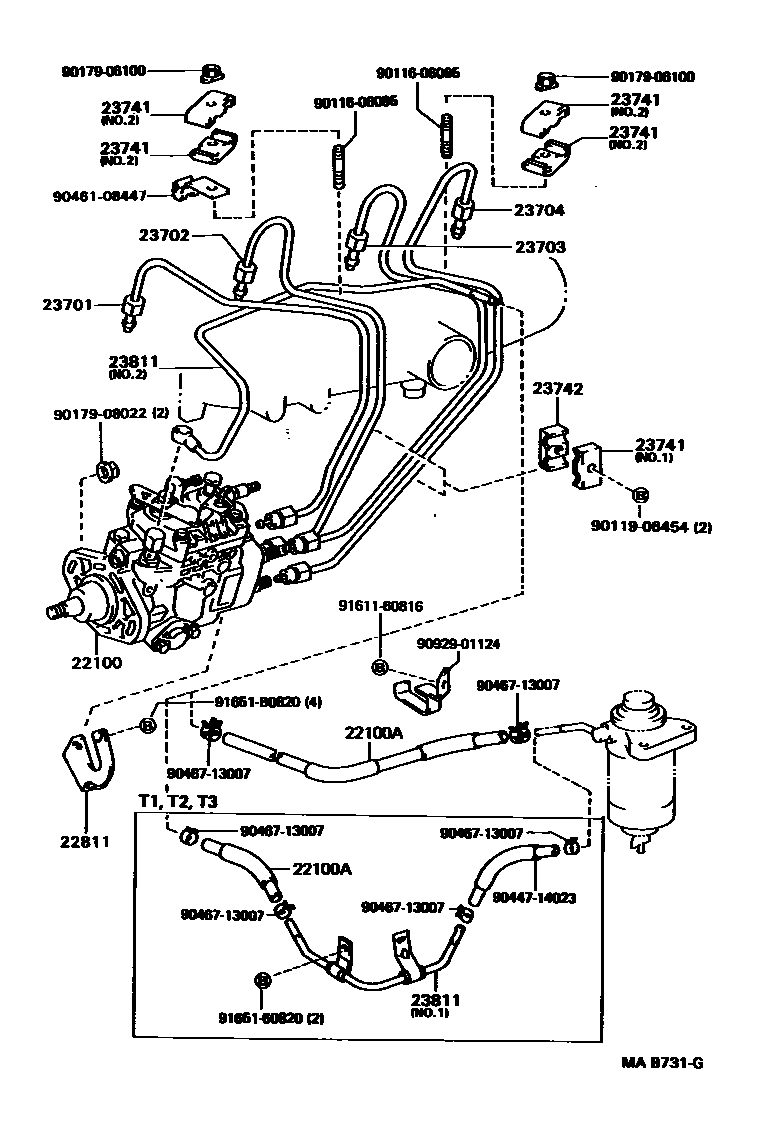

INJECTION PUMP ASSEMBLY

0001 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54311i2L..LH8#..5F198708-198910

sub22100-54341

main22100-54371i2L..LH80..4FC198708-198808

sub22100-54381

main22100-54730i2L..LH80..5F198808-199505

main22100-54740i2L..LH80,90..4FC198808-199505

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14040i2L..LH8#..TW198708-198910

main90447-14045i2L..LH85..T2,T3198708-198910

main90447-14059i2L..LH8#,9#..T1,T2,T3198808-199505

main90447-14060i2L..LH8#,9#..TW198808-199505

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L..LH8#198708-198808

sub22811-54041

main22811-54041i2L..LH8#,9#198808-199505

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2L..LH85198903-198910

main23701-54082i2L..LH8#198708-198903

sub23701-54072

main23701-54110i2L..LH80198808-198908

sub23701-54140

main23701-54140i2L..LH80198908-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2L..LH85198903-198910

main23702-54081i2L..LH8#198708-198903

sub23702-54071

main23702-54110i2L..LH80198808-198908

sub23702-54140

main23702-54140i2L..LH80198908-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LH85198708-198910

main23703-54090i2L..LH80198808-198903

sub23703-54091

main23703-54091i2L..LH80198903-198908

sub23703-54100

main23703-54100i2L..LH8#,9#198908-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LH8#198708-198910

main23704-54090i2L..LH80198808-198908

sub23704-54100

main23704-54100i2L..LH8#,9#198908-199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L..LH8#,9#198708-199505

main23741-56010i2L..LH8#,9#198708-199505

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L..LH8#,9#198708-199505

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-54030i2L..LH80..T1,T2,T3198708-198808

NO.1

main23801-54040i2L..LH85..T2,T3198710-198910

NO.1

main23801-54050i2L..LH80..T1,T2,T3198808-199505

NO.1

main23811-54140i2L..LH8#198708-198910

NO.2

main23811-54160i2L..LH80198808-199505

NO.2

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9044714023

main90447-14023

9046108447

main90461-08447

9046713007

main90467-13007

9092901124

main90929-01124

9161160816

main91611-60816

9165160820

main91651-60820

91651B0820

main91651-B0820

21 parts on this diagram · 2 diagrams in section
